Part Lookup Tool

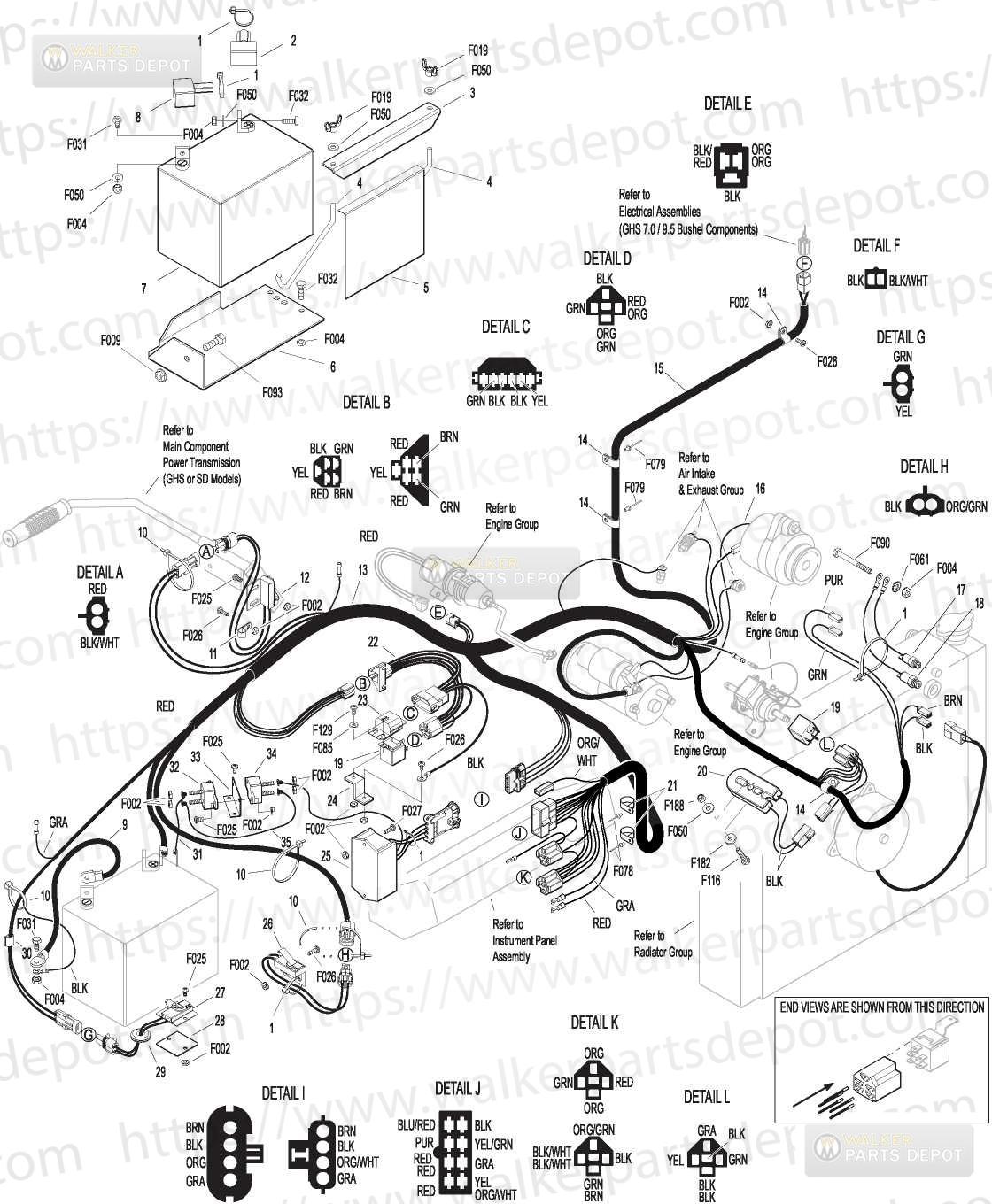

PARTS > MD MANUALS > 2003-05-12, 7000-5, Serial 60192-72867 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5975-1	Cable Tie 18x334	$0.34	Add to Cart
2	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
3	5844	Battery HoldDown Bar	$11.42	Add to Cart
4	5839	Hook Bolt	$9.35	Add to Cart
5	6392	Battery Protector Plate
6	7390-1	Battery Pan	$33.35	Add to Cart
7	7910	Battery (12V U1-SP30, Dry)
8	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
9	6923	Battery Cable	$13.09	Add to Cart
10	5975-3	Cable Tie 50x7	$0.36	Add to Cart
11	5833	Cable Clamp 14	$1.30	Add to Cart
12	5942-4	Safety Switch NO	$63.17	Add to Cart
13	7940-9	NR Wire HarnessDD01	$252.63	Add to Cart
14	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
15	7944	70 Wire Harness	$24.20	Add to Cart
	8950	NR 95100 Wire Harness	$23.47	Add to Cart
16	7938	Lead Wire Battery Charge Alternator to Starter	$7.42	Add to Cart
17	7306-10	Switch 235Deg1418NPT	$64.18	Add to Cart
18	7306-11	Switch 205Deg3818NPT	$66.32	Add to Cart
19	6941	Relay Switch 30/40 Amp
20	7433	Resistor, Ceramic / .4 OHM
21	7833	Cable Clamp 78x14	$2.72	Add to Cart
22	7948-2	Time Delay Harness DDG	$38.02	Add to Cart
23	7948-1	Time Delay Module
24	7672	Mount Bracket	$5.04	Add to Cart
25	7428-1	Fan Control Module
26	5942-5	Safety Switch NO	$61.24	Add to Cart
27	5941-5	Safety Switch NO	$72.28	Add to Cart
28	7203-6	Riser Plate Seat Switch	$4.87	Add to Cart
29	5977-6	Grommet 1x114	$1.26	Add to Cart
30	5975-5	Wire ClipSelfMount	$1.30	Add to Cart
31	7943	Battery Cable	$8.76	Add to Cart
32	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
33	7857-10	Breaker Mount Bracket	$10.78	Add to Cart
34	7941	Circuit Breaker 40amp Auto ResetSealed	$15.10	Add to Cart
35	7940-5	Circuit Breaker Jumper	$6.30	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F078	A/A64D Aluminum Pop Rivet
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F090	1420x212 Hex Bolt	$1.30	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
