Part Lookup Tool

PARTS > MW MANUALS > 2003-11-01, 9000, Serial 62821-CURRENT > Electrical Assembly:

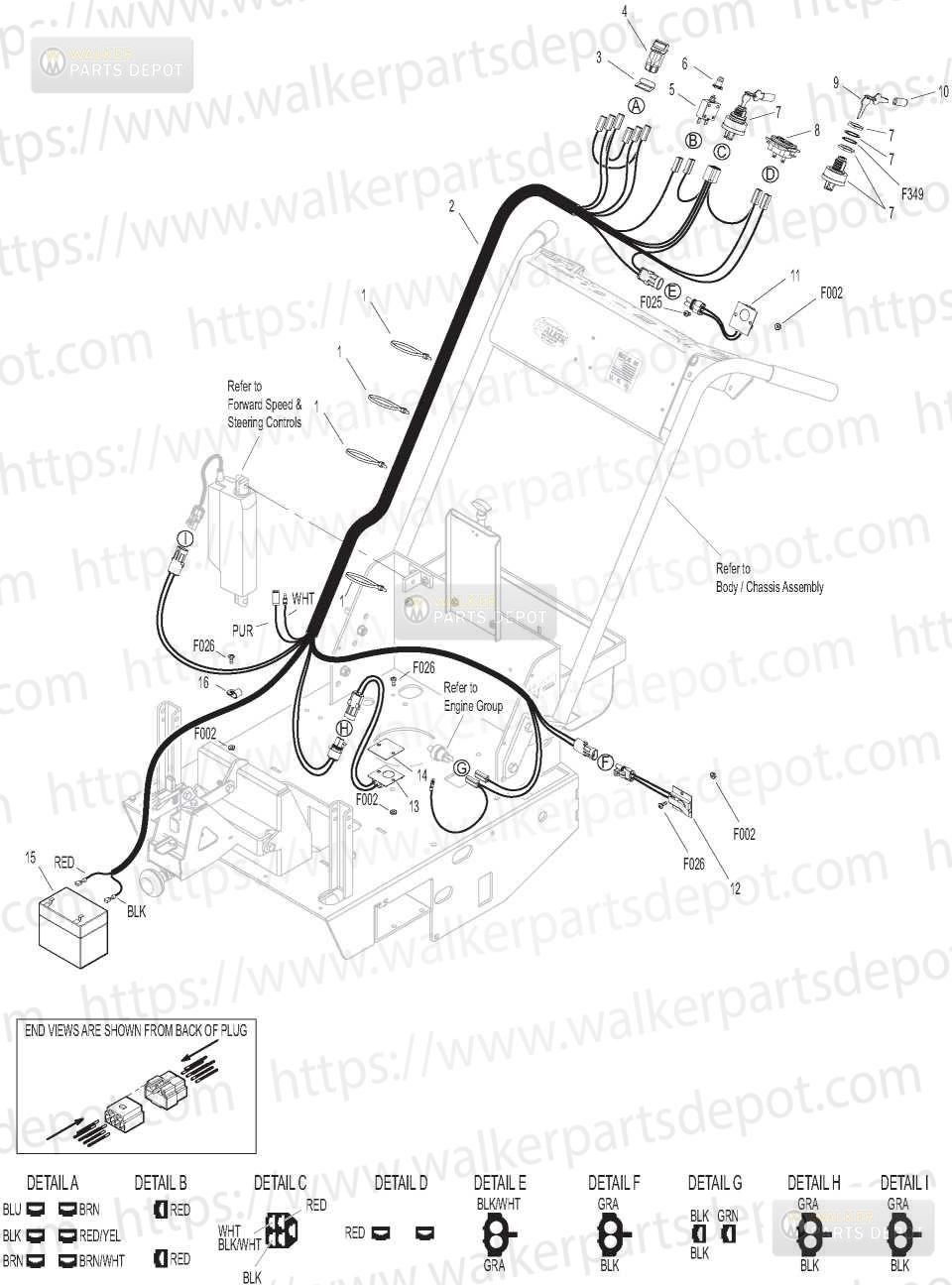

Diagram #	Part #	Description	Price	Add to Cart
1	5975-3	Cable Tie 50x7	$0.36	Add to Cart
2	9940	Wire Harness	$49.50	Add to Cart
3	9941-2	NR FSC Thumb Guard	$5.95	Add to Cart
4	9941-1	FSC Switch	$41.89	Add to Cart
5	7941-2	Circuit Breaker10AMP	$9.88	Add to Cart
6	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
7	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
8	8990-1	Hourmeter Global	$25.89	Add to Cart
9	8960-2	Ignition Key (1 Set)
10	7854	Plastic TipRed	$0.50	Add to Cart
11	9942	Safety Switch NC	$63.17	Add to Cart
12	9943	PTO Safety Switch NO	$74.07	Add to Cart
13	9944	Safety Switch Ntrl NC	$76.44	Add to Cart
14	7203-6	Riser Plate Seat Switch	$4.87	Add to Cart
15	9910	Battery 12V5AMP SLA	$82.24	Add to Cart
16	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
