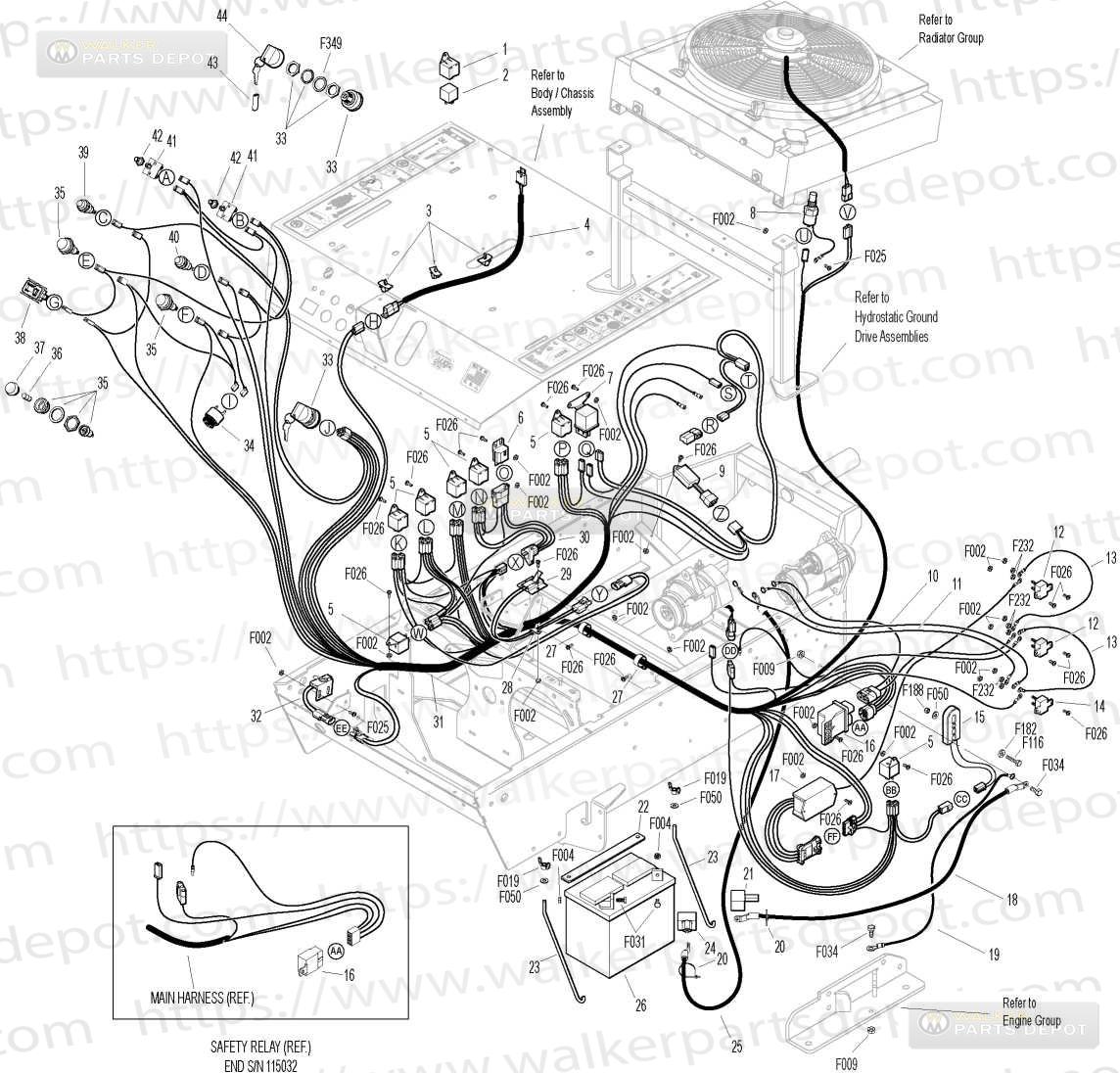

PARTS > MH MANUALS > 2011-05-23, 2000-5, Serial 112057-141634 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6941-7	Relay Mount	$3.34	Add to Cart
2	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
3	6105-3	Harness Clip	$2.88	Add to Cart
4	2940-4	NR Seat Switch Harness	$13.64	Add to Cart
5	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
6	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
7	NS	Fuel Solenoid Assist Relay (Yanmar P/N 119650-77910)
8	7306-11	Switch 205Deg3818NPT	$66.32	Add to Cart
9	NS	Timer (Yanmar P/N 129211-77920)
10	2940-10	Starter Wire 10	$5.66	Add to Cart
11	2940-11	Alternator Wire	$6.41	Add to Cart
12	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
13	8440-3	Jumper Wire	$7.52	Add to Cart
14	7941	Circuit Breaker 40amp Auto ResetSealed	$15.10	Add to Cart
15	7433	Resistor, Ceramic / .4 OHM
16	NS	Safety Relay (Yanmar P/N 119247-77100 End S/N 115032) (Yanmar P/N 119802-77200 Start S/N 115033)
17	7428-2	Fan Cntrl Module WP Plug	$200.97	Add to Cart
18	2940-3	Battery Cable 14	$20.87	Add to Cart
19	2940-9	Ground Wire 8	$6.77	Add to Cart
20	5975-1	Cable Tie 18x334	$0.34	Add to Cart
21	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
22	5844	Battery HoldDown Bar	$11.42	Add to Cart
23	5839	Hook Bolt	$9.35	Add to Cart
24	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
25	2940-2	Battery Cable 22	$25.54	Add to Cart
26	NS	Battery (12V/340CCA/Wet)
27	7833-2	Cable Clamp 1x14	$2.84	Add to Cart
28	5833	Cable Clamp 14	$1.30	Add to Cart
29	5941-2	Safety Switch NO	$88.28	Add to Cart
30	7948-2	Time Delay Harness DDG	$38.02	Add to Cart
31	2940-8	Wire Harness	$204.44	Add to Cart
	2940-14	Wire HarnessMBSY	$239.40	Add to Cart
32	5942-4	Safety Switch NO	$63.17	Add to Cart
33	7960-2	NR Ignition Switch WKeys MBSY	$35.77	Add to Cart
34	8536-2	Warning Horn Assembly	$26.27	Add to Cart
35	8996-2	Red Indicator Light Assembly (Includes Items # 36 & 37)
36	8996-3	NR Indicator Bulb 89962	$7.26	Add to Cart
37	8996-4	Red Indicator Lens	$10.88	Add to Cart
38	8990-1	Hourmeter Global	$25.89	Add to Cart
39	8996-8	Glow Plug Lt Assy Green	$17.18	Add to Cart
40	8996-7	Charging Amp Lt Assy Red	$17.18	Add to Cart
41	7941-2	Circuit Breaker10AMP	$9.88	Add to Cart
42	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
43	7854	Plastic TipRed	$0.50	Add to Cart
44	8960-3	Key Set WUmbrella	$14.99	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
