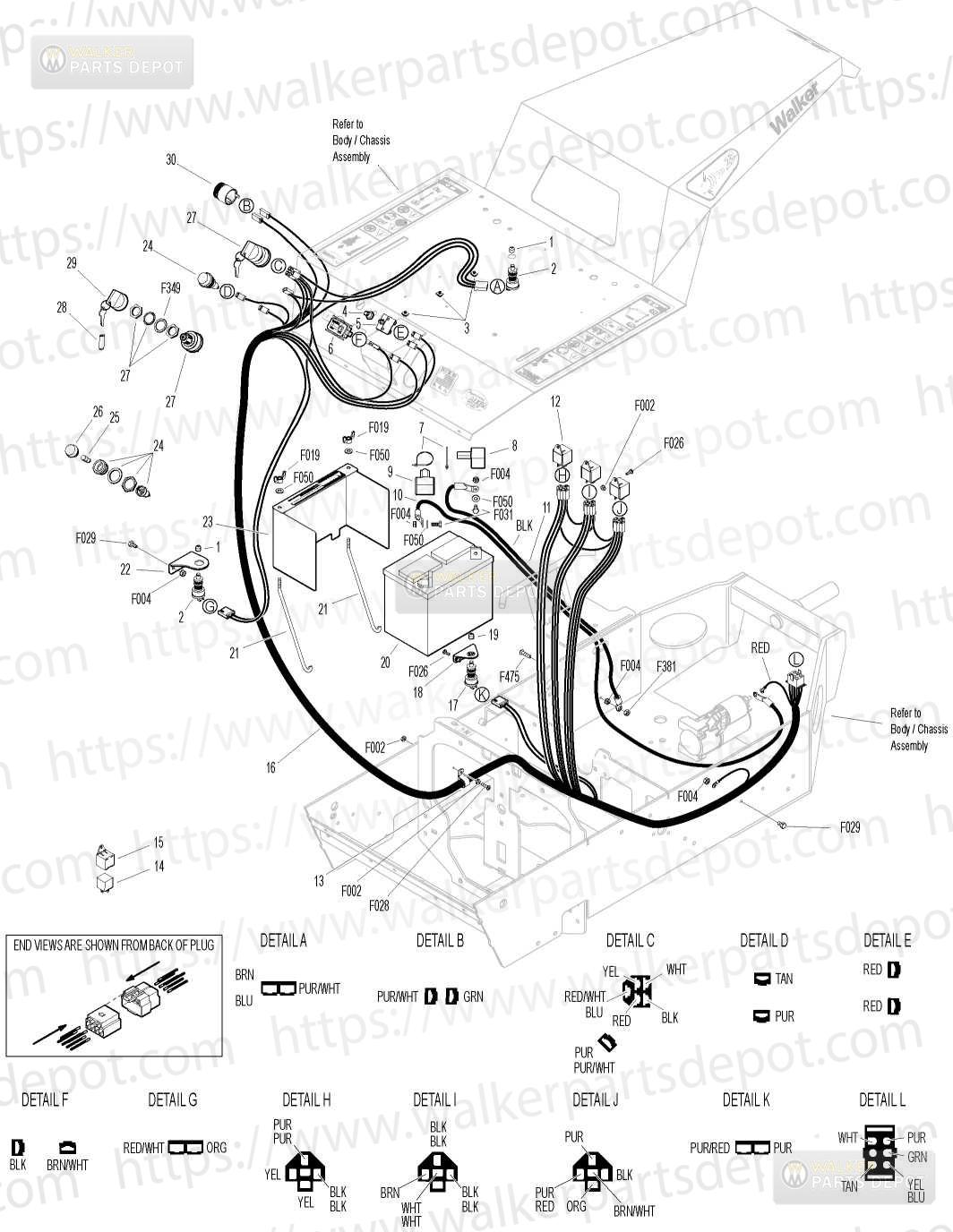

PARTS > MB MANUALS > 2012-04-20, 4000-6, Serial 116942-124997 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5942-1	Switch Boot Fits PN 5942	$1.74	Add to Cart
2	5942	Safety Switch NO	$20.50	Add to Cart
3	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
4	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
5	7941-6	Circuit Breaker (15AMP)
6	8990-1	Hourmeter Global	$25.89	Add to Cart
7	5975-1	Cable Tie 18x334	$0.34	Add to Cart
8	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
9	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
10	4940-6	Battery Cable 33	$14.83	Add to Cart
11	6923	Battery Cable	$13.09	Add to Cart
12	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
13	5835	Cable Clamp 34	$4.13	Add to Cart
14	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
15	6941-7	Relay Mount	$3.34	Add to Cart
16	4940-9	Wire Harness	$236.04	Add to Cart
17	5941	Safety Switch NC	$26.64	Add to Cart
18	4359-3	Switch MountClutch	$12.39	Add to Cart
19	5941-1	Switch Boot Fits PN 5941	$2.04	Add to Cart
20	NS	Battery (12V/300 CA/Wet/SP35)
21	5839	Hook Bolt	$9.35	Add to Cart
22	4024-12	NR Switch Mount07	$8.76	Add to Cart
23	4910-4	NR Battery Cover	$36.87	Add to Cart
24	8996-10	Amber Indicator Light Asy	$24.05	Add to Cart
25	8996-3	NR Indicator Bulb 89962	$7.26	Add to Cart
26	8996-6	Amber Indicator Lens	$6.10	Add to Cart
27	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
28	7854	Plastic TipRed	$0.50	Add to Cart
29	8960-3	Key Set WUmbrella	$14.99	Add to Cart
30	8536	Warning Horn	$24.07	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F381	1420 Hex Nut	$0.18	Add to Cart
	F475	1420x1 PFH Screw	$0.34	Add to Cart
