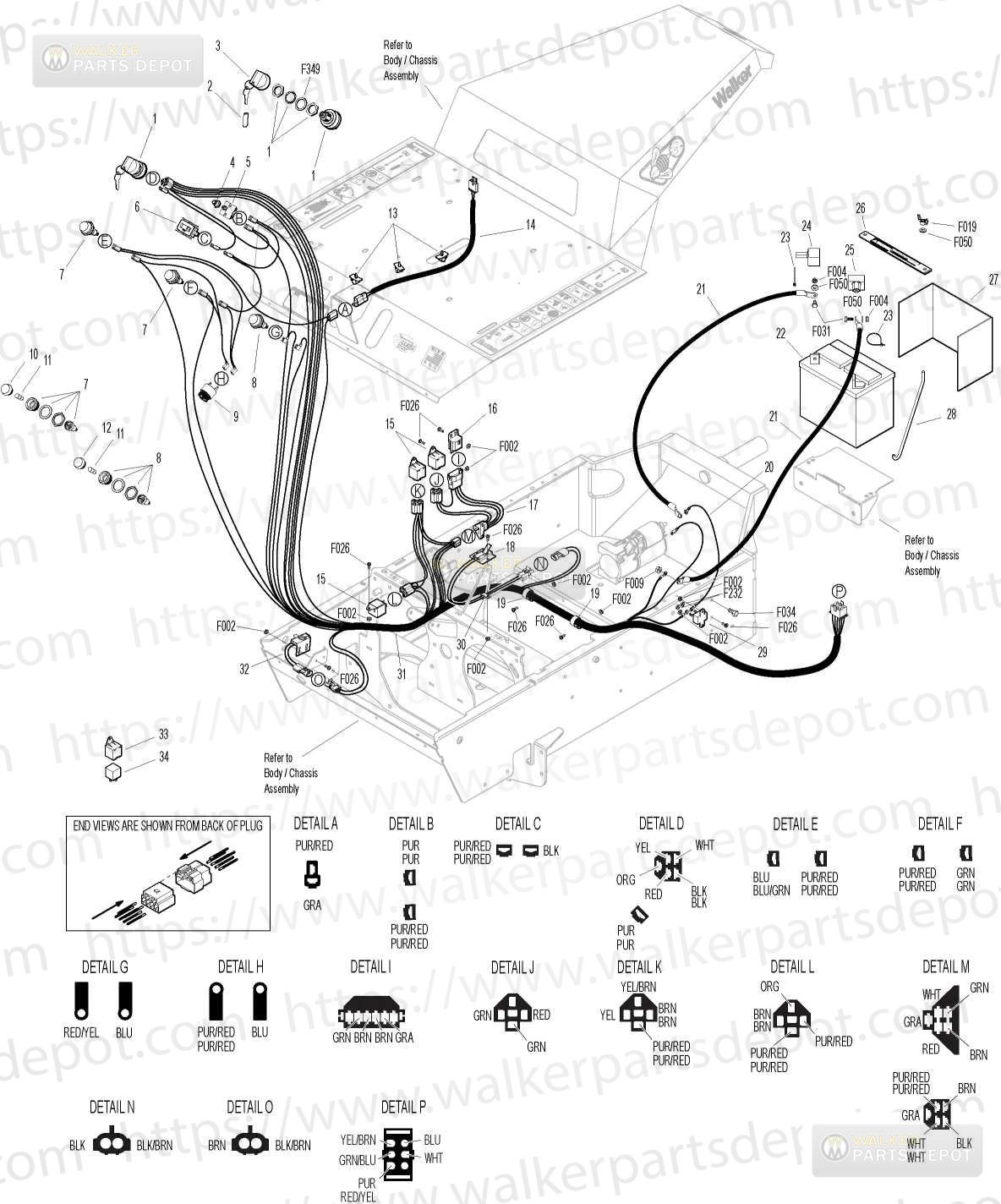

PARTS > MH MANUALS > 2012-07-19, 2000-6, Serial 115338-125121 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
2	7854	Plastic TipRed	$0.50	Add to Cart
3	8960-3	Key Set WUmbrella	$14.99	Add to Cart
4	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
5	7941-6	Circuit Breaker (15 Amp)
6	8990-1	Hourmeter Global	$25.89	Add to Cart
7	8996-2	Red Indicator Light Assembly (Includes Items # 10 & 11)
8	8996-10	Amber Indicator Light Asy	$24.05	Add to Cart
9	8536-2	Warning Horn Assembly	$26.27	Add to Cart
10	8996-4	Red Indicator Lens	$10.88	Add to Cart
11	8996-3	NR Indicator Bulb 89962	$7.26	Add to Cart
12	8996-6	Amber Indicator Lens	$6.10	Add to Cart
13	6105-3	Harness Clip	$2.88	Add to Cart
14	2940-4	NR Seat Switch Harness	$13.64	Add to Cart
15	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
16	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
17	7948-5	Time Delay Harness	$36.78	Add to Cart
18	5941-2	Safety Switch NO	$88.28	Add to Cart
19	7833-2	Cable Clamp 1x14	$2.84	Add to Cart
20	7938	Lead Wire Battery Charge Alternator to Starter	$7.42	Add to Cart
21	2940-3	Battery Cable 14	$20.87	Add to Cart
22	NS	Battery (12V/275CCA/Dry)
23	5975-1	Cable Tie 18x334	$0.34	Add to Cart
24	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
25	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
26	5844	Battery HoldDown Bar	$11.42	Add to Cart
27	2910-1	NR Battery Shield	$21.63	Add to Cart
28	5839	Hook Bolt	$9.35	Add to Cart
29	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
30	5833	Cable Clamp 14	$1.30	Add to Cart
31	2940-13	Wire HarnessMH	$127.47	Add to Cart
32	5942-4	Safety Switch NO	$63.17	Add to Cart
33	6941-7	Relay Mount	$3.34	Add to Cart
34	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
