Part Lookup Tool

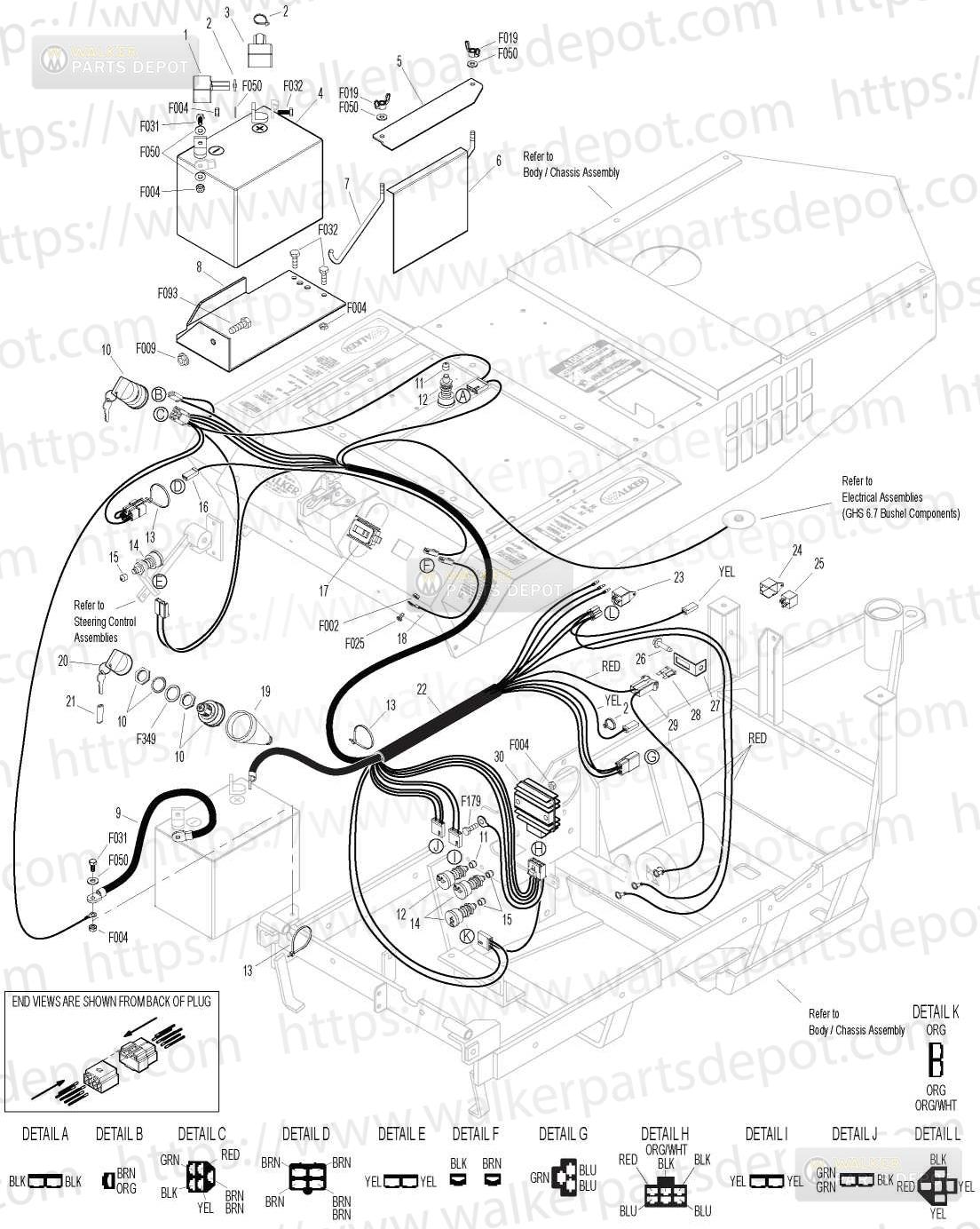

PARTS > MS MANUALS > 2014-04-25, 5000-22, Serial 117172-128441 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
2	5975-1	Cable Tie 18x334	$0.34	Add to Cart
3	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
4	NS	Battery (12V/300.CA/Wet)
5	5844	Battery HoldDown Bar	$11.42	Add to Cart
6	6392	Battery Protector Plate
7	5839	Hook Bolt	$9.35	Add to Cart
8	6390	Battery Pan	$16.30	Add to Cart
9	6923	Battery Cable	$13.09	Add to Cart
10	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
11	5941-1	Switch Boot Fits PN 5941	$2.04	Add to Cart
12	5941	Safety Switch NC	$26.64	Add to Cart
13	5975-3	Cable Tie 50x7	$0.36	Add to Cart
14	5942	Safety Switch NO	$20.50	Add to Cart
15	5942-1	Switch Boot Fits PN 5942	$1.74	Add to Cart
16	5991-1	Hourmeter Power Lead Wire	$6.26	Add to Cart
17	8990-1	Hourmeter Global	$25.89	Add to Cart
18	5991-2	Hourmeter Ground Wire	$5.83	Add to Cart
19	5940-3	Ignition Switch Cover Svc Bulletin 9131	$3.34	Add to Cart
20	8960-3	Key Set WUmbrella	$14.99	Add to Cart
21	7854	Plastic TipRed	$0.50	Add to Cart
22	5943-3	Wire Harness Assembly	$94.46	Add to Cart
23	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
24	6941-7	Relay Mount	$3.34	Add to Cart
25	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
26	NS	Bolt (Subaru)
27	5961	Fuse Holder Mount Bracket	$5.45	Add to Cart
28	6941-1	20 Amp Fuse	$1.87	Add to Cart
29	5940-6	NR Fuse Holder WTerminals	$6.05	Add to Cart
30	NS	Voltage Regulator (Subaru)
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
