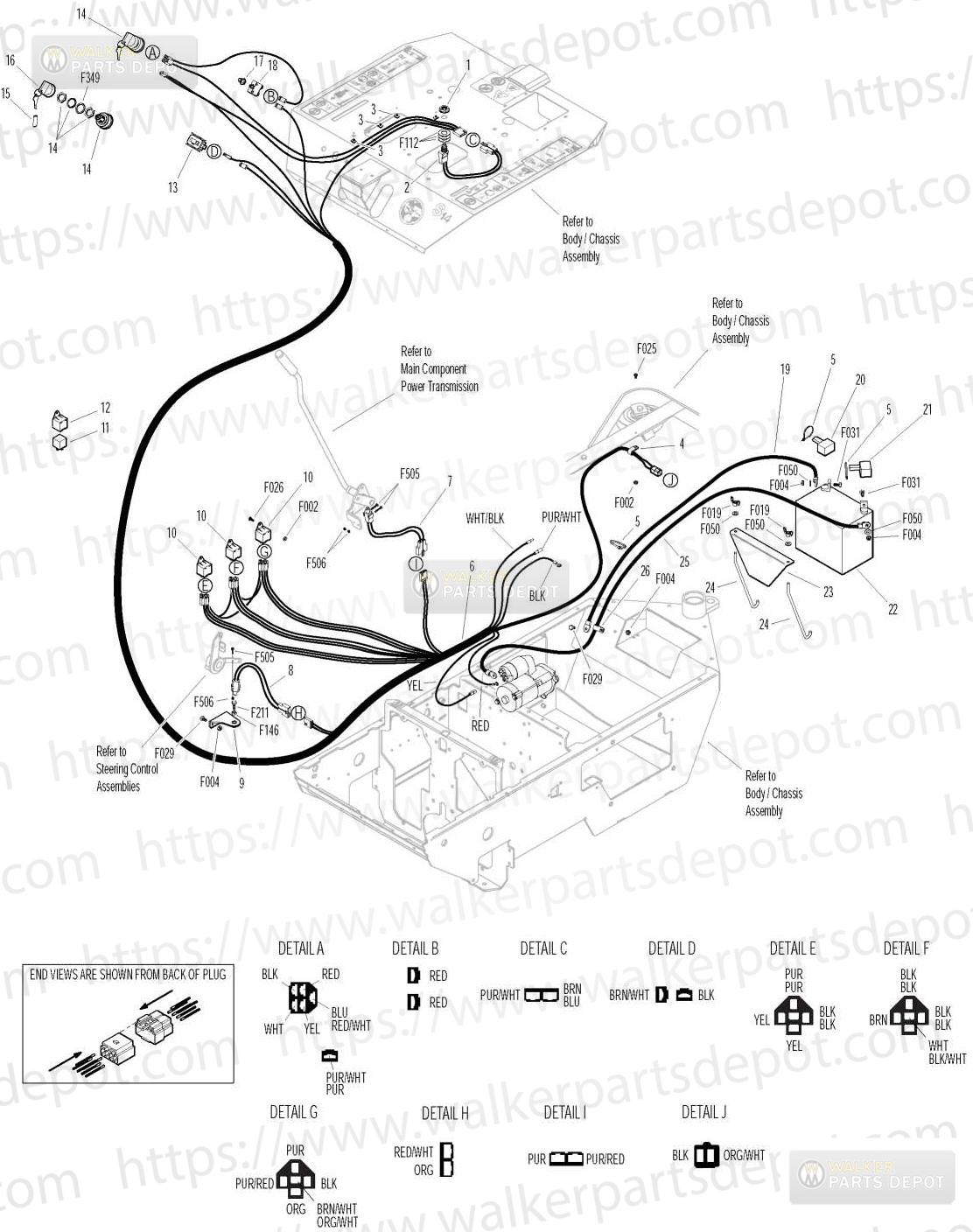

PARTS > MS MANUALS > 2014-05-05, 5000-27, Serial 128442-144526 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5942-11	NR Delta Hex Nut	$4.44	Add to Cart
2	5942-9	NR Safety Switch NODelta Threaded	$17.29	Add to Cart
3	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
4	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
5	5975-1	Cable Tie 18x334	$0.34	Add to Cart
6	5943-5	Wire Harness MSSubaru	$65.67	Add to Cart
7	5942-10	Safety Switch NC Delta Side Mount	$36.52	Add to Cart
8	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
9	4024-13	Safety Switch Plate	$10.92	Add to Cart
10	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
11	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
12	6941-7	Relay Mount	$3.34	Add to Cart
13	8990-1	Hourmeter Global	$25.89	Add to Cart
14	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
15	7854	Plastic TipRed	$0.50	Add to Cart
16	8960-3	Key Set WUmbrella	$14.99	Add to Cart
17	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
18	7941-6	Circuit Breaker (15 Amp)
19	6923	Battery Cable	$13.09	Add to Cart
20	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
21	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
22	NS	Battery (12V/300.CA/Wet)
23	5844-3	Battery HoldDown Bar	$13.06	Add to Cart
24	5839	Hook Bolt	$9.35	Add to Cart
25	4940-6	Battery Cable 33	$14.83	Add to Cart
26	6832	Cable Clamp 916x14	$1.32	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F112	58x114x03 Washer	$1.32	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
