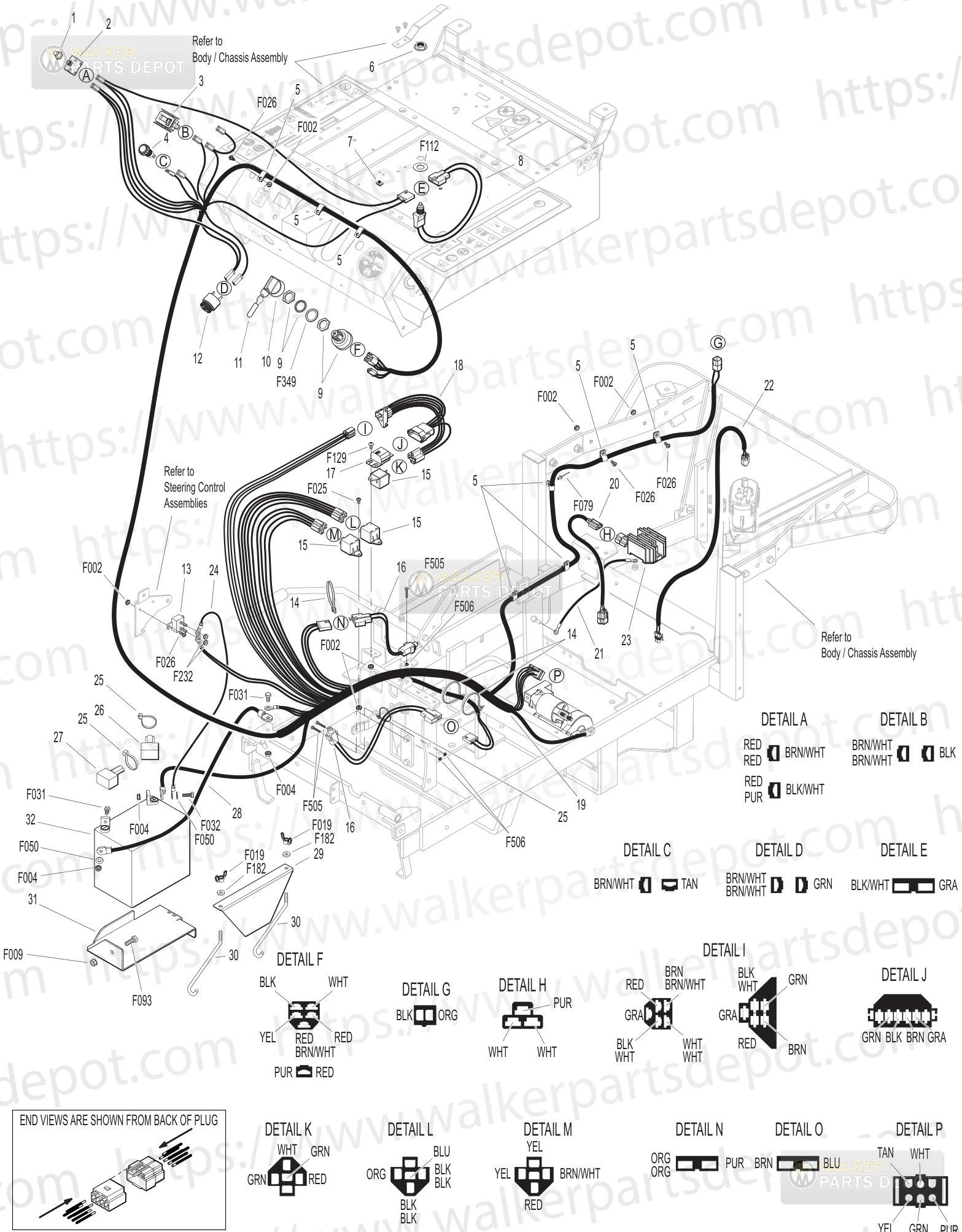

PARTS > MC MANUALS > 2018-04-12, 6000-23, Serial 147791-154994 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
2	7941-5	Circuit Breaker 7AMP	$9.88	Add to Cart
3	8990-1	Hourmeter Global	$25.89	Add to Cart
4	8996-9	Red Indicator Light Assembly	$9.62	Add to Cart
5	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
6	5942-11	NR Delta Hex Nut	$4.44	Add to Cart
7	7834-2	Wire Saddle 2 Wires	$0.90	Add to Cart
8	5942-9	NR Safety Switch NODelta Threaded	$17.29	Add to Cart
9	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
10	8960-3	Key Set WUmbrella	$14.99	Add to Cart
11	7854	Plastic TipRed	$0.50	Add to Cart
12	8536-2	Warning Horn Assembly	$26.27	Add to Cart
13	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
14	5975-3	Cable Tie 50x7	$0.36	Add to Cart
15	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
16	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
17	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
18	7948-3	Time Delay Harness C18HP	$22.00	Add to Cart
19	6940-7	Wire Harness MC19 EFI	$94.02	Add to Cart
20	8012-5	Regulator Adpt Harness25	$25.04	Add to Cart
21	8012-7	Ground Wire
22	8018-3	NR Wire Extension	$45.72	Add to Cart
23	NS	Rectifier
24	8943	Battery Lead Wire	$5.78	Add to Cart
25	5975-1	Cable Tie 18x334	$0.34	Add to Cart
26	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
27	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
28	6923	Battery Cable	$13.09	Add to Cart
29	5844-3	Battery HoldDown Bar	$13.06	Add to Cart
30	5839	Hook Bolt	$9.35	Add to Cart
31	6390-2	Battery Pan	$24.44	Add to Cart
32	NS	Battery (12V/340CCA/Dry)
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F112	58x114x03 Washer	$1.32	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
