Part Lookup Tool

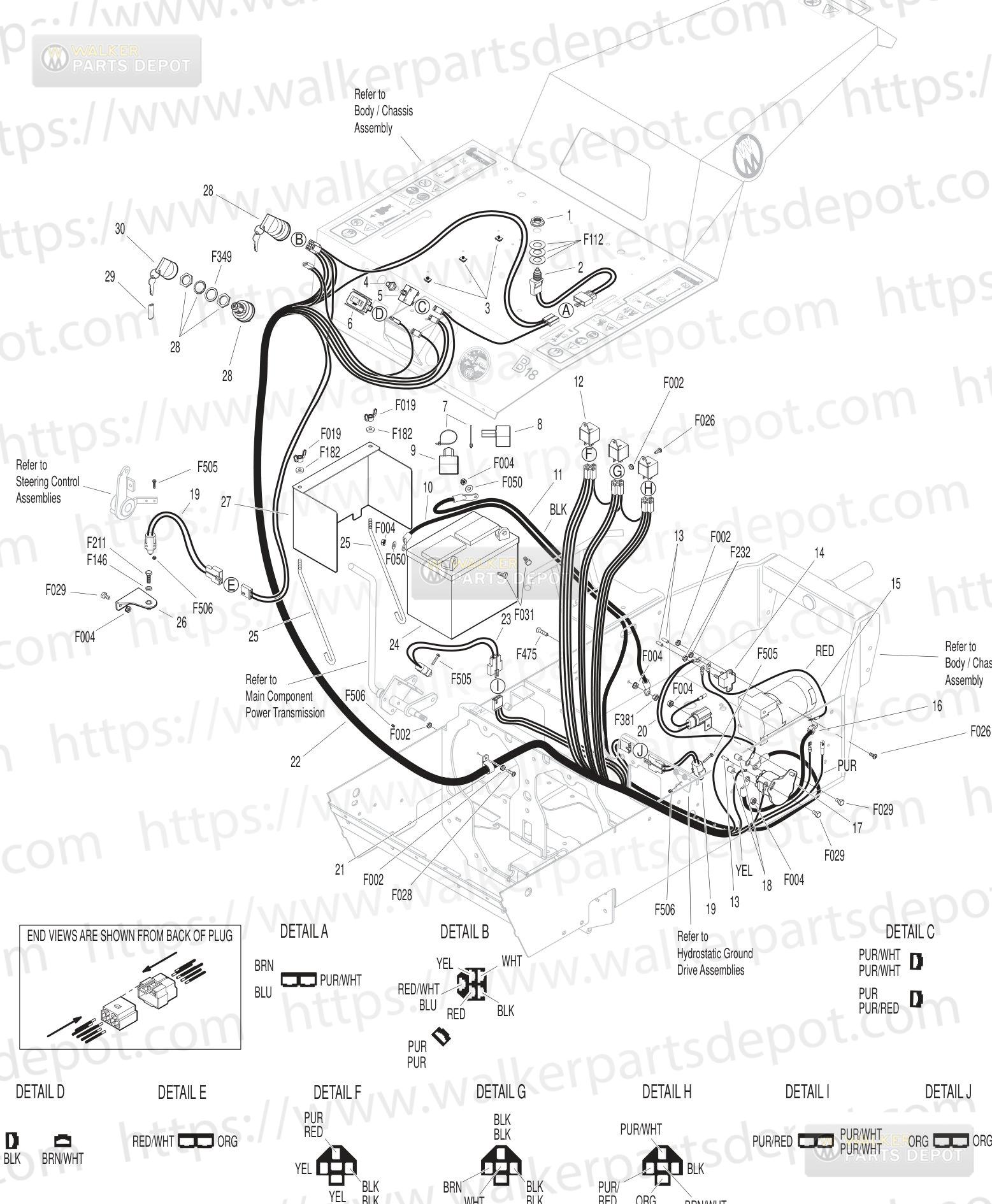

PARTS > MB MANUALS > 2018-12-14, 4000-26, Serial 151820-157300 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5942-11	NR Delta Hex Nut	$4.44	Add to Cart
2	5942-9	NR Safety Switch NODelta Threaded	$17.29	Add to Cart
3	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
4	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
5	7941-8	Circuit Breaker 5AMP	$9.84	Add to Cart
6	8990-1	Hourmeter Global	$25.89	Add to Cart
7	5975-1	Cable Tie 18x334	$0.34	Add to Cart
8	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
9	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
10	4940-6	Battery Cable 33	$14.83	Add to Cart
11	6923-4	Battery Cable 13-1/2" (-)
12	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
13	8404-8	Plastic CoverRed	$3.05	Add to Cart
14	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
15	4940-11	Jumper Wire	$4.44	Add to Cart
16	4940-8	Starter Solenoid Cable	$9.43	Add to Cart
17	4929	Starter Solenoid	$33.88	Add to Cart
18	6681-23	Plastic CapBlack	$0.17	Add to Cart
19	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
20	4940-15	30A Fuse Jumper Wire Assembly	$15.93	Add to Cart
21	5835	Cable Clamp 34	$4.13	Add to Cart
22	4940-17	Wire Harness MB18	$112.56	Add to Cart
23	5942-10	Safety Switch NC Delta Side Mount	$36.52	Add to Cart
24	NS	Battery (12V/300CCA/Dry)
25	5839	Hook Bolt	$9.35	Add to Cart
26	4024-13	Safety Switch Plate	$10.92	Add to Cart
27	4910-4	NR Battery Cover	$36.87	Add to Cart
28	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
29	7854	Plastic TipRed	$0.50	Add to Cart
30	8960-3	Key Set WUmbrella	$14.99	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F112	58x114x03 Washer	$1.32	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F381	1420 Hex Nut	$0.18	Add to Cart
	F475	1420x1 PFH Screw	$0.34	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
