Part Lookup Tool

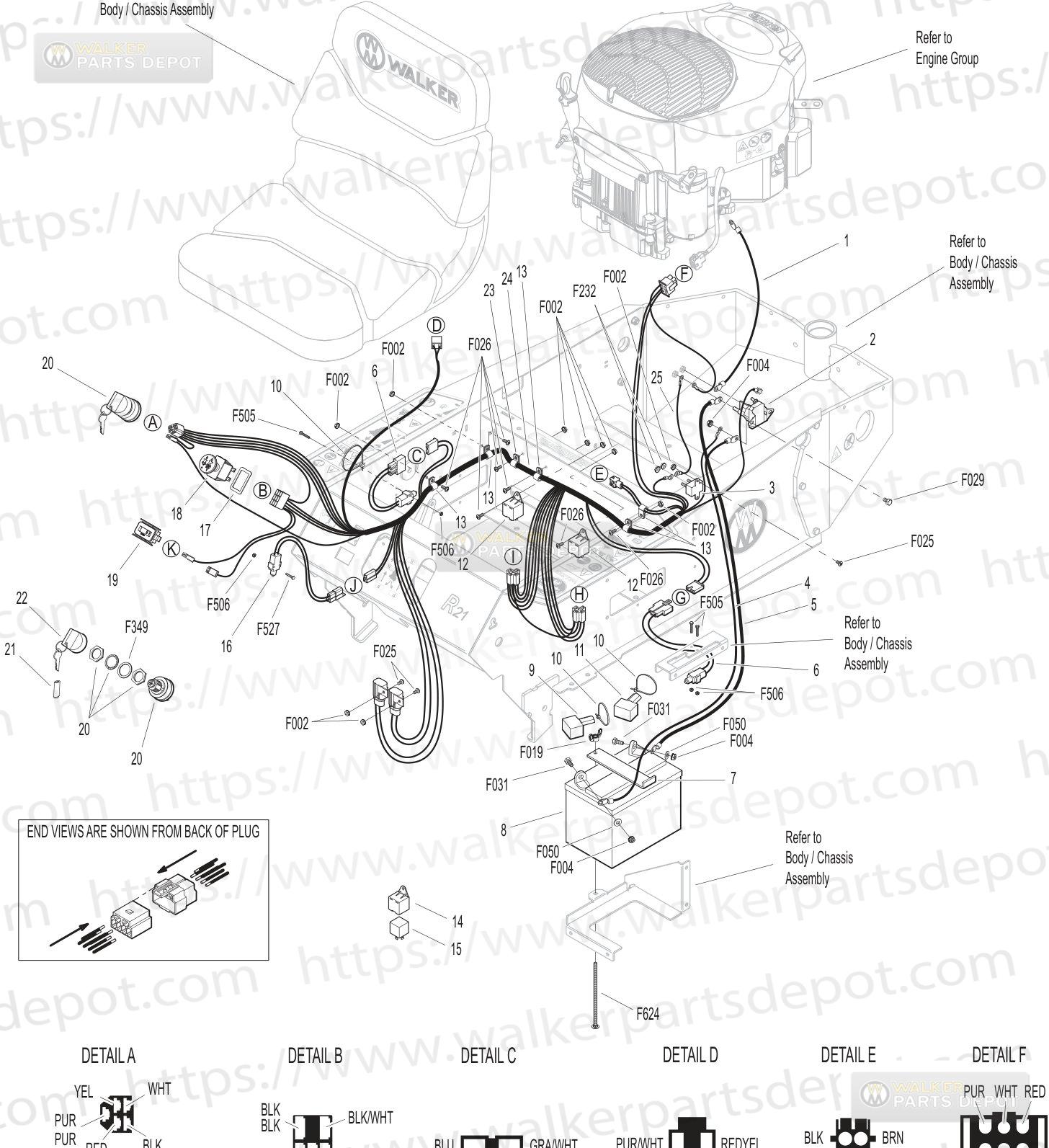

PARTS > MR MANUALS > 2019-08-28, 1000, Serial 158429-160823 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6940-18	Jumper Wire	$9.26	Add to Cart
2	5929	Starter Solenoid	$22.24	Add to Cart
3	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
4	6940-21	Ground Wire	$11.11	Add to Cart
5	6940-19	Jumper Wire	$13.40	Add to Cart
6	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
7	1910-1	Battery Hold Down	$7.12	Add to Cart
8	NS	Battery (12V/300CCA/Dry)
9	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
10	5975-1	Cable Tie 18x334	$0.34	Add to Cart
11	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
12	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
13	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
14	6941-7	Relay Mount	$3.34	Add to Cart
15	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
16	5942-20	Safety Switch NO	$27.21	Add to Cart
17	4950-10	PTO Switch Spacer	$4.51	Add to Cart
18	4950	PTO Switch	$21.12	Add to Cart
19	8990-1	Hourmeter Global	$25.89	Add to Cart
20	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
21	7854	Plastic TipRed	$0.50	Add to Cart
22	8960-3	Key Set WUmbrella	$14.99	Add to Cart
23	5835	Cable Clamp 34	$4.13	Add to Cart
24	1940	Wire HarnessMR21	$177.87	Add to Cart
25	4940-11	Jumper Wire	$4.44	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
	F527	632 x 34 Hex Trim MS SS	$0.74	Add to Cart
	F624	1420x6 Carriage Bolt	$1.75	Add to Cart
