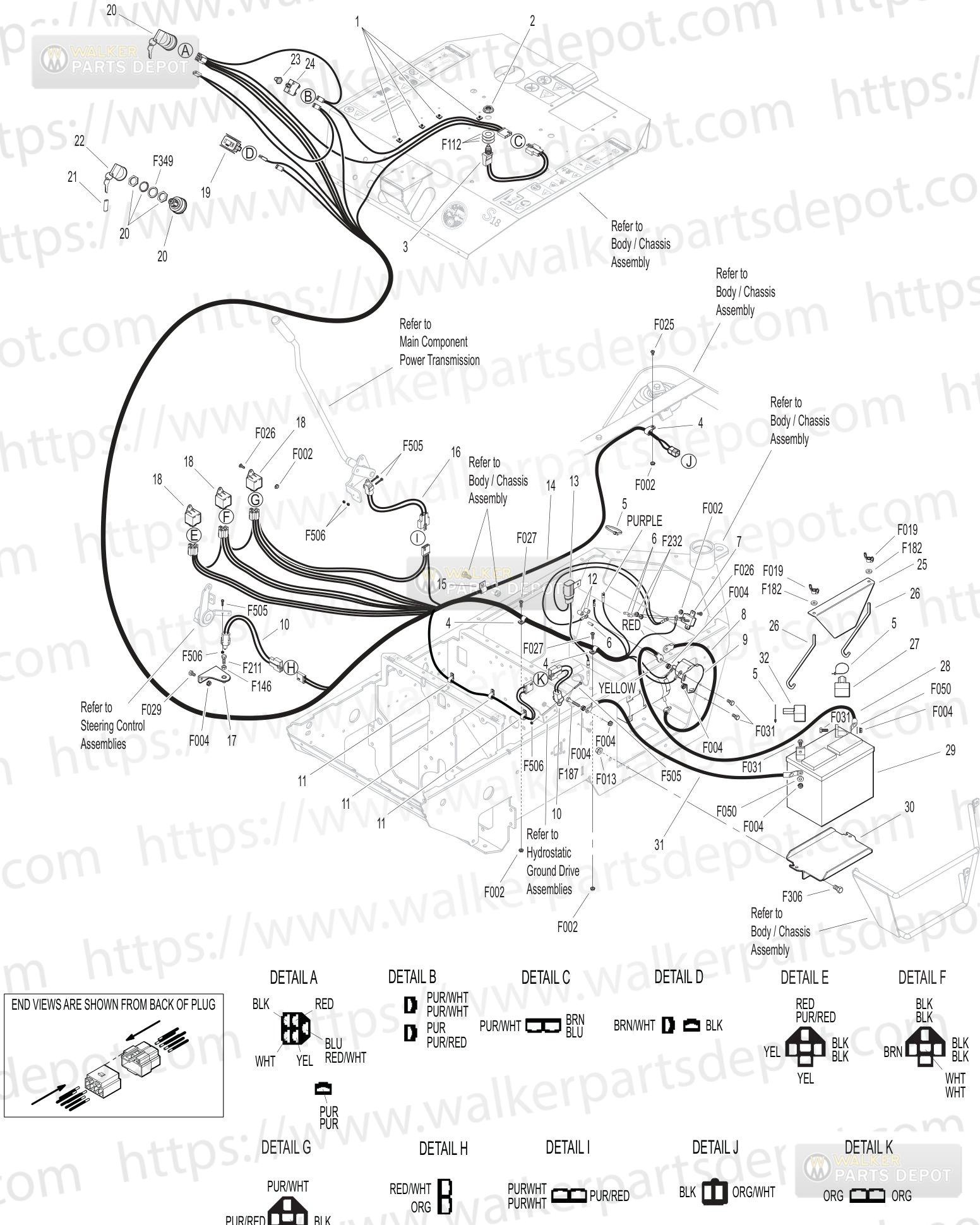

PARTS > MS MANUALS > 2020-02-05, 5000-51, Serial 153873-162839 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
2	5942-11	NR Delta Hex Nut	$4.44	Add to Cart
3	5942-9	NR Safety Switch NODelta Threaded	$17.29	Add to Cart
4	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
5	5975-1	Cable Tie 18x334	$0.34	Add to Cart
6	8404-8	Plastic CoverRed	$3.05	Add to Cart
7	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
8	6922	Battery Cable	$10.78	Add to Cart
9	4929	Starter Solenoid	$33.88	Add to Cart
10	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
11	5833-1	Cable Clamp (1/4 x 1/4)
12	6681-23	Plastic CapBlack	$0.17	Add to Cart
13	4940-15	30A Fuse Jumper Wire Assembly	$15.93	Add to Cart
14	5943-10	Wire Harness MS18	$170.42	Add to Cart
15	5835-4	Cable Clamp 12 343 Hole	$2.83	Add to Cart
16	5942-10	Safety Switch NC Delta Side Mount	$36.52	Add to Cart
17	4024-13	Safety Switch Plate	$10.92	Add to Cart
18	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
19	8990-1	Hourmeter Global	$25.89	Add to Cart
20	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
21	7854	Plastic TipRed	$0.50	Add to Cart
22	8960-3	Key Set WUmbrella	$14.99	Add to Cart
23	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
24	7941-8	Circuit Breaker 5AMP	$9.84	Add to Cart
25	5844-3	Battery HoldDown Bar	$13.06	Add to Cart
26	5839	Hook Bolt	$9.35	Add to Cart
27	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
28	4940-8	Starter Solenoid Cable	$9.43	Add to Cart
29	NS	Battery (12V/300.CA/Wet)
30	6390-3	Battery Pan
31	6923	Battery Cable	$13.09	Add to Cart
32	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F112	58x114x03 Washer	$1.32	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F187	1420x112 Hex Bolt	$0.79	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F306	3816x34 Hex Bolt	$1.06	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
