Part Lookup Tool

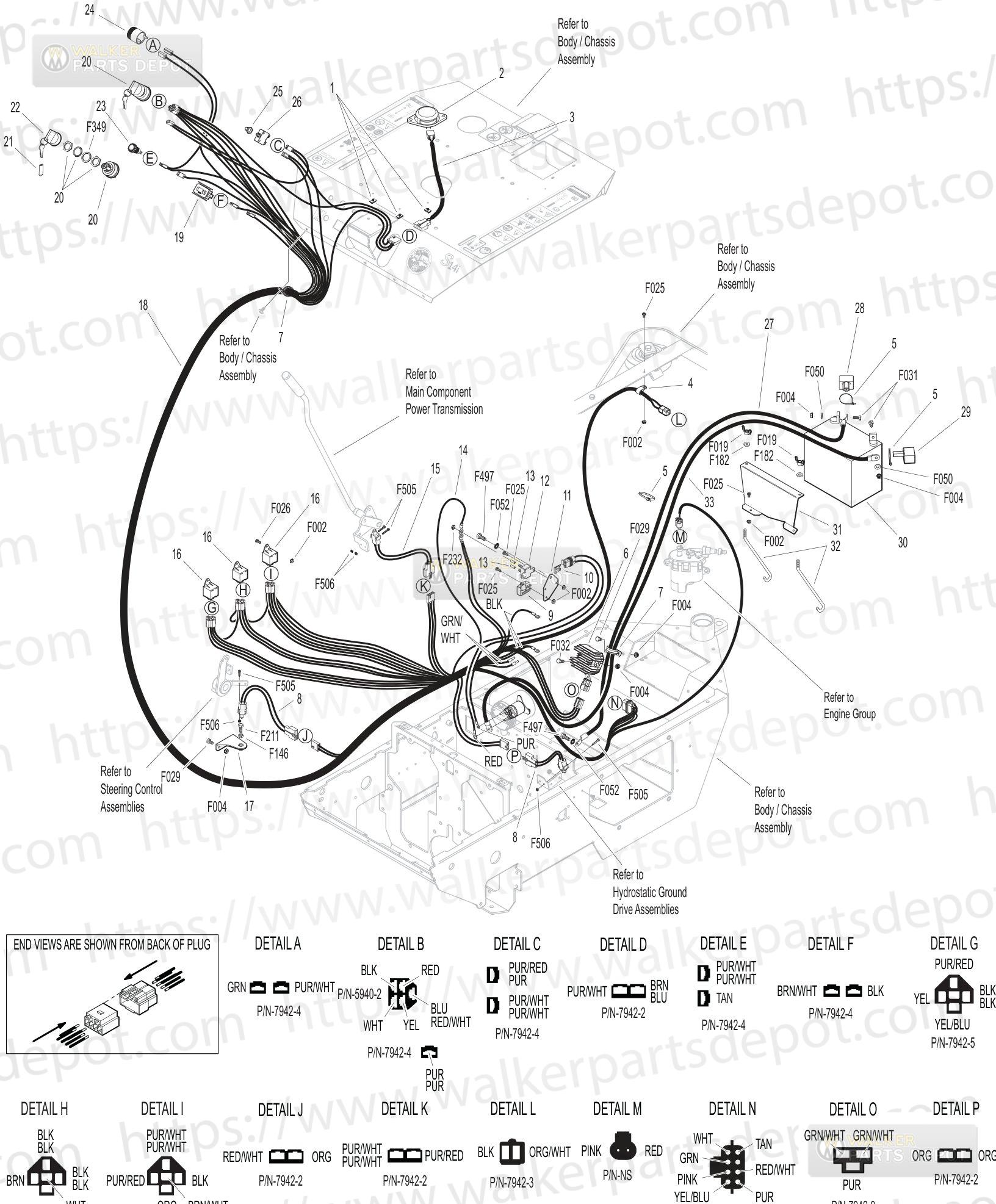

PARTS > MS MANUALS > 2021-10-08, 5000-64, Serial 165757-AND ON > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
2	5103-12	NR Seat Switch 51033 Seat	$46.62	Add to Cart
3	6104-12	Adapter HarnessMBMSMC Includes Housing Plug	$16.37	Add to Cart
4	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
5	5975-1	Cable Tie 18x334	$0.34	Add to Cart
6	NS	Rectifier
7	7833	Cable Clamp 78x14	$2.72	Add to Cart
8	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
9	NS	Fuse Holder (Kohler)
10	6941-3	10 Amp Fuse	$1.44	Add to Cart
11	6929-4	Circuit Breaker / Fuse Mount
12	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
13	8404-8	Plastic CoverRed	$3.05	Add to Cart
14	4940-11	Jumper Wire	$4.44	Add to Cart
15	5942-10	Safety Switch NC Delta Side Mount	$36.52	Add to Cart
16	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
17	4024-13	Safety Switch Plate	$10.92	Add to Cart
18	5943-9	Wire Harness MS14i	$174.41	Add to Cart
19	8990-1	Hourmeter Global	$25.89	Add to Cart
20	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
21	7854	Plastic TipRed	$0.50	Add to Cart
22	8960-3	Key Set WUmbrella	$14.99	Add to Cart
23	8996-9	Red Indicator Light Assembly	$9.62	Add to Cart
24	8536	Warning Horn	$24.07	Add to Cart
25	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
26	7941-8	Circuit Breaker 5AMP	$9.84	Add to Cart
27	2940-2	Battery Cable 22	$25.54	Add to Cart
28	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
29	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
30	NS	Battery (12V/300 CCA/Wet/SP-35)
31	6390-5	Battery Guard	$25.06	Add to Cart
32	5839	Hook Bolt	$9.35	Add to Cart
33	4940-6	Battery Cable 33	$14.83	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F052	516 Ext Star Lock Wshr	$0.18	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F497	M8x125x20 Hex Bolt	$1.54	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
