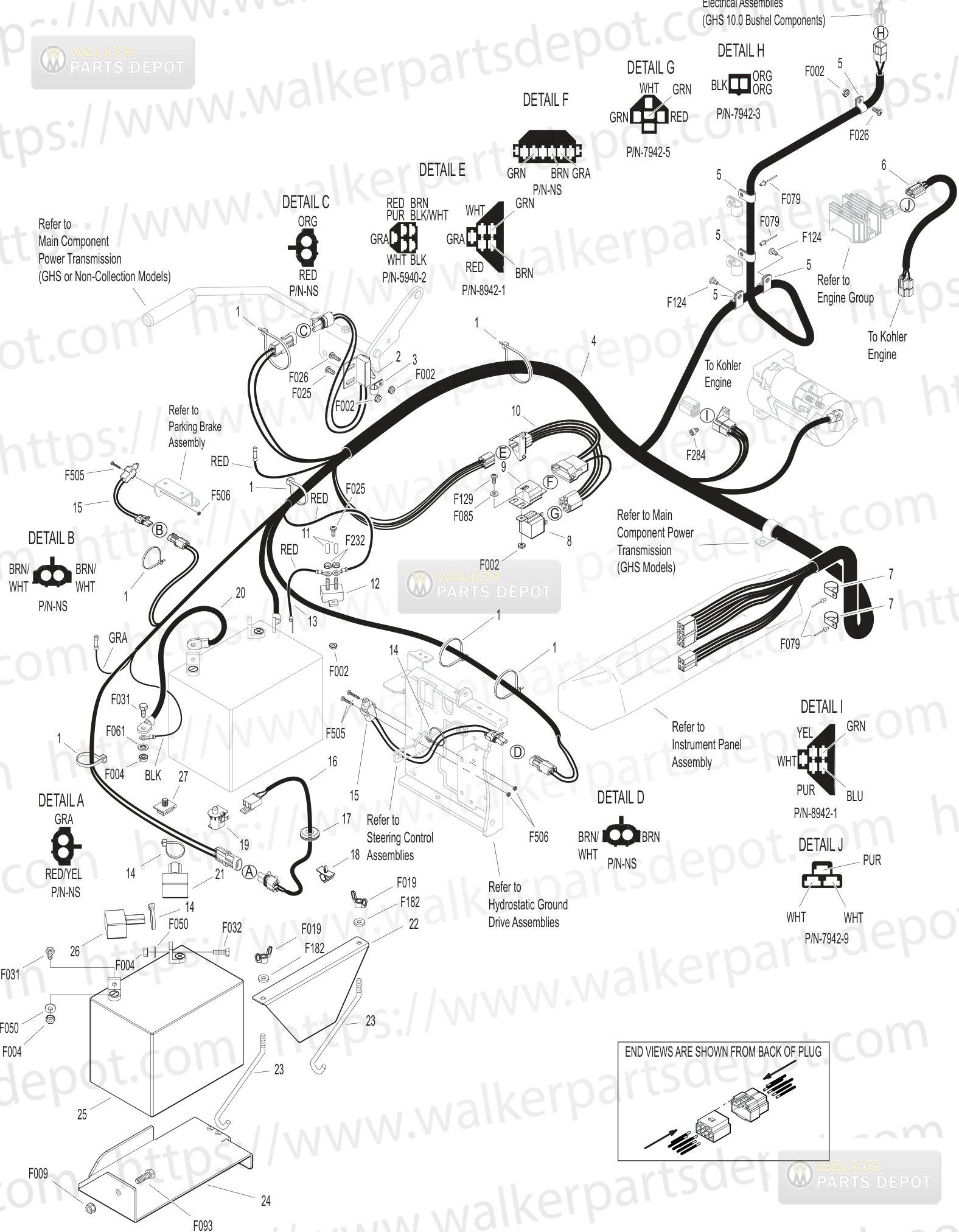

PARTS > MT MANUALS > 2022-10-06, 8000-49, Serial 170586-179237 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5975-3	Cable Tie 50x7	$0.36	Add to Cart
2	5942-4	Safety Switch NO	$63.17	Add to Cart
3	5833	Cable Clamp 14	$1.30	Add to Cart
4	8940-26	Wire HarnessMT23	$141.54	Add to Cart
5	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
6	8012-6	Regulator Adpt Harness	$20.87	Add to Cart
7	7833-2	Cable Clamp 1x14	$2.84	Add to Cart
8	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
9	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
10	7948-5	Time Delay Harness	$36.78	Add to Cart
11	8404-8	Plastic CoverRed	$3.05	Add to Cart
12	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
13	8943	Battery Lead Wire	$5.78	Add to Cart
14	5975-1	Cable Tie 18x334	$0.34	Add to Cart
15	5942-16	Safety Switch NO Delta WP	$26.64	Add to Cart
16	6104-13	Adapter HarnessMT	$16.61	Add to Cart
17	5977-6	Grommet 1x114	$1.26	Add to Cart
18	6105-3	Harness Clip	$2.88	Add to Cart
19	6104-11	Seat Switch NOComfort Seat	$13.12	Add to Cart
20	6923	Battery Cable	$13.09	Add to Cart
21	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
22	5844-3	Battery HoldDown Bar	$13.06	Add to Cart
23	5839	Hook Bolt	$9.35	Add to Cart
24	6390-2	Battery Pan	$24.44	Add to Cart
25	NS	Battery (12V/300 CCA/Dry/SP-35)
26	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
27	7834-2	Wire Saddle 2 Wires	$0.90	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F124	1032x38 Taptite MS	$0.36	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F284	M6x10x8 SCH Screw	$0.79	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
