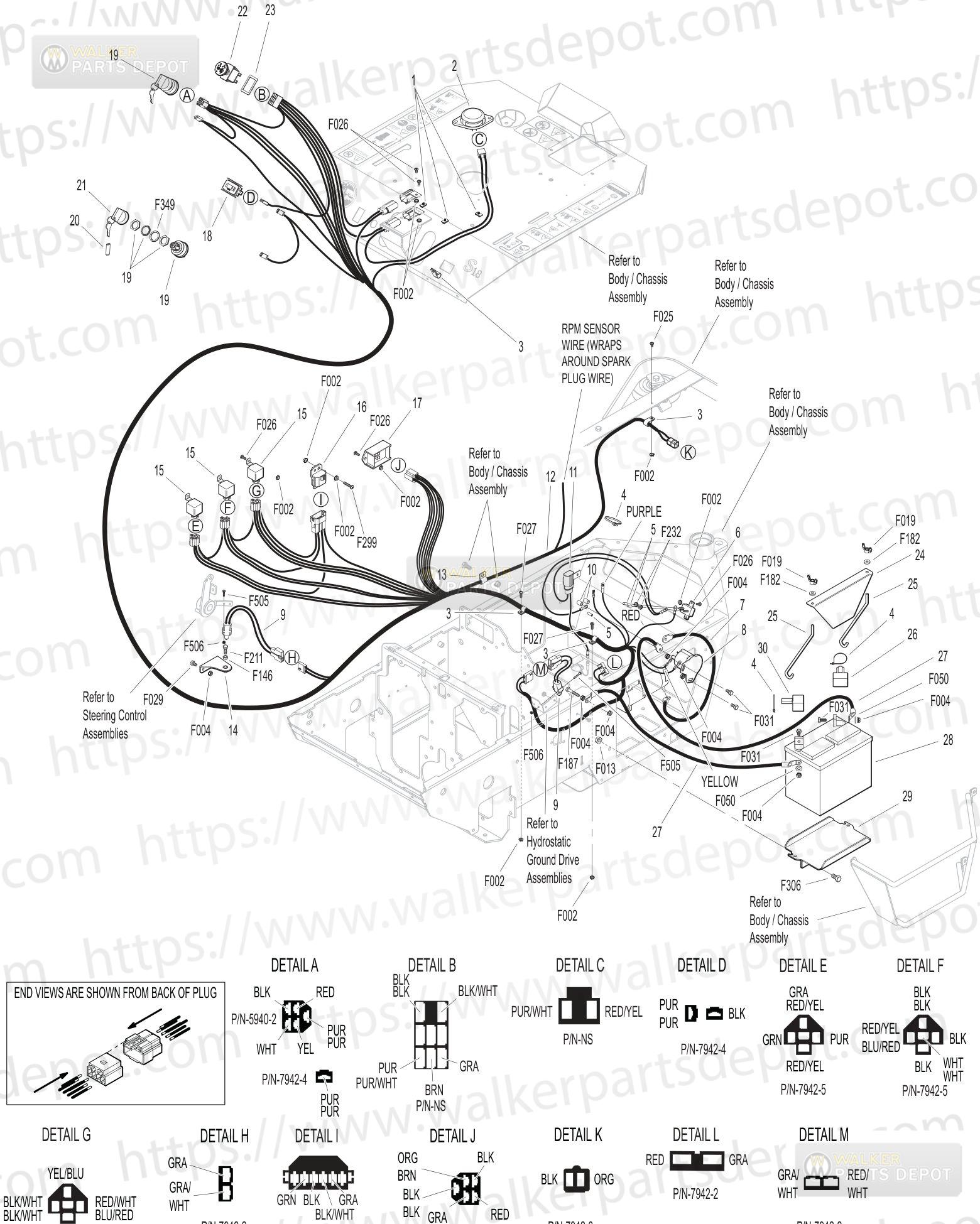

PARTS > MS MANUALS > 2022-11-23, 5000-72, Serial 178948-181151 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
2	5103-12	NR Seat Switch 51033 Seat	$46.62	Add to Cart
3	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
4	5975-1	Cable Tie 18x334	$0.34	Add to Cart
5	8404-8	Plastic CoverRed	$3.05	Add to Cart
6	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
7	6922	Battery Cable	$10.78	Add to Cart
8	4929	Starter Solenoid	$33.88	Add to Cart
9	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
10	6681-23	Plastic CapBlack	$0.17	Add to Cart
11	4940-15	30A Fuse Jumper Wire Assembly	$15.93	Add to Cart
12	5943-11	"Wire Harness MS18 "	$294.84	Add to Cart
13	5835-4	Cable Clamp 12 343 Hole	$2.83	Add to Cart
14	4024-13	Safety Switch Plate	$10.92	Add to Cart
15	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
16	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
17	4410-16	Soft Start Control	$64.41	Add to Cart
18	8990-1	Hourmeter Global	$25.89	Add to Cart
19	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
20	7854	Plastic TipRed	$0.50	Add to Cart
21	8960-3	Key Set WUmbrella	$14.99	Add to Cart
22	4950	PTO Switch	$21.12	Add to Cart
23	4950-10	PTO Switch Spacer	$4.51	Add to Cart
24	5844-3	Battery HoldDown Bar	$13.06	Add to Cart
25	5839	Hook Bolt	$9.35	Add to Cart
26	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
27	4940-8	Starter Solenoid Cable	$9.43	Add to Cart
28	NS	Battery (12V/300 CCA/Wet/SP-35)
29	6390-3	Battery Pan
30	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F187	1420x112 Hex Bolt	$0.79	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F299	1024x1 PPHMS	$0.36	Add to Cart
	F306	3816x34 Hex Bolt	$1.06	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
