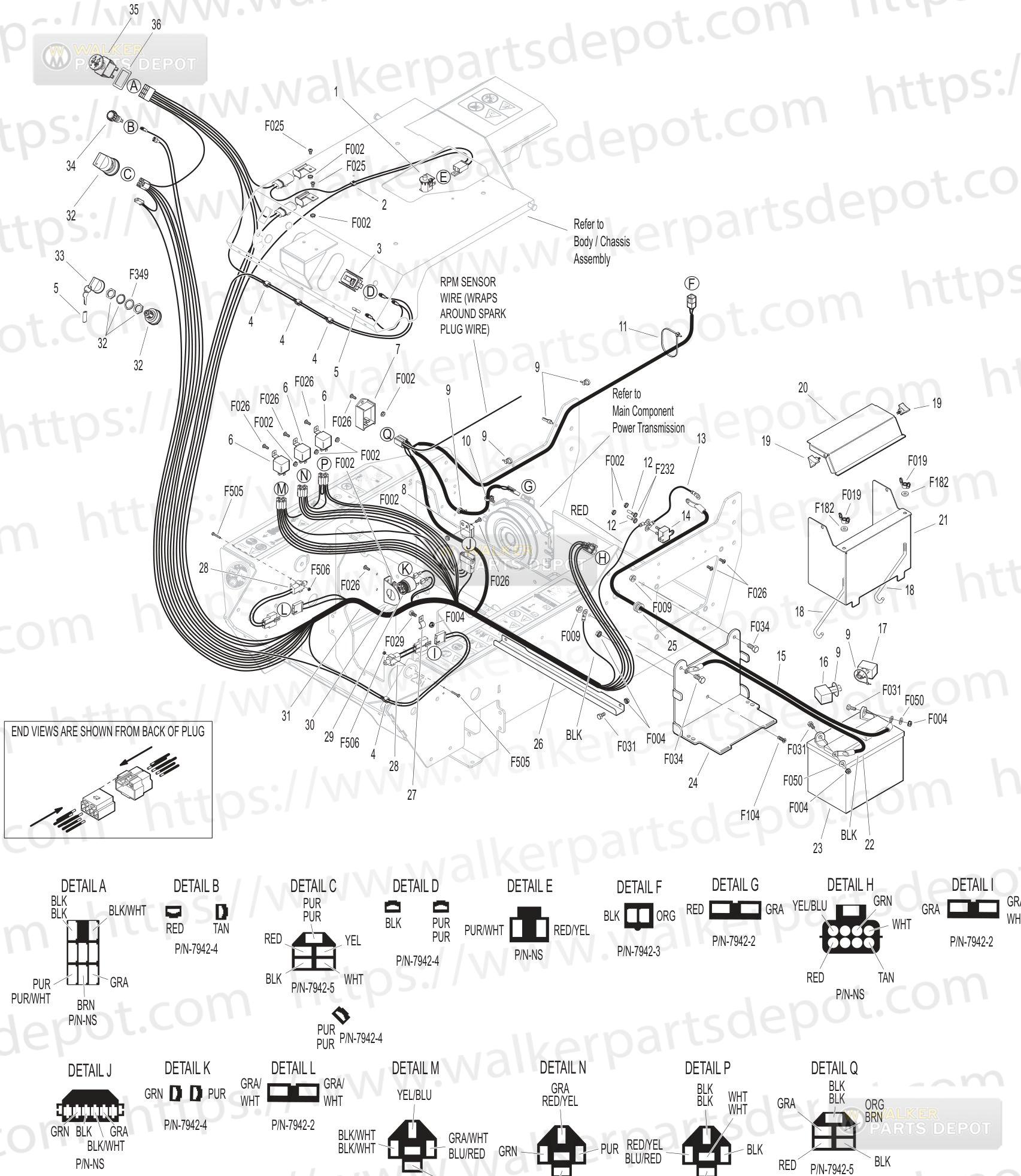

PARTS > MC MANUALS > 2023-06-15, 6000-35, Serial 181528-183833 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6104-11	Seat Switch NOComfort Seat	$13.12	Add to Cart
2	7834-2	Wire Saddle 2 Wires	$0.90	Add to Cart
3	8990-1	Hourmeter Global	$25.89	Add to Cart
4	5833-1	Cable Clamp (1/4 x 1/4)
5	7854	Plastic TipRed	$0.50	Add to Cart
6	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
7	4410-16	Soft Start Control	$64.41	Add to Cart
8	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
9	5975-1	Cable Tie 18x334	$0.34	Add to Cart
10	7834-4	Wire Clamp .197-.354
11	5975-3	Cable Tie 50x7	$0.36	Add to Cart
12	8404-8	Plastic CoverRed	$3.05	Add to Cart
13	4940-11	Jumper Wire	$4.44	Add to Cart
14	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
15	2940-2	Battery Cable 22	$25.54	Add to Cart
16	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
17	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
18	5839	Hook Bolt	$9.35	Add to Cart
19	2703-5	Knob 1024x12	$5.38	Add to Cart
20	4910-5	Cover Plate	$25.70	Add to Cart
21	4910-1	Battery Hold Down Bracket	$45.88	Add to Cart
22	4940-8	Starter Solenoid Cable	$9.43	Add to Cart
23	NS	Battery (12V/350 CCA/Wet/SP-40)
24	4910-7	Battery Mount MB27i	$58.50	Add to Cart
25	4977	Grommet 12x1316x316	$0.72	Add to Cart
26	6342-5	Wiring Channel
27	5835-6	Clamp Half (5/8) .218 Hole
28	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
29	8536-2	Warning Horn Assembly	$26.27	Add to Cart
30	8536-5	Warning Horn Bracket
31	6940-24	Wire Harness Assembly
32	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
33	8960-3	Key Set WUmbrella	$14.99	Add to Cart
34	8996-9	Red Indicator Light Assembly	$9.62	Add to Cart
35	4950	PTO Switch	$21.12	Add to Cart
36	4950-10	PTO Switch Spacer	$4.51	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F104	1420x34 PFH Bolt	$0.22	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
