Part Lookup Tool

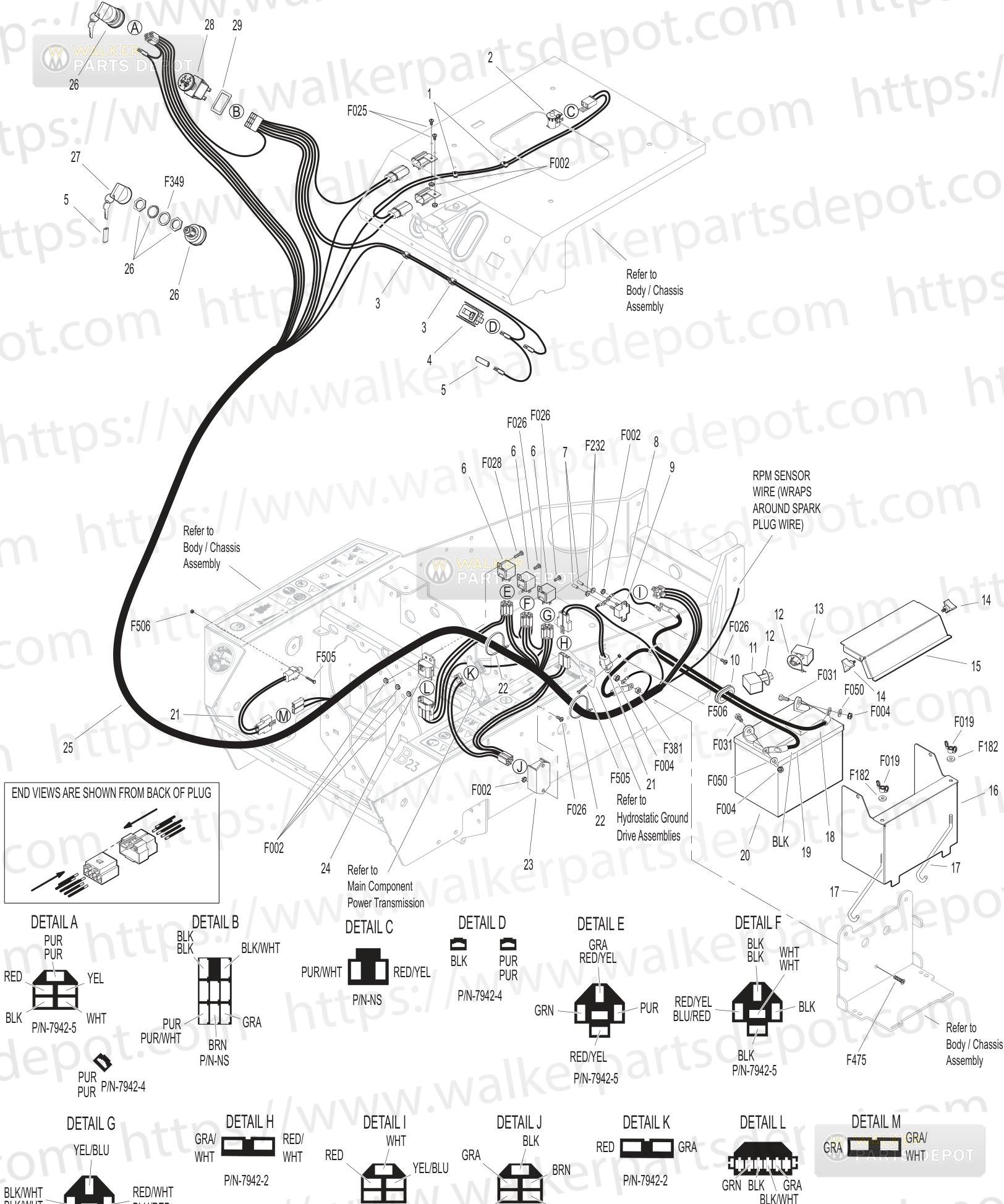

PARTS > MB MANUALS > 2023-07-13, 4000-43, Serial 178742-184729 > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
2	6104-11	Seat Switch NOComfort Seat	$13.12	Add to Cart
3	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
4	8990-1	Hourmeter Global	$25.89	Add to Cart
5	7854	Plastic TipRed	$0.50	Add to Cart
6	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
7	8404-8	Plastic CoverRed	$3.05	Add to Cart
8	4940-11	Jumper Wire	$4.44	Add to Cart
9	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
10	7977-4	Grommet (7/8 x 1-1/4 x 3/16)
11	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
12	5975-1	Cable Tie 18x334	$0.34	Add to Cart
13	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
14	2703-5	Knob 1024x12	$5.38	Add to Cart
15	4910-5	Cover Plate	$25.70	Add to Cart
16	4910-1	Battery Hold Down Bracket	$45.88	Add to Cart
17	5839	Hook Bolt	$9.35	Add to Cart
18	4940-26	Battery Cable 15	$13.94	Add to Cart
19	6923-4	Battery Cable, 13-1/2" (-)
20	NS	Battery (12V/300 CA/Wet/SP-35)
21	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
22	5975-3	Cable Tie 50x7	$0.36	Add to Cart
23	4410-16	Soft Start Control	$64.41	Add to Cart
24	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
25	4940-25	Wire Harness MB23	$237.72	Add to Cart
26	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
27	8960-3	Key Set WUmbrella	$14.99	Add to Cart
28	4950	PTO Switch	$21.12	Add to Cart
29	4950-10	PTO Switch Spacer	$4.51	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F381	1420 Hex Nut	$0.18	Add to Cart
	F475	1420x1 PFH Screw	$0.34	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
