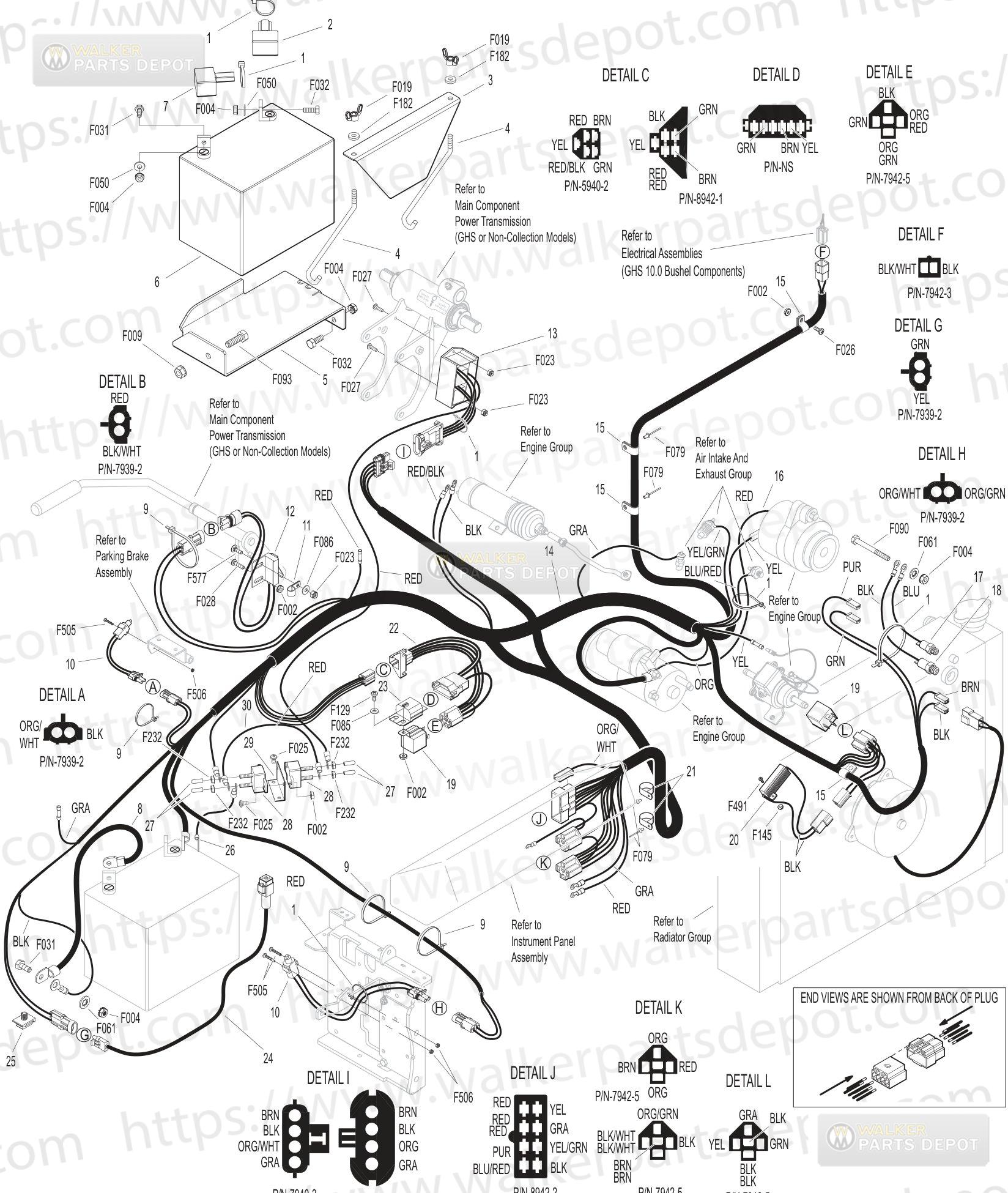

PARTS > MD MANUALS > 2025-06-18, 7000-26, Serial 189969-AND ON > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5975-1	Cable Tie 18x334	$0.34	Add to Cart
2	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
3	5844-3	Battery HoldDown Bar	$13.06	Add to Cart
4	5839	Hook Bolt	$9.35	Add to Cart
5	6390-6	Battery Pan
6	7910-3	Battery 12VCCA350A	$90.95	Add to Cart
7	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
8	6923	Battery Cable	$13.09	Add to Cart
9	5975-3	Cable Tie 50x7	$0.36	Add to Cart
10	5942-16	Safety Switch NO Delta WP	$26.64	Add to Cart
11	5833	Cable Clamp 14	$1.30	Add to Cart
12	5942-4	Safety Switch NO	$63.17	Add to Cart
13	7428-2	Fan Cntrl Module WP Plug	$200.97	Add to Cart
14	7940-12	Wire HarnessMD21d	$230.16	Add to Cart
15	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
16	7938	Lead Wire Battery Charge Alternator to Starter	$7.42	Add to Cart
17	7306-10	Switch 235Deg1418NPT	$64.18	Add to Cart
18	7306-11	Switch 205Deg3818NPT	$66.32	Add to Cart
19	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
20	7433-2	Resistor 50 Watt 4 OHM 1	$47.08	Add to Cart
21	7833	Cable Clamp 78x14	$2.72	Add to Cart
22	7948-2	Time Delay Harness DDG	$38.02	Add to Cart
23	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
24	6103-19	Adapter Harness	$37.62	Add to Cart
25	7834-2	Wire Saddle 2 Wires	$0.90	Add to Cart
26	7943	Battery Cable	$8.76	Add to Cart
27	8404-8	Plastic CoverRed	$3.05	Add to Cart
28	7941	Circuit Breaker 40amp Auto ResetSealed	$15.10	Add to Cart
29	7857-10	Breaker Mount Bracket	$10.78	Add to Cart
30	7940-5	Circuit Breaker Jumper	$6.30	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F023	1024 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F086	10 SAE Washer	$0.18	Add to Cart
	F090	1420x212 Hex Bolt	$1.30	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F145	440 Keps Nut	$0.22	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F491	440x38 PPHMS	$0.17	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
	F577	1024x58 Carriage Bolt	$0.17	Add to Cart
