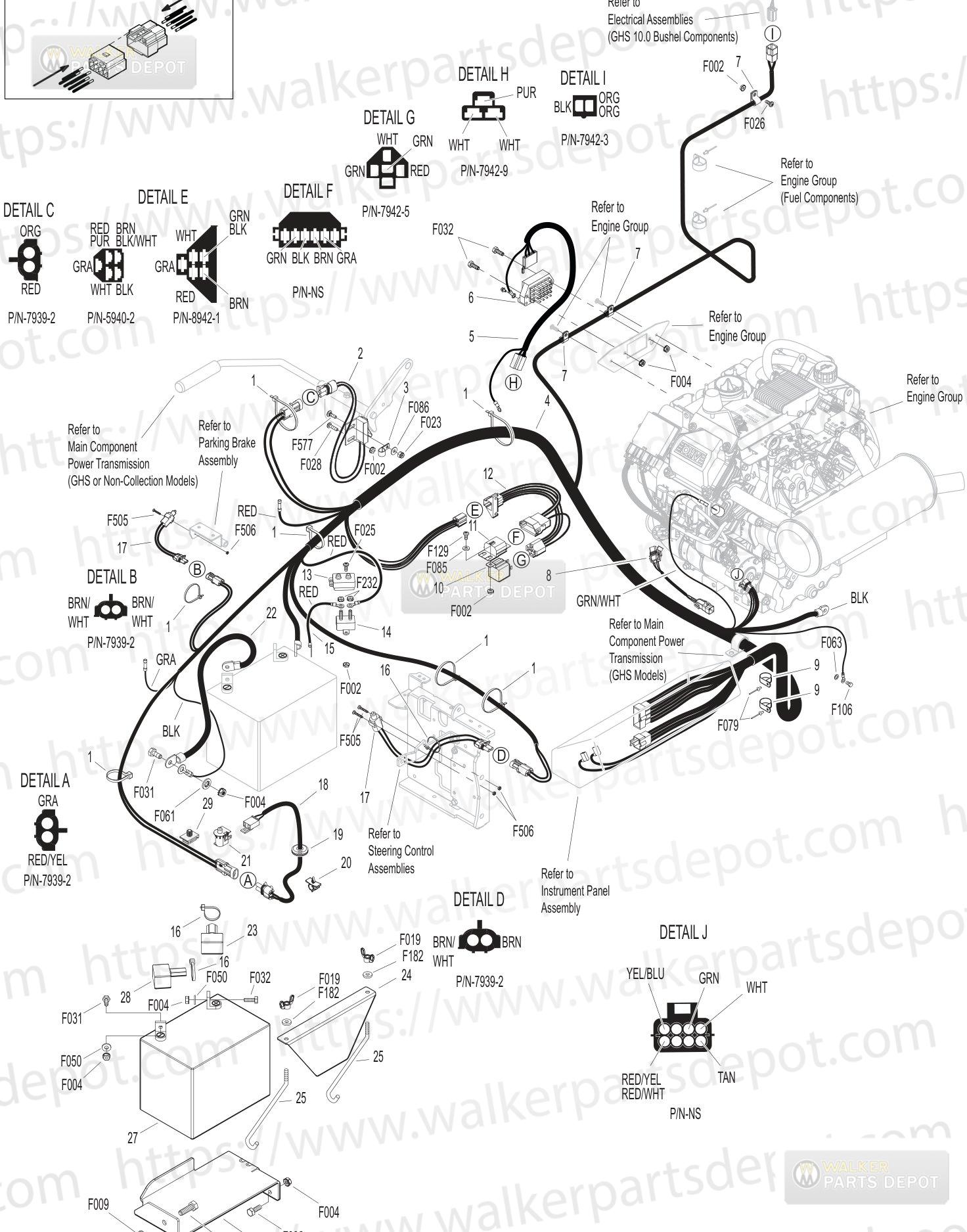

PARTS > MT MANUALS > 2025-08-26, 8000-59, Serial 189968-AND ON > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	5975-3	Cable Tie 50x7	$0.36	Add to Cart
2	5942-4	Safety Switch NO	$63.17	Add to Cart
3	5833	Cable Clamp 14	$1.30	Add to Cart
4	8940-32	Wire HarnessMT27i	$160.02	Add to Cart
5	8012-8	Adapter Harness
6	NS	Rectifier / Regulator (Rehlko/Kohler)
7	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
8	8016-12	Diagnostic Extension Wire27I	$39.56	Add to Cart
9	7833-2	Cable Clamp 1x14	$2.84	Add to Cart
10	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
11	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
12	7948-5	Time Delay Harness	$36.78	Add to Cart
13	7941-10	Circuit Breaker Cap	$6.96	Add to Cart
14	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
15	8943	Battery Lead Wire	$5.78	Add to Cart
16	5975-1	Cable Tie 18x334	$0.34	Add to Cart
17	5942-16	Safety Switch NO Delta WP	$26.64	Add to Cart
18	6104-13	Adapter HarnessMT	$16.61	Add to Cart
19	5977-6	Grommet 1x114	$1.26	Add to Cart
20	6105-3	Harness Clip	$2.88	Add to Cart
21	6104-11	Seat Switch NOComfort Seat	$13.12	Add to Cart
22	6923	Battery Cable	$13.09	Add to Cart
23	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
24	5844-3	Battery HoldDown Bar	$13.06	Add to Cart
25	5839	Hook Bolt	$9.35	Add to Cart
26	6390-6	Battery Pan
27	7910-3	Battery 12VCCA350A	$90.95	Add to Cart
28	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
29	7834-2	Wire Saddle 2 Wires	$0.90	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F023	1024 ESNA Nut	$0.34	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F085	316 Rivet Backup Washer	$0.44	Add to Cart
	F086	10 SAE Washer	$0.18	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F106	3816x58 Hex Bolt	$0.94	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
	F577	1024x58 Carriage Bolt	$0.17	Add to Cart
