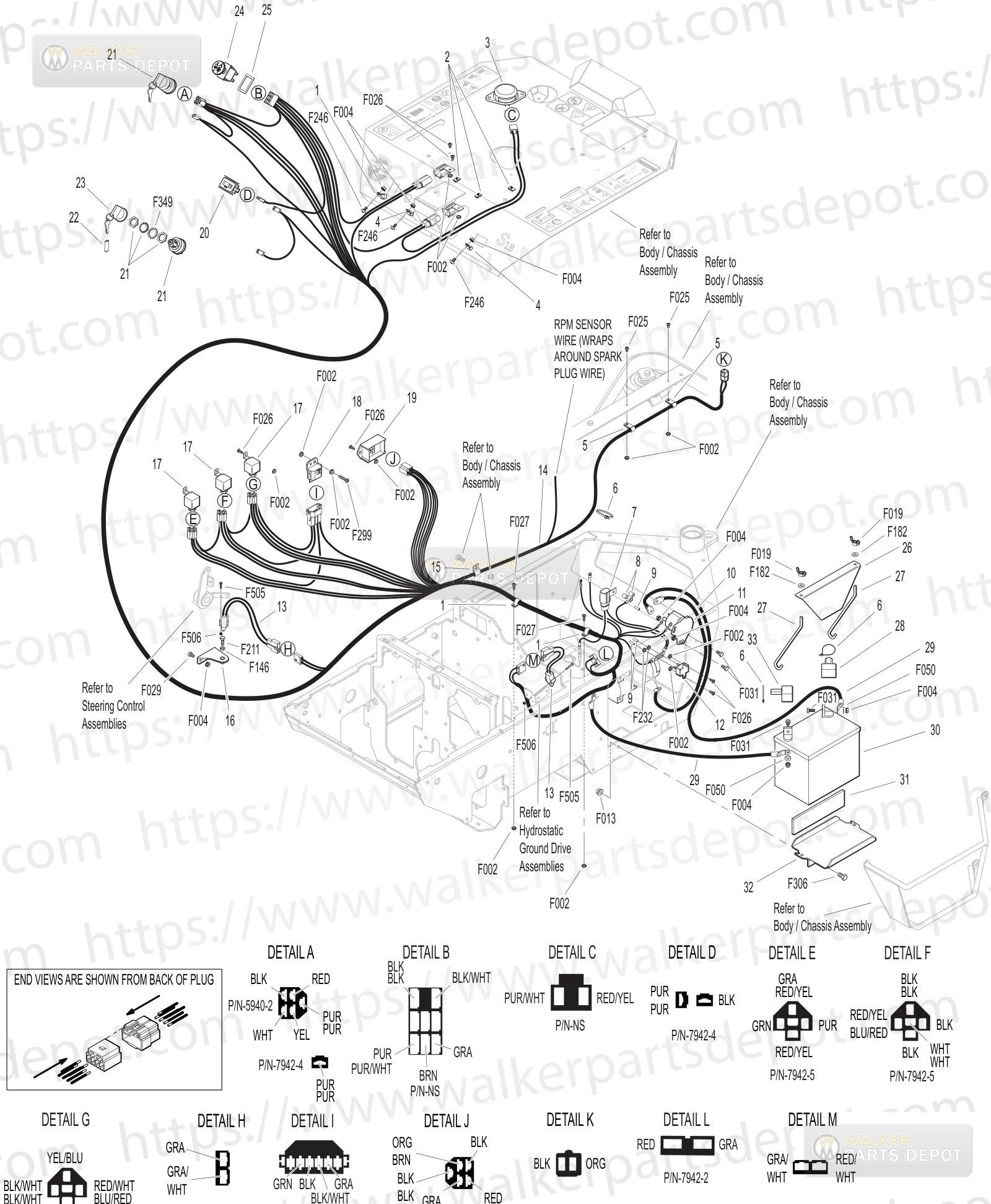

PARTS > MS MANUALS > 2025-09-29, 5000-92, Serial 190349-AND ON > Electrical Assembly:

Diagram #	Part #	Description	Price	Add to Cart
1	6833	Cable Clamp 916x10	$1.20	Add to Cart
2	7834-3	Wire Saddle 3 Wires	$1.20	Add to Cart
3	5103-12	NR Seat Switch 51033 Seat	$46.62	Add to Cart
4	5835-1	Clamp Half 14	$3.12	Add to Cart
5	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
6	5975-1	Cable Tie 18x334	$0.34	Add to Cart
7	4940-15	30A Fuse Jumper Wire Assembly	$15.93	Add to Cart
8	6681-23	Plastic CapBlack	$0.17	Add to Cart
9	8404-8	Plastic CoverRed	$3.05	Add to Cart
10	6922	Battery Cable	$10.78	Add to Cart
11	4929	Starter Solenoid	$33.88	Add to Cart
12	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
13	5942-8	Safety Switch NO Delta Side Mount	$31.68	Add to Cart
14	5943-11	"Wire Harness MS18 "	$294.84	Add to Cart
15	5835-4	Cable Clamp 12 343 Hole	$2.83	Add to Cart
16	4024-13	Safety Switch Plate	$10.92	Add to Cart
17	6941-9	Relay Switch 3040AMP	$9.30	Add to Cart
18	7948-6	Time Delay Module 5 Second Delay	$25.08	Add to Cart
19	4410-16	Soft Start Control	$64.41	Add to Cart
20	8990-1	Hourmeter Global	$25.89	Add to Cart
21	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
22	7854	Plastic TipRed	$0.50	Add to Cart
23	8960-3	Key Set WUmbrella	$14.99	Add to Cart
24	4950	PTO Switch	$21.12	Add to Cart
25	4950-11	PTO Switch Spacer	$2.34	Add to Cart
26	5844-3	Battery HoldDown Bar	$13.06	Add to Cart
27	5839	Hook Bolt	$9.35	Add to Cart
28	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
29	4940-8	Starter Solenoid Cable	$9.43	Add to Cart
30	7910-3	Battery 12VCCA350A	$90.95	Add to Cart
31	5910-6	Battery Spacer Pad	$11.64	Add to Cart
32	6390-3	Battery Pan
33	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F146	1420 Jam Nut	$0.18	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F211	1420x78 Hex Bolt	$0.65	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F246	1420x12 PTHMS	$0.34	Add to Cart
	F299	1024x1 PPHMS	$0.36	Add to Cart
	F306	3816x34 Hex Bolt	$1.06	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F505	632x78 Hex Trim MS SS	$1.75	Add to Cart
	F506	632 Nylock Nut	$2.35	Add to Cart
