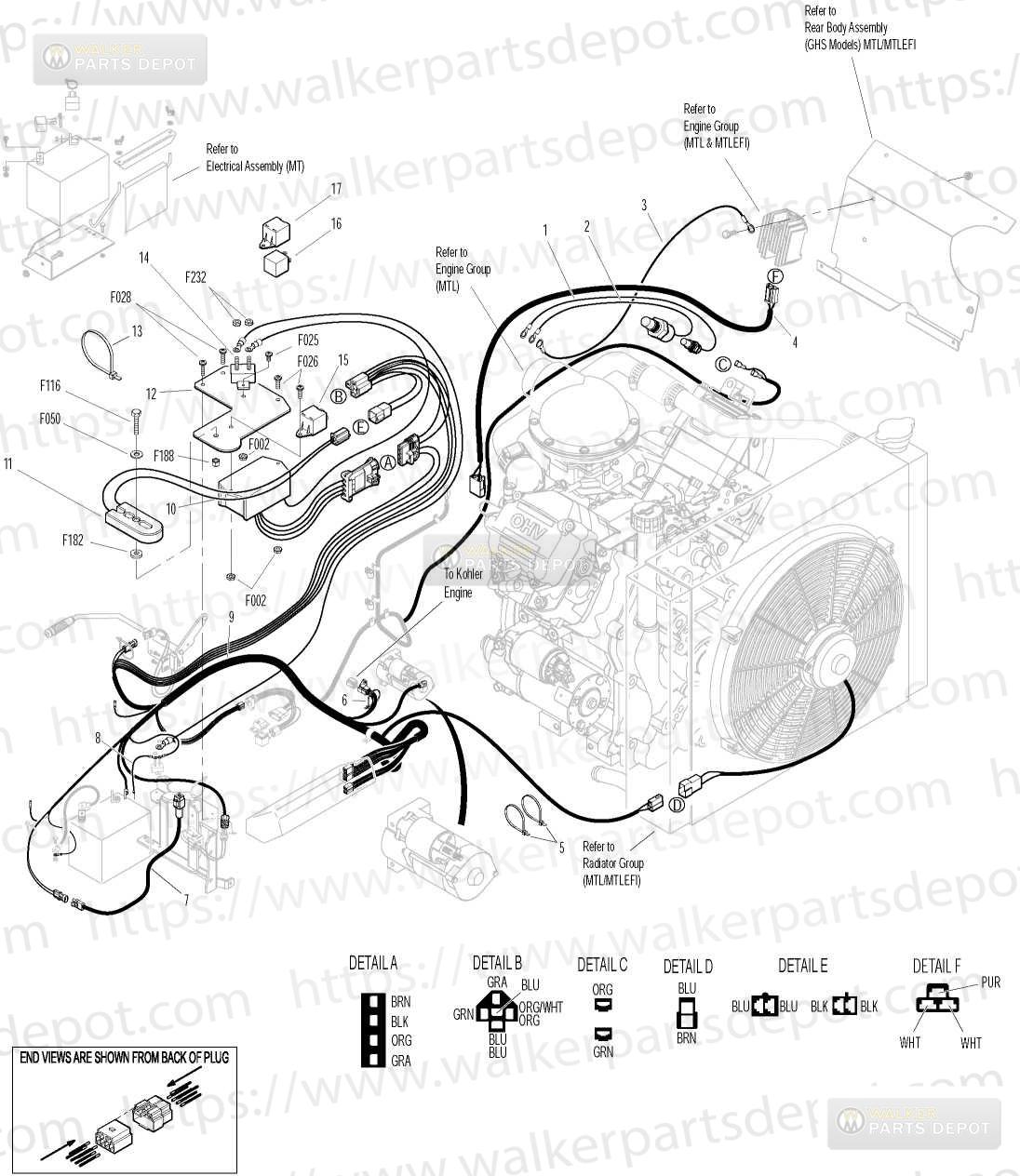

PARTS > MT MANUALS > 2009-04-01, 8000-15, Serial 100103-124811 > Electrical Assembly - MTL:

Diagram #	Part #	Description	Price	Add to Cart
1	7306-10	Switch 235Deg1418NPT	$64.18	Add to Cart
2	7306-11	Switch 205Deg3818NPT	$66.32	Add to Cart
3	8012-7	Ground Wire
4	8012-5	Regulator Adpt Harness25	$25.04	Add to Cart
5	5975-1	Cable Tie 18x334	$0.34	Add to Cart
6	5975-3	Cable Tie 50x7	$0.36	Add to Cart
7	6103-19	Adapter Harness	$37.62	Add to Cart
8	7943	Battery Cable	$8.76	Add to Cart
9	8940-8	Wire HarnessMTL	$146.48	Add to Cart
10	7428-2	Fan Cntrl Module WP Plug	$200.97	Add to Cart
11	7433	Resistor, Ceramic / .4 OHM
12	8531-3	Reversing Module Mount	$17.33	Add to Cart
13	5975-7	Cable Tie 50x11	$0.72	Add to Cart
14	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
15	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
16	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
17	6941-7	Relay Mount	$3.34	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
1	7306-10	Switch 235Deg1418NPT	$64.18	Add to Cart
2	7306-11	Switch 205Deg3818NPT	$66.32	Add to Cart
3	8012-7	Ground Wire
4	8012-5	Regulator Adpt Harness25	$25.04	Add to Cart
5	5975-1	Cable Tie 18x334	$0.34	Add to Cart
6	5975-3	Cable Tie 50x7	$0.36	Add to Cart
7	6103-19	Adapter Harness	$37.62	Add to Cart
8	7943	Battery Cable	$8.76	Add to Cart
9	8940-8	Wire HarnessMTL	$146.48	Add to Cart
10	7428-2	Fan Cntrl Module WP Plug	$200.97	Add to Cart
11	7433	Resistor, Ceramic / .4 OHM
12	8531-3	Reversing Module Mount	$17.33	Add to Cart
13	5975-7	Cable Tie 50x11	$0.72	Add to Cart
14	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
15	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
16	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
17	6941-7	Relay Mount	$3.34	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
