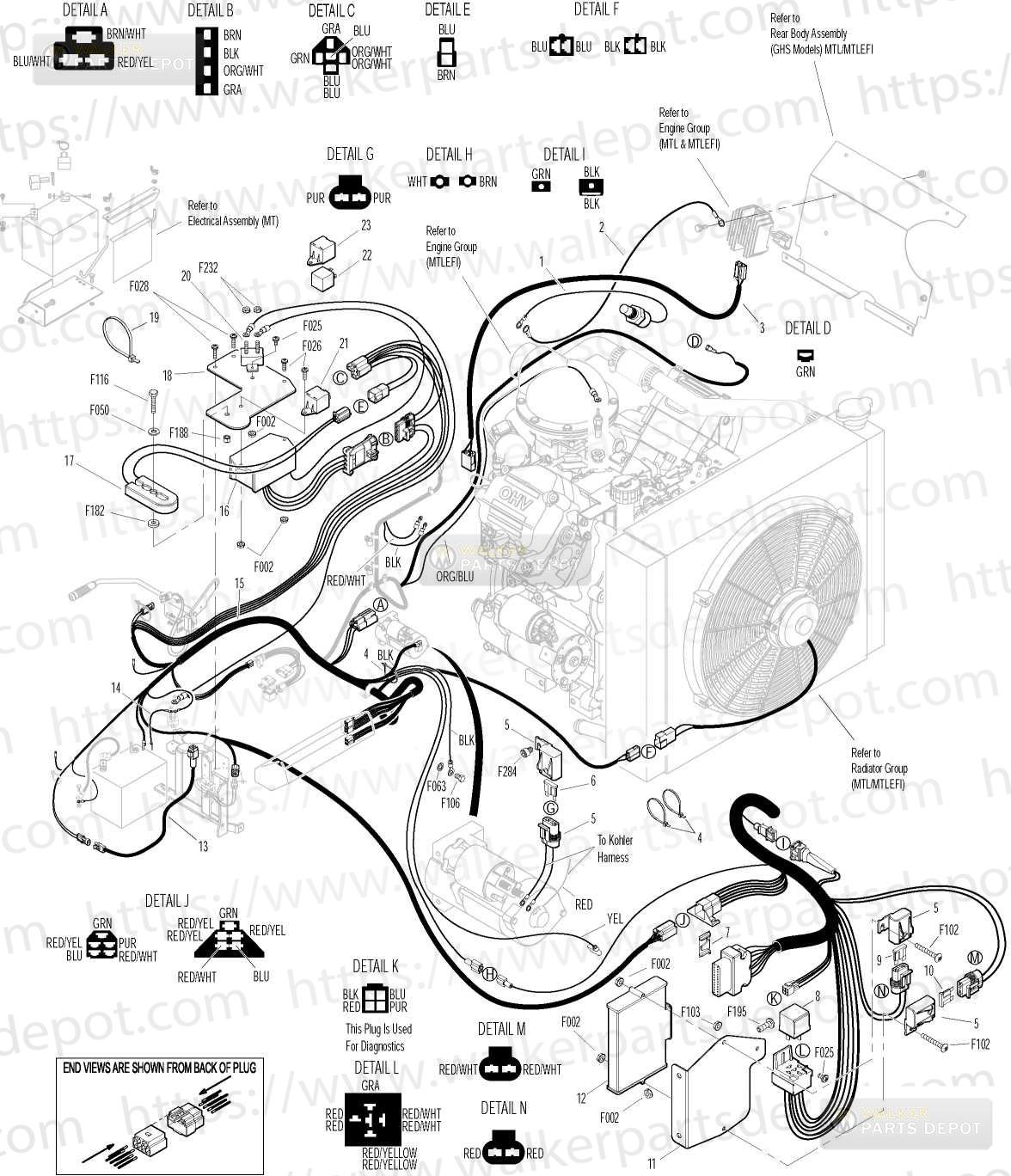

PARTS > MT MANUALS > 2009-04-01, 8000-15, Serial 100103-124811 > Electrical Assembly - MTL EFI:

Diagram #	Part #	Description	Price	Add to Cart
1	7306-11	Switch 205Deg3818NPT	$66.32	Add to Cart
2	8012-7	Ground Wire
3	8012-6	Regulator Adpt Harness	$20.87	Add to Cart
4	5975-1	Cable Tie 18x334	$0.34	Add to Cart
5	NS	Fuse Holder (Kohler)
6	6941-4	30 Amp Fuse	$1.44	Add to Cart
7	NS	ECU Harness Clip
8	NS	Relay (Kohler)
9	6941-1	20 Amp Fuse	$1.87	Add to Cart
10	6941-3	10 Amp Fuse	$1.44	Add to Cart
11	8940-7	ECU Mount PlateMTL31	$11.50	Add to Cart
12	NS	ECU (Kohler)
13	6103-19	Adapter Harness	$37.62	Add to Cart
14	7943	Battery Cable	$8.76	Add to Cart
15	8940-9	NR Wire HarnessMTL31	$401.10	Add to Cart
16	7428-2	Fan Cntrl Module WP Plug	$200.97	Add to Cart
17	7433	Resistor, Ceramic / .4 OHM
18	8531-3	Reversing Module Mount	$17.33	Add to Cart
19	5975-7	Cable Tie 50x11	$0.72	Add to Cart
20	7941	Circuit Breaker 40amp Auto ResetSealed	$15.10	Add to Cart
21	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
22	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
23	6941-7	Relay Mount	$3.34	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F102	1024x112 PTHMS	$0.50	Add to Cart
	F103	1024x2 PTHMS	$1.18	Add to Cart
	F106	3816x58 Hex Bolt	$0.94	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F195	1420x34 PPHMSSS	$1.18	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F284	M6x10x8 SCH Screw	$0.79	Add to Cart
1	7306-11	Switch 205Deg3818NPT	$66.32	Add to Cart
2	8012-7	Ground Wire
3	8012-6	Regulator Adpt Harness	$20.87	Add to Cart
4	5975-1	Cable Tie 18x334	$0.34	Add to Cart
5	NS	Fuse Holder (Kohler)
6	6941-4	30 Amp Fuse	$1.44	Add to Cart
7	NS	ECU Harness Clip
8	NS	Relay (Kohler)
9	6941-1	20 Amp Fuse	$1.87	Add to Cart
10	6941-3	10 Amp Fuse	$1.44	Add to Cart
11	8940-7	ECU Mount PlateMTL31	$11.50	Add to Cart
12	NS	ECU (Kohler)
13	6103-19	Adapter Harness	$37.62	Add to Cart
14	7943	Battery Cable	$8.76	Add to Cart
15	8940-9	NR Wire HarnessMTL31	$401.10	Add to Cart
16	7428-2	Fan Cntrl Module WP Plug	$200.97	Add to Cart
17	7433	Resistor, Ceramic / .4 OHM
18	8531-3	Reversing Module Mount	$17.33	Add to Cart
19	5975-7	Cable Tie 50x11	$0.72	Add to Cart
20	7941	Circuit Breaker 40amp Auto ResetSealed	$15.10	Add to Cart
21	6942	Relay Switch 20 40AMP NC	$11.33	Add to Cart
22	6941-6	Relay Switch 20 40AMP	$10.52	Add to Cart
23	6941-7	Relay Mount	$3.34	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F102	1024x112 PTHMS	$0.50	Add to Cart
	F103	1024x2 PTHMS	$1.18	Add to Cart
	F106	3816x58 Hex Bolt	$0.94	Add to Cart
	F116	1420x114 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F195	1420x34 PPHMSSS	$1.18	Add to Cart
	F232	1032 Keps Nut	$0.50	Add to Cart
	F284	M6x10x8 SCH Screw	$0.79	Add to Cart
