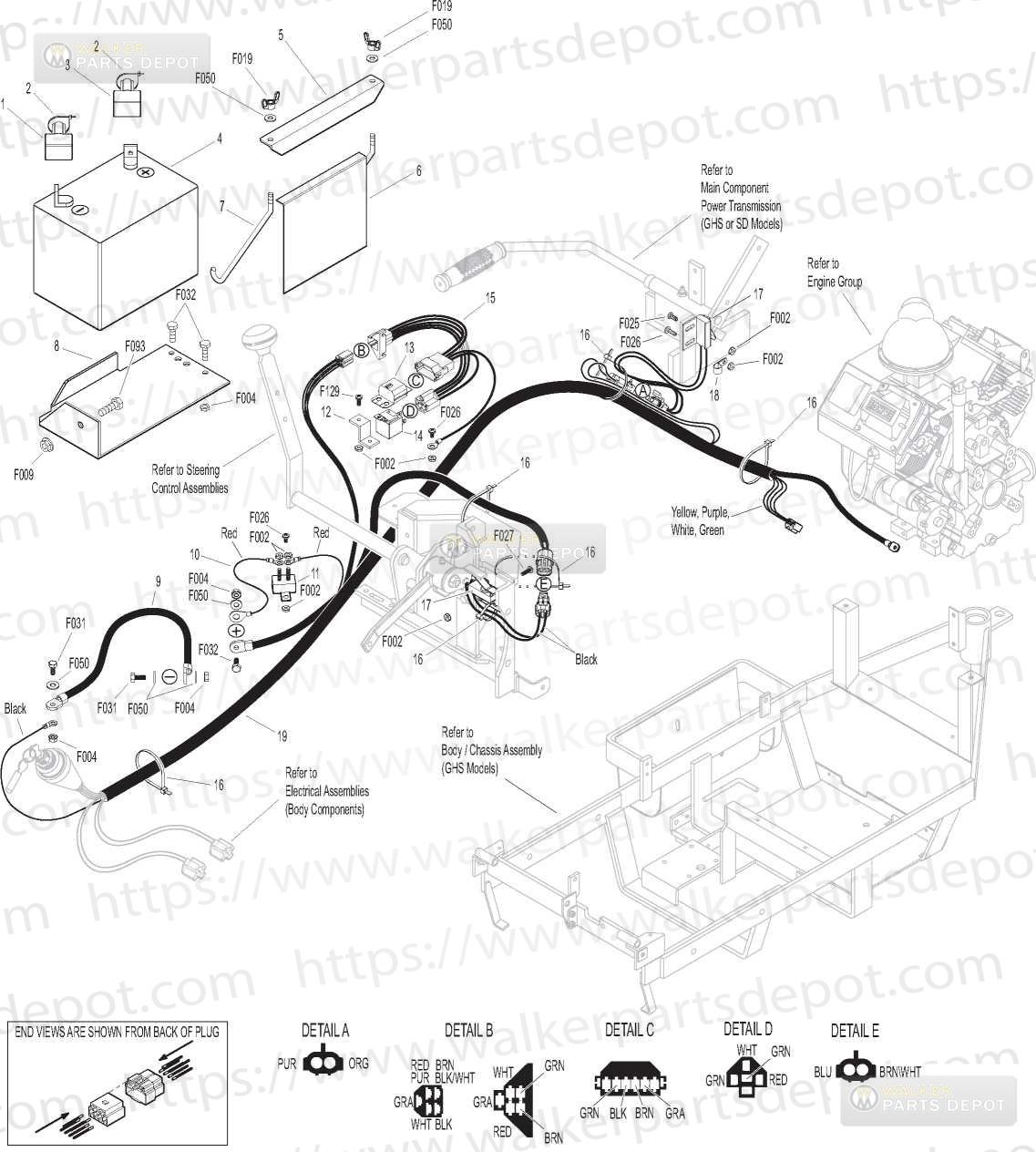

PARTS > MC MANUALS > 2003-11-01, 6000-9, Serial 60467-66219 > Electrical Assembly Chassis:

Diagram #	Part #	Description	Price	Add to Cart
1	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
2	5975-1	Cable Tie 18x334	$0.34	Add to Cart
3	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
4	5910	Battery (12VU1-SP30, Dry)
5	5844	Battery HoldDown Bar	$11.42	Add to Cart
6	6392	Battery Protector Plate
7	5839	Hook Bolt	$9.35	Add to Cart
8	6390	Battery Pan	$16.30	Add to Cart
9	6923	Battery Cable	$13.09	Add to Cart
10	8943	Battery Lead Wire	$5.78	Add to Cart
11	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
12	7672	Mount Bracket	$5.04	Add to Cart
13	7948-1	Time Delay Module
14	6941	Relay Switch (30/40 Amp)
15	7948-5	Time Delay Harness	$36.78	Add to Cart
16	5975-3	Cable Tie 50x7	$0.36	Add to Cart
17	5942-5	Safety Switch NO	$61.24	Add to Cart
18	5833	Cable Clamp 14	$1.30	Add to Cart
19	6940-4	NR Wire Harness C1618HP01	$194.04	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F093	51618x1 Hex Bolt	$0.94	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
