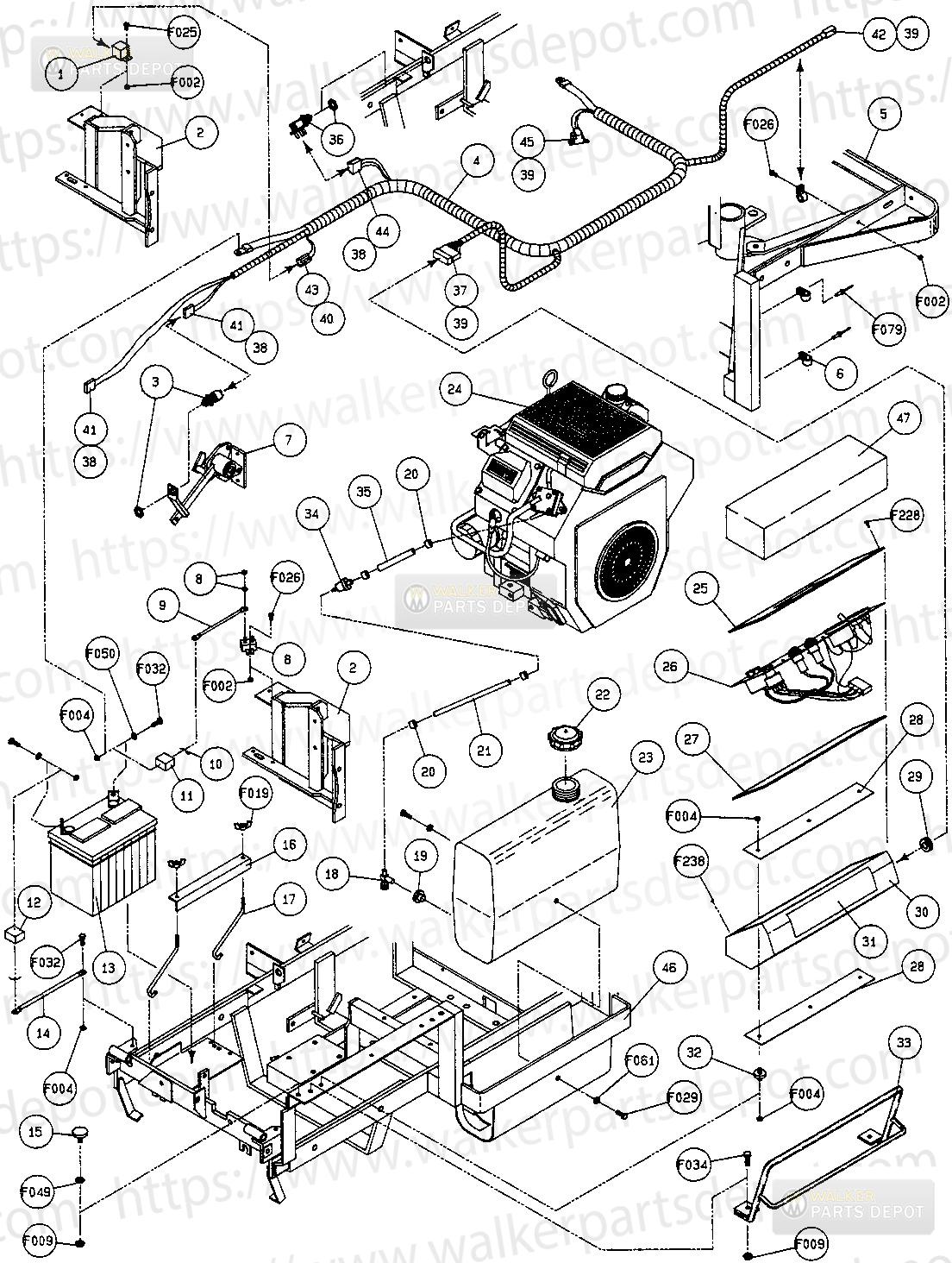

PARTS > MT MANUALS > 1993-03-01, 8895-1, Serial 12717-21328 > Electrical Fuel System:

Diagram #	Part #	Description	Price	Add to Cart
1	6941	Relay Switch
2	7209	Bridge Assembly (MD/MT)
3	5942	Safety Switch NO	$20.50	Add to Cart
4	8940	Wire Harness (MT)
5	7516	NRGHS Rear Bumper TEFI	$281.61	Add to Cart
6	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
7	5140-3	NR FSC Control AssemblyS	$118.23	Add to Cart
8	8941	Circuit Breaker 30Amp Auto ResetSealed	$11.00	Add to Cart
9	8943	Battery Lead Wire	$5.78	Add to Cart
10	5973-1	Cable Tie, 18 X 3-3/4
11	5933	Battery Trmnl Insul Red	$3.34	Add to Cart
12	5932	Battery Trmnl InslBlk	$3.26	Add to Cart
13	5910	Battery (12V U1-SP30)
14	6923	Battery Cable	$13.09	Add to Cart
15	7844	Rubber Bumper 125x250	$4.06	Add to Cart
16	5844	Battery HoldDown Bar	$11.42	Add to Cart
17	5839	Hook Bolt	$9.35	Add to Cart
18	5083	Fuel ShutOff Valve	$16.12	Add to Cart
19	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
20	5879-3	Hose Clamp 12	$0.65	Add to Cart
21	8015	Hose 14x1412	$7.32	Add to Cart
22	5082	Fuel Tank Cap
23	6046	Fuel Tank (3 Gallon Molded)
24	NS	20-HP Engine (Kohler CH20S, Spec #64511)
25	7307	Panel Frame
26	8306	NR Instrument Panel AssyT95	$312.06	Add to Cart
27	7386	Panel Gasket	$11.53	Add to Cart
28	7391	Panel Box Mount Plate	$4.80	Add to Cart
29	8977	Grommet 18x78	$1.74	Add to Cart
30	8385	Panel Box WGraphic	$82.89	Add to Cart
31	7825	Walker Decal
32	7307-1	Shock Mount 10x25 Double Stud	$5.66	Add to Cart
33	7422	Panel Guard	$29.19	Add to Cart
34	5020	Fuel FilterNon EFI	$5.94	Add to Cart
35	8015-1	Hose 14x312	$3.98	Add to Cart
36	7942	NR Safety Switch	$59.14	Add to Cart
37	8942-2	8Way Connector F	$7.63	Add to Cart
38	5940-4	1614 GA Spg Ldd TermF	$1.67	Add to Cart
39	5940-5	1614 GA Spg Loaded Term M	$1.75	Add to Cart
40	5940-7	NR Wire Clip F 79408940	$2.47	Add to Cart
41	7942-2	2Way Connector M	$4.32	Add to Cart
42	7942-3	2Way Connector F	$3.79	Add to Cart
43	7942-5	5Way Connector M	$3.50	Add to Cart
44	7942-6	6Way Connector M	$3.05	Add to Cart
45	8942-1	5Way Connector F	$4.56	Add to Cart
46	8300	NR Chassis FrameT	$796.95	Add to Cart
47	7307-2	Instrument Panel Cover	$163.07	Add to Cart
F002	F002	1024 Keps Nut	$0.18	Add to Cart
F004	F004	1420 Keps Nut	$0.34	Add to Cart
F009	F009	51618 Whiz Locknut	$0.50	Add to Cart
F019	F019	1420 ESNA Wing Nut	$4.06	Add to Cart
F025	F025	1024x38 PPHMS	$0.18	Add to Cart
F026	F026	1024x12 PPHMS	$0.18	Add to Cart
F029	F029	1420x12 Hex Bolt	$0.50	Add to Cart
F032	F032	1420x34 Hex Bolt	$0.50	Add to Cart
F034	F034	51618x34 Hex Bolt	$0.79	Add to Cart
F049	F049	516 SAE Washer	$0.18	Add to Cart
F050	F050	14 SAE Washer	$0.18	Add to Cart
F061	F061	14 Star Lock Wshr	$0.18	Add to Cart
F079	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
F228	F228	6x58 PPHSMS SS	$0.34	Add to Cart
F238	F238	J Clip Instrument Panel	$0.50	Add to Cart
