Part Lookup Tool

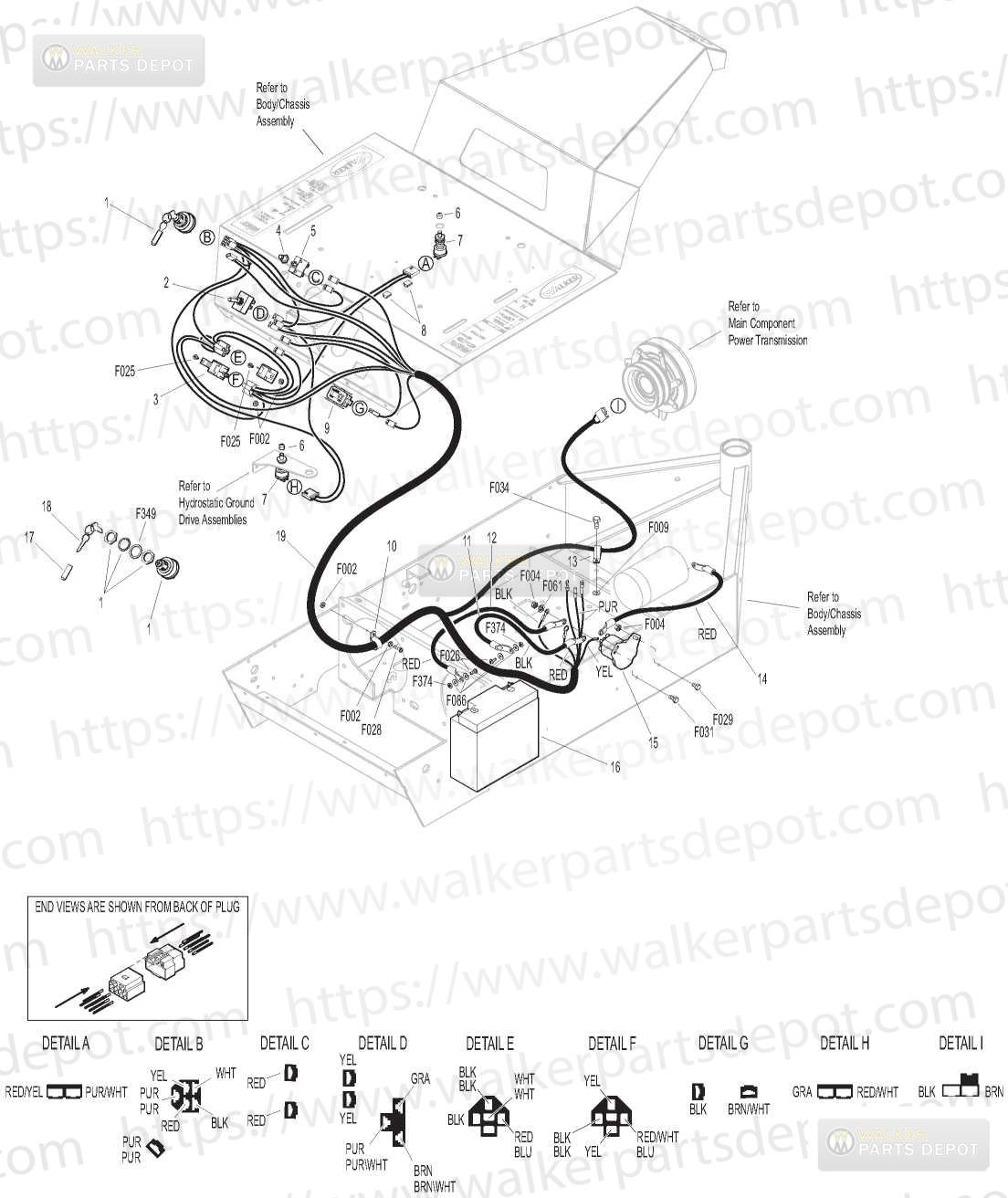

PARTS > MB MANUALS > 2004-06-01, 4000-1, Serial 68441-79431 > Electrical Schematic:

Diagram #	Part #	Description	Price	Add to Cart
1	8960-15	Ignition Switch WKeys	$34.63	Add to Cart
2	6950	NR PTO Switch	$40.68	Add to Cart
3	6941	Relay Switch 30/40AMP (NC)
4	7941-3	Boot Circuit Breaker	$8.90	Add to Cart
5	7941-6	Circuit Breaker (15AMP)
6	5942-1	Switch Boot Fits PN 5942	$1.74	Add to Cart
7	5942	Safety Switch NO	$20.50	Add to Cart
8	5975-5	Wire ClipSelfMount	$1.30	Add to Cart
9	8990-1	Hourmeter Global	$25.89	Add to Cart
10	5835	Cable Clamp 34	$4.13	Add to Cart
11	6923	Battery Cable	$13.09	Add to Cart
12	4940-4	Battery Cable 12	$8.81	Add to Cart
13	7832	Wire Clamp 1316x10	$2.71	Add to Cart
14	4940-3	Starter Solenoid Cable 412	$7.22	Add to Cart
15	4929	Starter Solenoid	$33.88	Add to Cart
16	4910	Battery CCA220	$125.58	Add to Cart
17	7854	Plastic TipRed	$0.50	Add to Cart
18	8960-2	Ignition Key (1 Set)
19	4940	NR Wire Harness	$52.50	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F086	10 SAE Washer	$0.18	Add to Cart
	F349	Washer 835ID 1122ODSS	$1.66	Add to Cart
	F374	1024 Hex Nut	$0.18	Add to Cart
