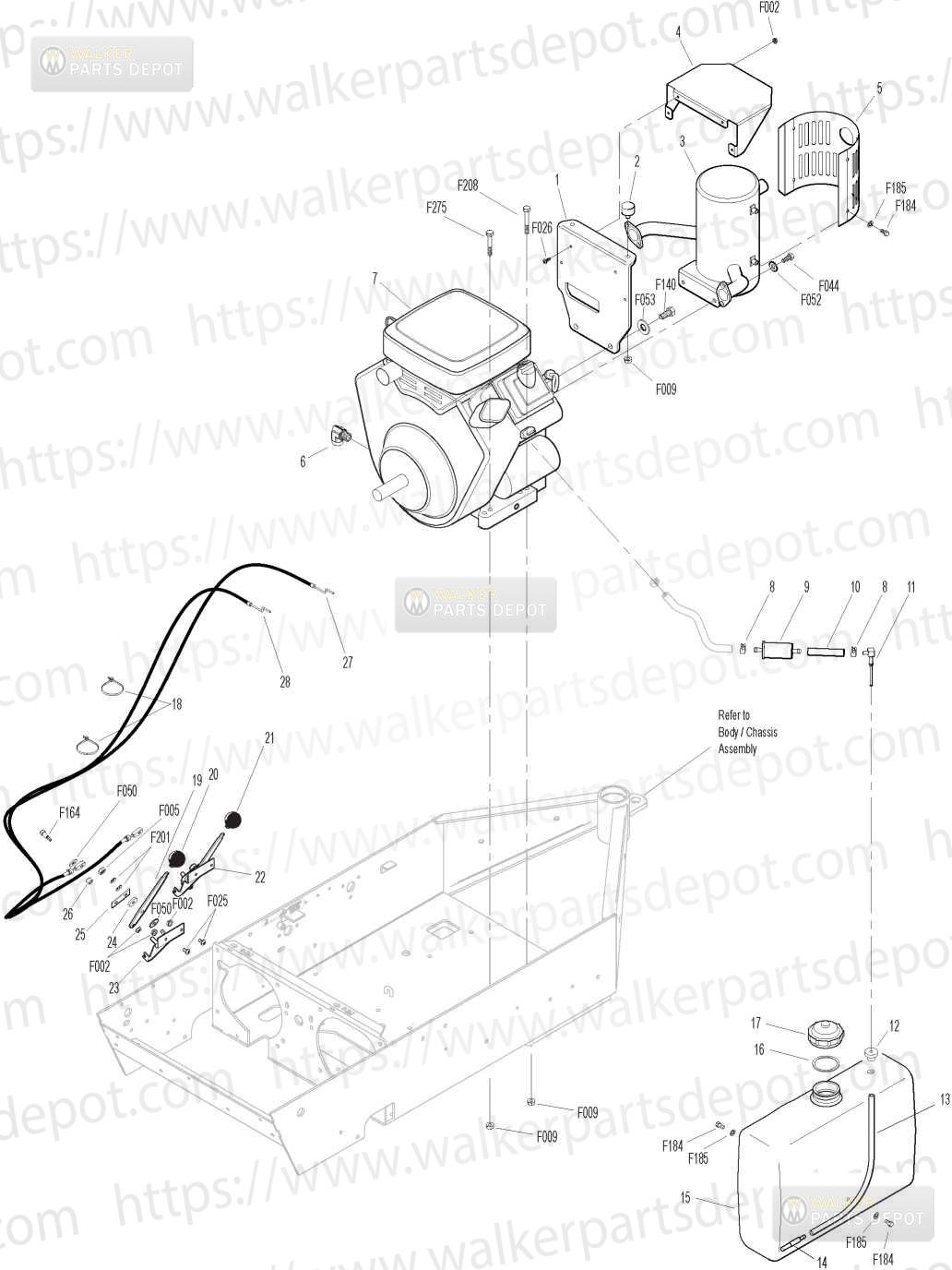

PARTS > MB MANUALS > 2006-09-01, 4000-3, Serial 85248-96430 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	4104-2	Body Support07	$23.06	Add to Cart
2	4845	Rubber Bumper 10x625	$8.50	Add to Cart
3	4013	NR Muffler MB07	$262.71	Add to Cart
4	4013-5	Heat Shield	$34.06	Add to Cart
5	4013-3	Muffler Heat Shield MB07	$25.15	Add to Cart
6	4010-5	38 NPT Street L	$10.06	Add to Cart
7	NS	18 HP Engine (Briggs & Stratton 350447)
8	5879-3	Hose Clamp 12	$0.65	Add to Cart
9	5020	Fuel FilterNon EFI	$5.94	Add to Cart
10	5086-8	NR Hose 14x212	$3.98	Add to Cart
11	5083-2	Tank Tube Elbow	$11.19	Add to Cart
12	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
13	5086	NR Hose 14x18	$14.40	Add to Cart
14	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
15	4046	Fuel Tank, 3.0 Gal. Gas (Fuel Cap Centered) (Includes Items # 16 & 17)
16	5082-2	NR Fuel Cap Seal	$2.16	Add to Cart
17	5082	Fuel Tank Cap (Includes Item # 16)
18	5975-3	Cable Tie 50x7	$0.36	Add to Cart
19	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
20	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
21	5108-6	NR Choke Cntrl KnobBlack	$5.74	Add to Cart
22	7108	Control Assembly	$30.21	Add to Cart
	4108-2	NR Throttle CntrlCable Assy	$53.99	Add to Cart
	4109-2	NR Choke Cntrl Cable Assy	$40.44	Add to Cart
23	5108-8	Control Bracket	$9.26	Add to Cart
24	5108-10	Friction Washer 125	$1.98	Add to Cart
25	5108-7	Control Lock Tab	$2.52	Add to Cart
26	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
27	4108-3	NR Control Cable 64	$16.08	Add to Cart
28	4109-3	NR Control Cable 66	$17.58	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F044	51624x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F052	516 Ext Star Lock Wshr	$0.18	Add to Cart
	F053	716 Int Star Lock Wshr	$0.65	Add to Cart
	F140	71614x1 Hex Bolt	$1.87	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F208	51618x214 Hex Bolt	$1.54	Add to Cart
	F275	51618x2 Hex Bolt	$1.42	Add to Cart
