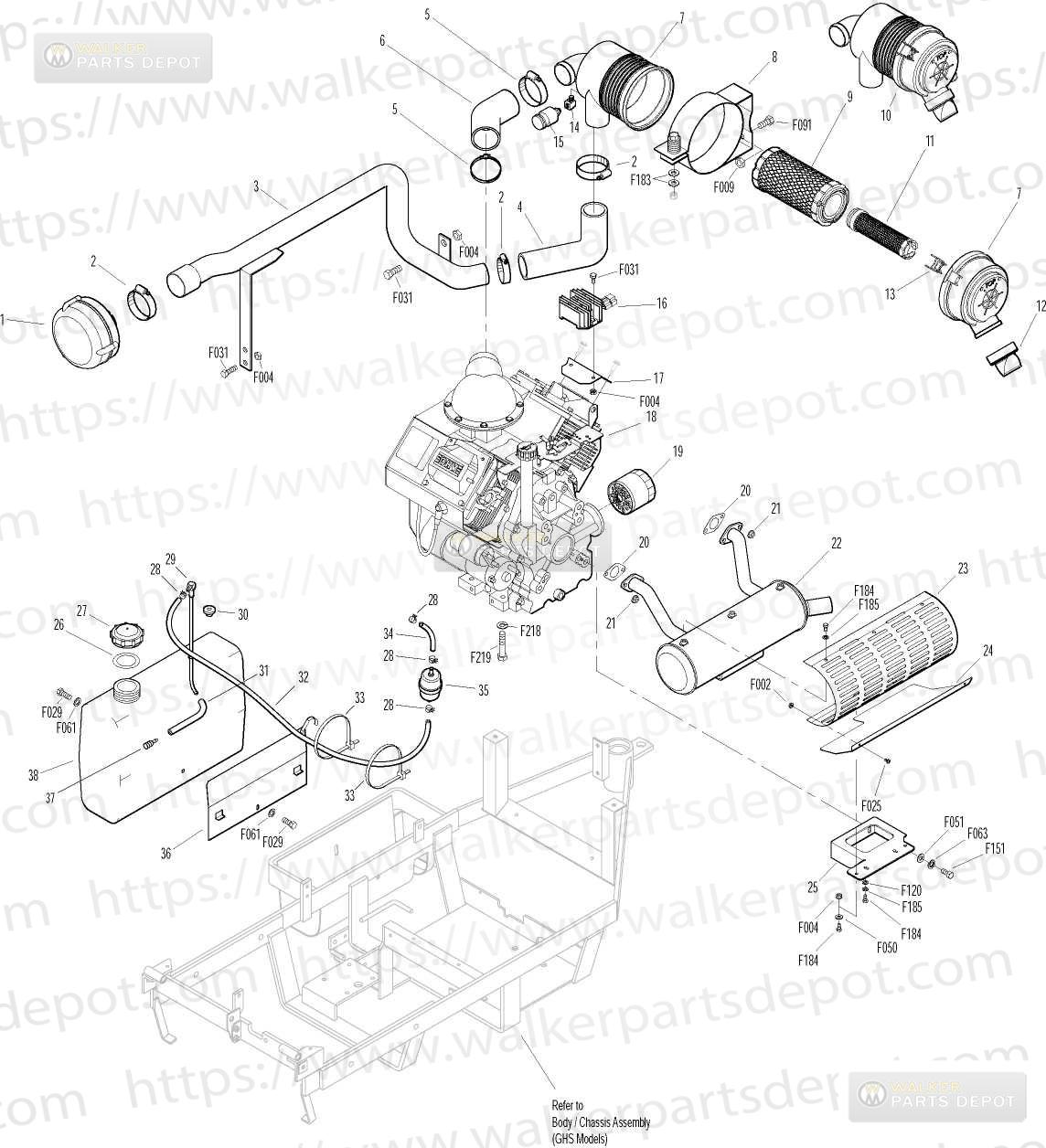

PARTS > MC MANUALS > 2010-06-15, 6000-14, Serial 100982-125717 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	7026-2	Remote Precleaner	$59.33	Add to Cart
2	7840	Hose Clamp (1-5/16 - 2-1/4)	$4.13	Add to Cart
3	6028-1	(NR) Precleaner Tube	$64.89	Add to Cart
4	7027	(NR) Elbow Precleaner	$15.05	Add to Cart
5	6029	Hose Clamp (1-13/16 - 2-3/4)	$3.26	Add to Cart
6	6087-1	(NR) Air Intake Hose/MC	$23.06	Add to Cart
7	5088-11	Air Cleaner Cap	$42.02	Add to Cart
8	5088-2	Air Cleaner Band C18	$28.01	Add to Cart
9	5090-1	Air Cleaner Cartridge	$35.49	Add to Cart
10	6090-10	(NR) Air Cleaner Assembly	$103.03	Add to Cart
11	5090-3	Safety Filter Insert	$24.48	Add to Cart
12	5090-2	Vacuator Valve	$12.75	Add to Cart
13	5088-5	Air Cleaner Draw Latch	$12.20	Add to Cart
14	5091-9	Street Elbow 90'(1/8x1/8)	$6.72	Add to Cart
15	5091-11	Air Flow Indicator & Nipple
16	NS	Rectifier
17	8016-4	Regulator Mount	$9.90	Add to Cart
18	NS	20 HP Engine (Kohler CH20S, Spec. # 64757)
19	NS	Oil Filter (Kohler 2805001)
20	NS	Gasket (Kohler 2404102)
21	NS	Nut (Kohler M-0841080)
22	6013-3	Muffler/20HP	$225.88	Add to Cart
23	6013-7	Muffler Heat Shield 20HP	$40.48	Add to Cart
24	6013-6	(NR) Muffler Heat Dflctor/20HP	$14.98	Add to Cart
25	6013-5	Muffler Brace/20HP	$18.24	Add to Cart
26	5082-2	(NR) Fuel Cap Seal	$2.16	Add to Cart
27	5082	Fuel Tank Cap (Includes Item # 26)
28	5879-3	Hose Clamp (1/2)	$0.65	Add to Cart
29	5083-6	Tank Tube Elbow, 3 Gallon
30	5083-1	Bushing Rubber (Fits 5083)	$2.47	Add to Cart
31	5086-7	(NR) Hose (1/4x6)	$12.40	Add to Cart
32	8015-3	(NR) Hose (1/4x24-1/2)	$9.84	Add to Cart
33	5975-3	"Cable Tie (50#x7"")"	$0.36	Add to Cart
34	NS	Fuel Line, Engine (Kohler)
35	5020	Fuel Filter/Non EFI	$5.94	Add to Cart
36	8023-1	Fuel Tank Support/MC	$15.44	Add to Cart
37	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
38	6046-2	Fuel Tank, 3.0 Gallon, Gas (Includes Items # 26, 27 & 30)
	F002	10-24 Keps Nut	$0.18	Add to Cart
	F004	1/4-20 Keps Nut	$0.34	Add to Cart
	F009	5/16-18 Whiz Locknut	$0.50	Add to Cart
	F025	10-24x3/8 PPHMS	$0.18	Add to Cart
	F029	1/4-20x1/2 Hex Bolt	$0.50	Add to Cart
	F031	1/4-20x5/8 Hex Bolt	$0.50	Add to Cart
	F050	1/4 SAE Washer	$0.18	Add to Cart
	F051	3/8 SAE Washer	$0.65	Add to Cart
	F061	1/4 Star Lock Wshr	$0.18	Add to Cart
	F063	3/8 Int. Star Lock Washer	$0.18	Add to Cart
	F091	5/16-18x5/8 Hex Bolt	$0.65	Add to Cart
	F120	AN960416 Washer	$0.29	Add to Cart
	F151	3/8-16x7/8 Hex Bolt	$1.18	Add to Cart
	F183	.312x.700x.074 Washer	$0.58	Add to Cart
	F184	1/4-20x1/2 Hex Bolt SS	$1.30	Add to Cart
	F185	1/4 Int. Star Lck Wshr/SS	$0.18	Add to Cart
	F218	7/16 Split Lock Washer	$0.34	Add to Cart
	F219	7/16-14x1-1/4 Hex Bolt	$2.06	Add to Cart
