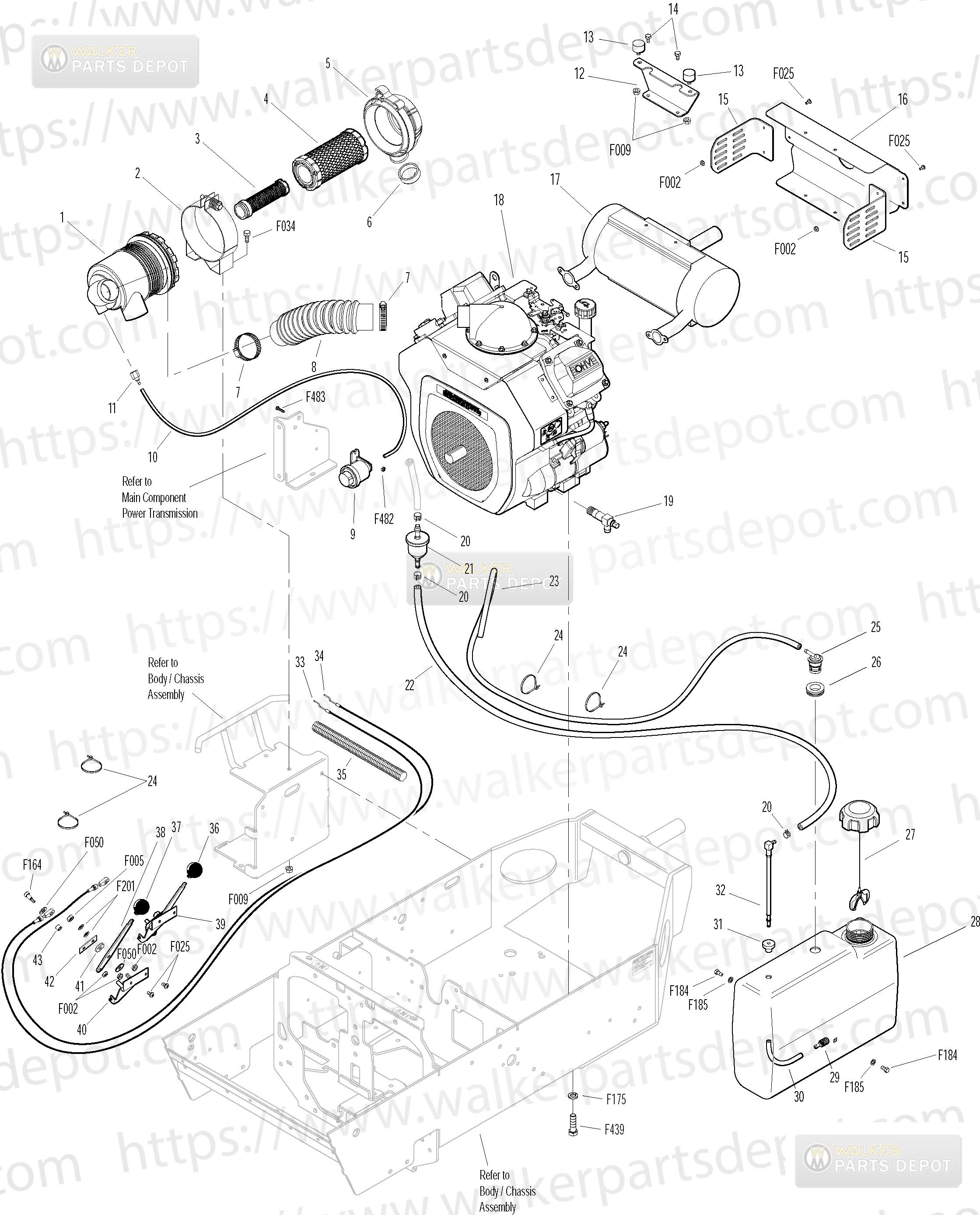

PARTS > MB MANUALS > 2013-10-01, 4000-7, Serial 124800-137380 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	4088-10	Air Cleaner Assembly	$216.72	Add to Cart
2	2088-1	Air Cleaner Band
3	2090-3	Safety Filter Insert	$33.70	Add to Cart
4	2090-1	Air Cleaner Cartridge	$52.14	Add to Cart
5	2088-2	Air Cleaner Cap	$33.66	Add to Cart
6	2090-2	Vacuator Valve	$11.68	Add to Cart
7	7840	Hose Clamp 1516 214	$4.13	Add to Cart
8	2012	NR Flex Hose 134x2	$21.08	Add to Cart
9	5091-6	Air Flow Indicator W Brkt Vacuum 10 H2O	$25.61	Add to Cart
10	M258	Vacuum Hose	$3.26	Add to Cart
11	5091-5	18 Pipe Thread Female WBarb	$10.01	Add to Cart
12	4104-3	NR Body Support12	$15.98	Add to Cart
13	4845	Rubber Bumper 10x625	$8.50	Add to Cart
14	NS	Bolt (Kohler)
15	2013-4	Shield Side	$11.93	Add to Cart
16	2013-3	Muffler Heat Shield	$39.91	Add to Cart
17	NS	Muffler
18	NS	19 HP Engine (Kohler)
19	4010-1	Drain Valve 3818 NPTF	$16.50	Add to Cart
20	5879-3	Hose Clamp 12	$0.65	Add to Cart
21	NS	Fuel Filter (Kohler)
22	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
23	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
24	5975-3	Cable Tie 50x7	$0.36	Add to Cart
25	8043-8	Roll Over Valve	$12.21	Add to Cart
26	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
27	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
28	6046-3	Fuel Tank, 2.8 Gal. Gas (Includes Item # 31)
29	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
30	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
31	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
32	5083-7	Tank Tube 812	$14.11	Add to Cart
33	4108-3	NR Control Cable 64	$16.08	Add to Cart
34	2108-4	Control Cable 68	$16.32	Add to Cart
35	8123-3	Insultherm 38x10	$5.62	Add to Cart
36	5108-6	NR Choke Cntrl KnobBlack	$5.74	Add to Cart
37	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
38	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
39	7108	Control Assembly	$30.21	Add to Cart
	4108-2	NR Throttle CntrlCable Assy	$53.99	Add to Cart
	2109-3	NR Choke CntrlCable Assy	$40.96	Add to Cart
40	5108-8	Control Bracket	$9.26	Add to Cart
41	5108-10	Friction Washer 125	$1.98	Add to Cart
42	5108-7	Control Lock Tab	$2.52	Add to Cart
43	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F439	1213x134 Hex Bolt	$2.45	Add to Cart
	F482	832 Nylock Nut	$0.17	Add to Cart
	F483	832x34 PPHMS	$0.17	Add to Cart
