Part Lookup Tool

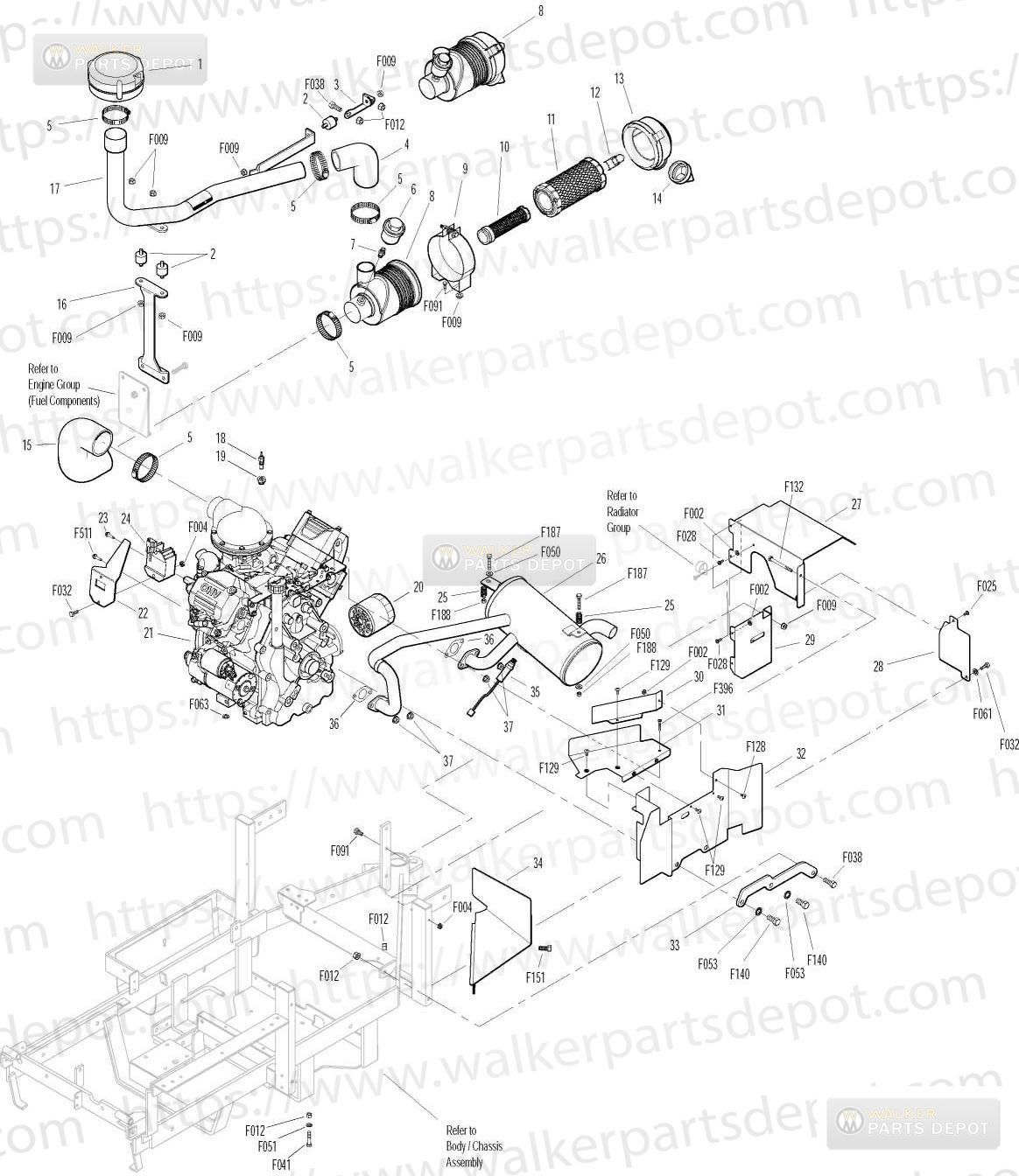

PARTS > MT MANUALS > 2013-10-07, 8000-19, Serial 124884-147168 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	7026-2	Remote Precleaner	$59.33	Add to Cart
2	7440	Shock Mount 1x34	$5.20	Add to Cart
3	7028-20	Rear Precleaner Mount	$8.16	Add to Cart
4	7032	Elbow Precleaner	$23.28	Add to Cart
5	7840-5	Hose Clamp 156 250	$3.84	Add to Cart
6	5091-2	Air Flow Indicator Vacuum 10 H2O	$23.85	Add to Cart
7	5091-4	Indicator Nipple	$6.00	Add to Cart
8	5088-12	Air Cleaner DGTMTL	$138.50	Add to Cart
9	5088-1	Air Cleaner Band	$27.20	Add to Cart
10	5090-3	Safety Filter Insert	$25.65	Add to Cart
11	5090-1	Air Cleaner Cartridge	$35.90	Add to Cart
12	5088-5	Air Cleaner Draw Latch	$12.20	Add to Cart
13	5088-11	Air Cleaner Cap	$42.02	Add to Cart
14	5090-2	Vacuator Valve	$12.75	Add to Cart
15	8026-10	Air Hose Clnr TEFIMTL	$45.19	Add to Cart
16	7031-2	NR Tube Support Arm	$13.13	Add to Cart
17	7028-6	Precleaner Tube 134GHSSD WO Bracket	$60.86	Add to Cart
18	7306-15	Water Temperature Sender	$42.86	Add to Cart
19	7306-12	NR Temp Sender Adapter	$6.31	Add to Cart
20	NS	Oil Filter (Kohler 1205001)
21	NS	30 HP Kohler EFI Engine
22	8016-2	NR Regulator Mount	$11.66	Add to Cart
23	NS	Screw (Kohler)
24	NS	Regulator (Kohler)
25	5665	NR Compression Sprg 12x1	$9.16	Add to Cart
26	8013-38	NR MufflerMTL	$307.65	Add to Cart
27	8532-5	NR Upper Grass Shield	$56.78	Add to Cart
28	8532-2	Rear Shield	$7.90	Add to Cart
29	8530-15	NR Muffler End Shield	$29.61	Add to Cart
30	8533-2	MTL Top Shield	$46.68	Add to Cart
31	8533-3	Muffler Base Shield	$71.11	Add to Cart
32	8533-4	MTL Muffler Shield	$35.64	Add to Cart
33	8318-3	Engine Brace	$12.17	Add to Cart
34	8531-10	Rear Muffler Heat Shield	$39.16	Add to Cart
35	NS	Oxygen Sensor (Kohler)
36	NS	Gasket (Kohler)
37	NS	Nut (Kohler)
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F028	1024x34 PPHMS	$0.18	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F041	3816x134 Hex Bolt	$1.87	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F053	716 Int Star Lock Wshr	$0.65	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F132	1420x234 Hex Bolt	$1.42	Add to Cart
	F140	71614x1 Hex Bolt	$1.87	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F187	1420x112 Hex Bolt	$0.79	Add to Cart
	F188	1420 SelfLocking Nut	$0.30	Add to Cart
	F396	1024x114 PPH Bolt	$0.66	Add to Cart
	F511	1032x12 HWH Trilobe Screw	$2.38	Add to Cart
