PARTS > MB MANUALS > 2014-02-07, 4000-8, Serial 126729-133533 > Engine Group:

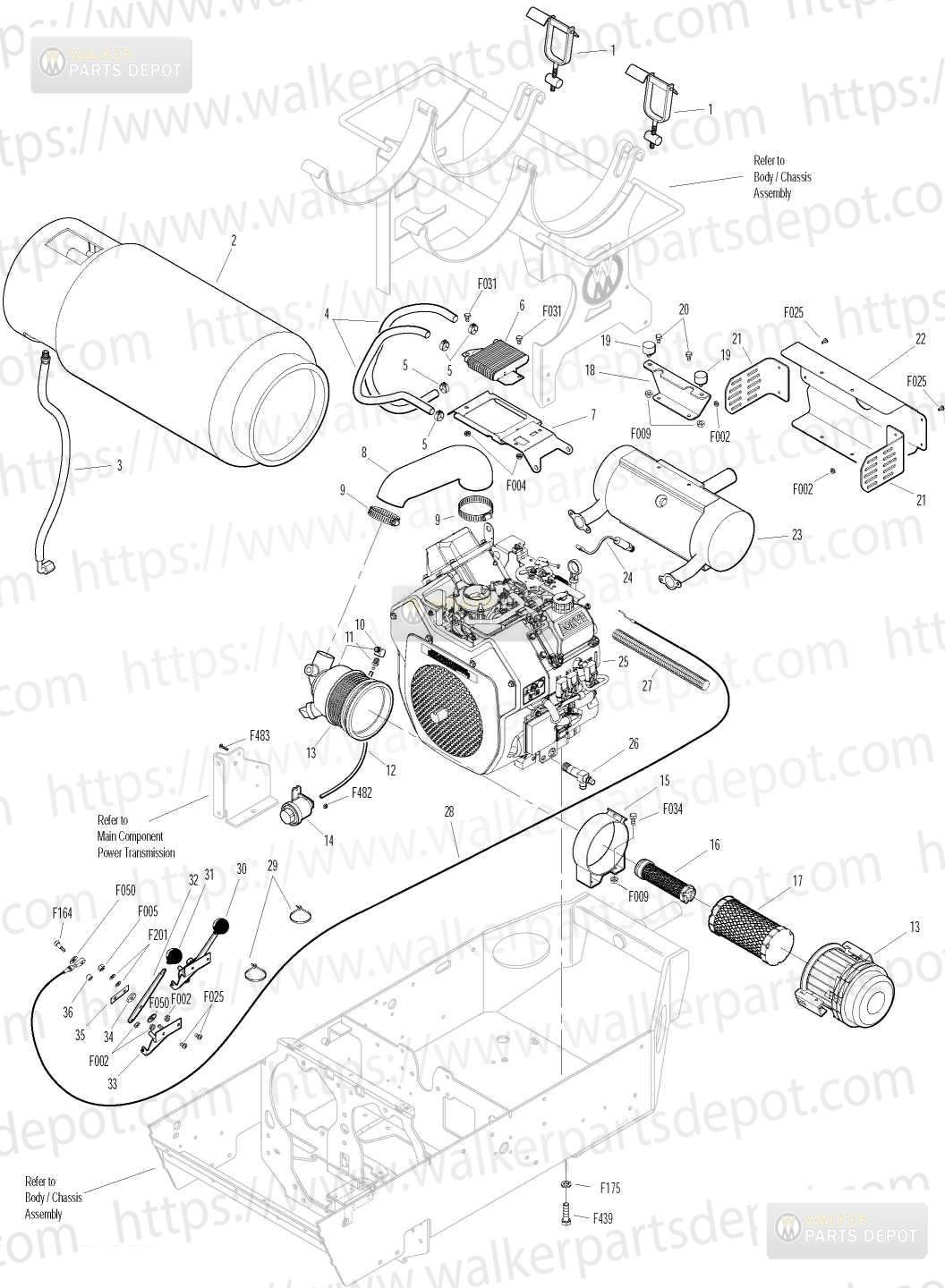

Diagram #	Part #	Description	Price	Add to Cart
1	NS	Buckle
2	4010-44	335 Gallon Propane Tank	$578.55	Add to Cart
3	4010-13	LP Hose
4	NS	Oil Cooler Hose (Kohler 24326127)
5	NS	Clamp (Kohler 25 237 02-S)
6	NS	Oil Cooler (Kohler 24 594 12-S)
7	8016-7	Oil CoolerReg Mount	$30.10	Add to Cart
8	8026-17	Air Intake HoseMT25i T27i	$28.14	Add to Cart
9	6029	Hose Clamp 11316 234	$3.26	Add to Cart
10	5091-9	Street Elbow 9018x18	$6.72	Add to Cart
11	5091-0	18 Pipe Thread Male WBarb	$7.26	Add to Cart
12	M258	Vacuum Hose	$3.26	Add to Cart
13	2088-9	Air Cleaner AssemblyMHMB25P 90 Degree Elbow	$157.61	Add to Cart
14	5091-6	Air Flow Indicator W Brkt Vacuum 10 H2O	$25.61	Add to Cart
15	2088-1	Air Cleaner Band
16	5090-3	Safety Filter Insert	$25.65	Add to Cart
17	5090-1	Air Cleaner Cartridge	$35.90	Add to Cart
18	4104-3	NR Body Support12	$15.98	Add to Cart
19	4845	Rubber Bumper 10x625	$8.50	Add to Cart
20	NS	Bolt (Kohler)
21	2013-4	Shield Side	$11.93	Add to Cart
22	2013-3	Muffler Heat Shield	$39.91	Add to Cart
23	NS	Muffler
24	NS	Oxygen Sensor (Kohler 25 418 07-S)
25	NS	25 HP Engine (Kohler)
26	4010-1	Drain Valve 3818 NPTF	$16.50	Add to Cart
27	8123-3	Insultherm 38x10	$5.62	Add to Cart
28	4108-3	NR Control Cable 64	$16.08	Add to Cart
29	5975-3	Cable Tie 50x7	$0.36	Add to Cart
30	7108	Control Assembly	$30.21	Add to Cart
	4108-2	NR Throttle CntrlCable Assy	$53.99	Add to Cart
31	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
32	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
33	5108-8	Control Bracket	$9.26	Add to Cart
34	5108-10	Friction Washer 125	$1.98	Add to Cart
35	5108-7	Control Lock Tab	$2.52	Add to Cart
36	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F439	1213x134 Hex Bolt	$2.45	Add to Cart
	F482	832 Nylock Nut	$0.17	Add to Cart
	F483	832x34 PPHMS	$0.17	Add to Cart
