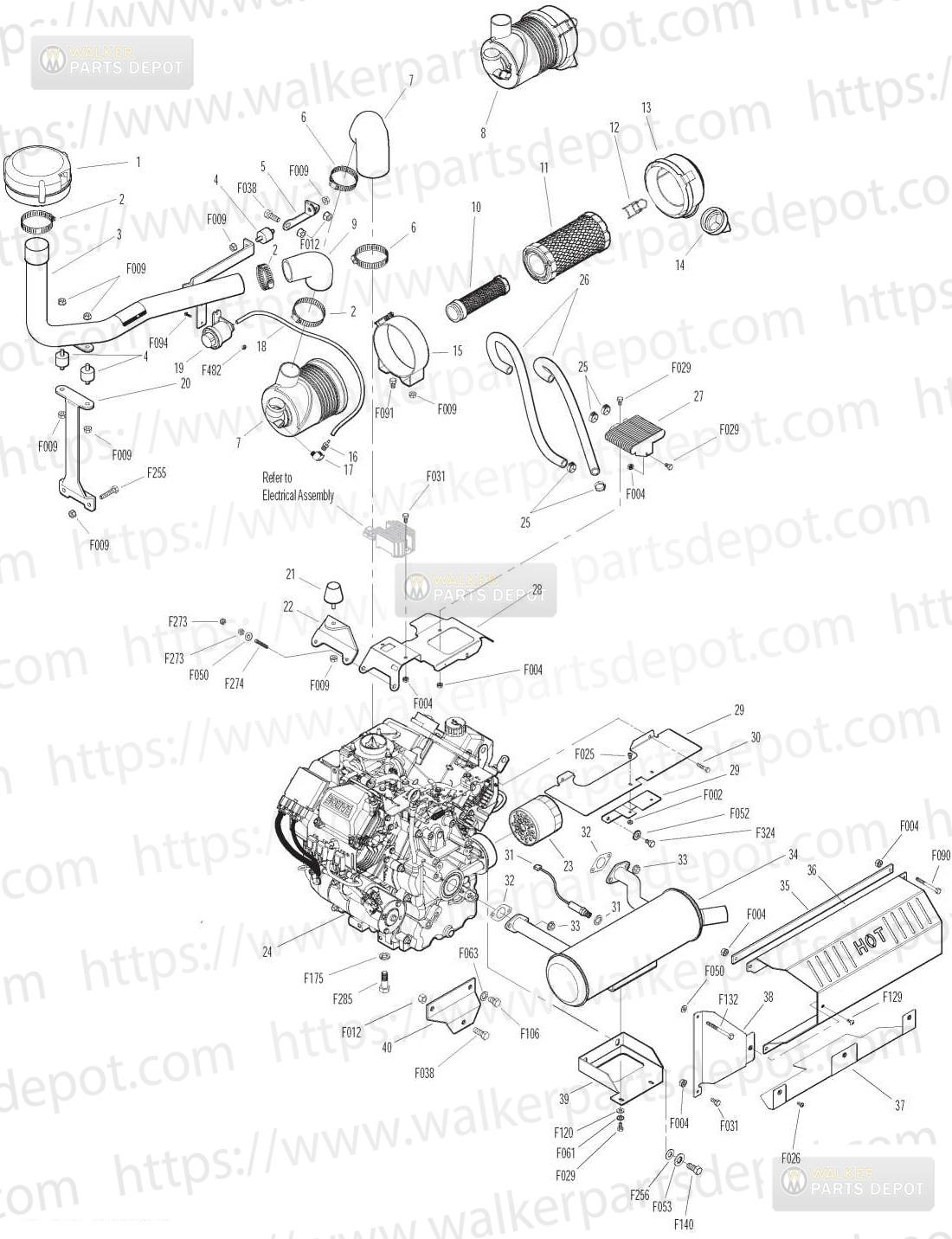

PARTS > MT MANUALS > 2015-05-01, 8000-23, Serial 134121-148520 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	7026-2	Remote Precleaner	$59.33	Add to Cart
2	7840-5	Hose Clamp (1.56 - 2.50)	$3.84	Add to Cart
3	7028-5	Precleaner Tube 1-3/4/GHS	$67.07	Add to Cart
4	7440	Shock Mount (1x3/4)	$5.20	Add to Cart
5	7028-20	Rear Precleaner Mount	$8.16	Add to Cart
6	6029	Hose Clamp (1-13/16 - 2-3/4)	$3.26	Add to Cart
7	8026-17	Air Intake Hose/MT25i	$28.14	Add to Cart
8	6090-11	Air Cleaner Assembly	$102.23	Add to Cart
9	7032	Elbow Precleaner	$23.27	Add to Cart
10	5090-3	Safety Filter Insert	$24.48	Add to Cart
11	5090-1	Air Cleaner Cartridge	$35.49	Add to Cart
12	5088-5	Air Cleaner Draw Latch	$12.20	Add to Cart
13	5088-11	Air Cleaner Cap	$42.02	Add to Cart
14	5090-2	Vacuator Valve	$12.75	Add to Cart
15	5088-3	Air Cleaner Band	$21.49	Add to Cart
16	5091-0	1/8 Pipe Thread Male W/Barb	$7.26	Add to Cart
17	5091-9	Street Elbow 90'(1/8x1/8)	$6.72	Add to Cart
18	M258	Vacuum Hose	$3.26	Add to Cart
19	5091-6	Air Flow Indicator W Brkt Vacuum 10 H2O	$25.61	Add to Cart
20	7031-3	(NR) Tube Support Arm	$14.98	Add to Cart
21	5845	Rubber Bumper (1.50x1.25)	$7.12	Add to Cart
22	8010-2	Engine Bumper Mount	$15.96	Add to Cart
23	NS	Oil Filter (Kohler 1205001)
24	NS	25-hp EFI Engine
25	NS	Clamp (Kohler 25 237 02-S)
26	NS	Oil Cooler Hose (Kohler 24326127)
27	NS	Oil Cooler (Kohler 24 594 12-S)
28	8016-8	Oil Cooler/Reg Mount	$33.23	Add to Cart
29	8530-9	(NR) Grass Shield Muffler/EFI	$28.57	Add to Cart
30	NS	Screw (Kohler M645016-S)
31	NS	Sensor, Oxygen (Kohler)
32	NS	Gasket (Kohler)
33	NS	Nut (Kohler M-0841080)
34	8013-11	Muffler/EFI	$181.61	Add to Cart
35	8013-2	(NR) Upright Support	$15.30	Add to Cart
36	8013-13	Heat Shield Mfflr T/EFI	$60.10	Add to Cart
37	8013-61	(NR) Muffler Heat Deflector With Knurled Inserts	$24.20	Add to Cart
38	8013-29	Mufflr Heat Shield Endcap	$24.37	Add to Cart
39	8013-18	Muffler Brace T/EFI	$27.60	Add to Cart
40	8021	Engine Brace	$9.89	Add to Cart
	F002	10-24 Keps Nut	$0.18	Add to Cart
	F004	1/4-20 Keps Nut	$0.34	Add to Cart
	F009	5/16-18 Whiz Locknut	$0.50	Add to Cart
	F012	3/8-16 Keps Nut	$0.79	Add to Cart
	F025	10-24x3/8 PPHMS	$0.18	Add to Cart
	F026	10-24x1/2 PPHMS	$0.18	Add to Cart
	F029	1/4-20x1/2 Hex Bolt	$0.50	Add to Cart
	F031	1/4-20x5/8 Hex Bolt	$0.50	Add to Cart
	F038	3/8-16x1 Hex Bolt	$1.06	Add to Cart
	F050	1/4 SAE Washer	$0.18	Add to Cart
	F052	5/16 Ext. Star Lock Wshr	$0.18	Add to Cart
	F053	7/16 Int. Star Lock Wshr	$0.65	Add to Cart
	F061	1/4 Star Lock Wshr	$0.18	Add to Cart
	F063	3/8 Int. Star Lock Washer	$0.18	Add to Cart
	F090	1/4-20x2-1/2 Hex Bolt	$1.30	Add to Cart
	F091	5/16-18x5/8 Hex Bolt	$0.65	Add to Cart
	F094	8-32x1/2 PTHMS	$0.18	Add to Cart
	F106	3/8-16x5/8 Hex Bolt	$0.94	Add to Cart
	F120	AN960416 Washer	$0.29	Add to Cart
	F129	10-24x1/2 PTHMS	$0.34	Add to Cart
	F132	1/4-20x2-3/4 Hex Bolt	$1.42	Add to Cart
	F140	7/16-14x1 Hex Bolt	$1.87	Add to Cart
	F175	1/2 Split Lock Washer	$0.50	Add to Cart
	F255	5/16-18x1-1/2 Hex Bolt	$1.06	Add to Cart
	F256	7/16 SAE Washer	$0.50	Add to Cart
	F273	M6x1.0 Nut	$0.22	Add to Cart
	F274	M6 x 1.0 x 45 Stud
	F285	1/2-13x1-1/2 Hex Bolt	$2.45	Add to Cart
	F324	M8x1.25x12 Hex Bolt	$1.18	Add to Cart
	F482	8-32 Nylock Nut	$0.17	Add to Cart
