Part Lookup Tool

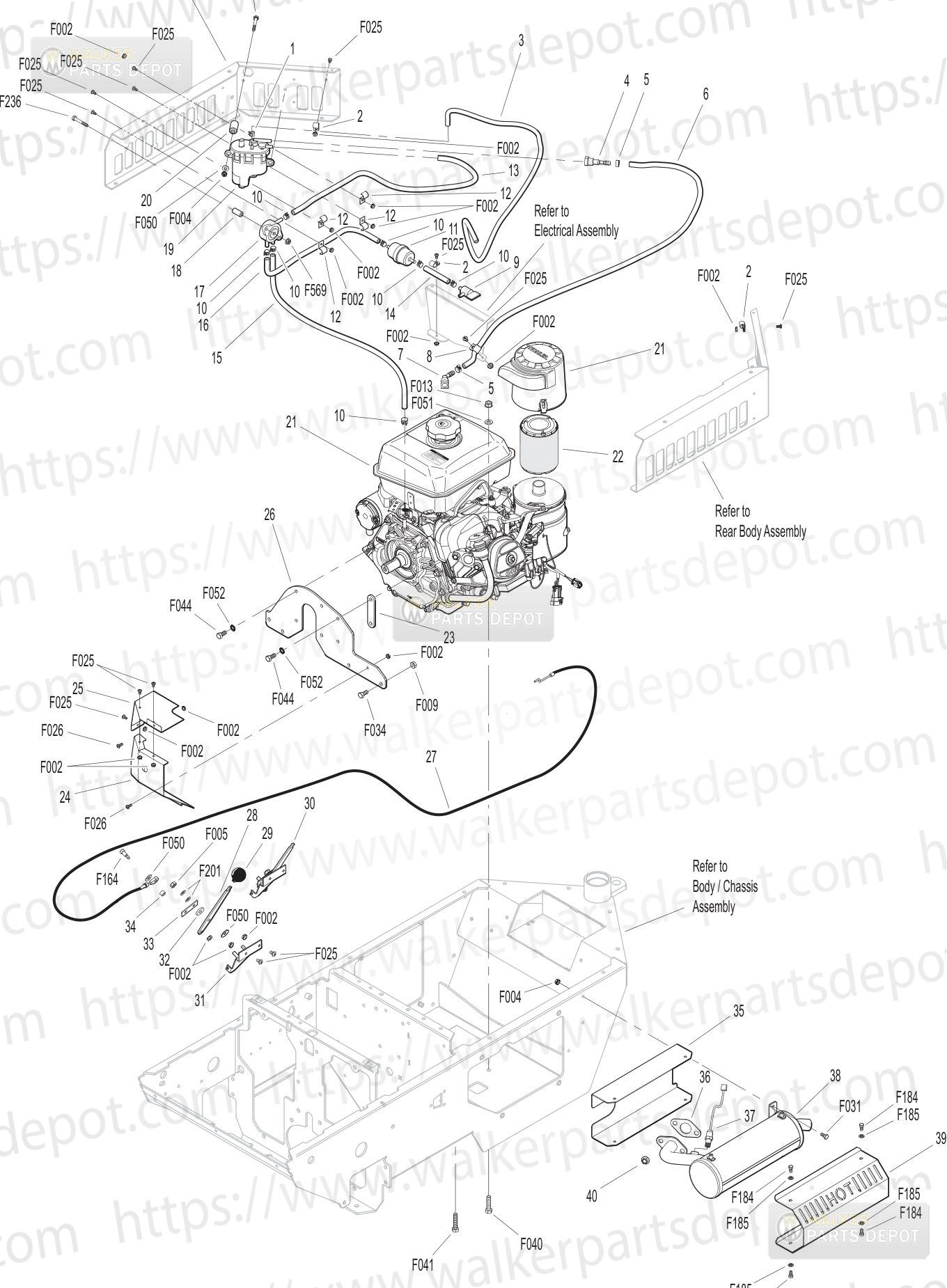

PARTS > MS MANUALS > 2017-12-06, 5000-36, Serial 147007-154256 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	5879-4	Hose Clamp 716	$1.06	Add to Cart
2	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
3	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
4	8046-17	Quick Coupler Straight 516x516	$5.11	Add to Cart
5	5879-9	Stepless Ear ClampBlk 157	$3.58	Add to Cart
6	NS	Fuel Line (Kohler)
7	8046-16	Quick Connector 516 x 51645	$5.40	Add to Cart
8	6833	Cable Clamp 916x10	$1.20	Add to Cart
9	NS	Fuel Valve (Kohler)
10	5879-3	Hose Clamp 12	$0.65	Add to Cart
11	5020	Fuel FilterNon EFI	$5.94	Add to Cart
12	5835-3	Cable Clamp (1/2) .218 Hole
13	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
14	NS	Fuel Line (Kohler)
15	M111	Fuel Line (1/4 x 10") 1**
16	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
17	NS	Pump, Pulse
18	8018-6	1" Spacer
19	NS	Fuel Pump Module (Kohler)
20	8018-2	Fuel Bracket Spacer	$11.31	Add to Cart
21	NS	14 HP Engine (Kohler) EFI
22	NS	Air Cleaner Cartridge (Kohler)
23	5303-7	Engine Spacer
24	5013-19	NR Exhaust Pipe Heat Shield	$19.28	Add to Cart
25	5013-20	Heat Shield Cover
26	5303-9	Engine Brace
27	8108-4	Control Cable 58	$14.49	Add to Cart
28	5108-19	Control Lever, Throttle and Choke
29	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
30	7108-13	Control Assembly (Includes Items # 28, 31-33 & F201)
	5121-4	NR Throttle Control Cable Assembly	$69.89	Add to Cart
31	5108-8	Control Bracket	$9.26	Add to Cart
32	5108-10	Friction Washer 125	$1.98	Add to Cart
33	5108-7	Control Lock Tab	$2.52	Add to Cart
34	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
35	5013-18	Inner Heat Shield
36	NS	Gasket, Muffler (Kohler)
37	NS	Sensor, Oxygen (Kohler)
38	5011-17	NR MufflerMS Kohler W02 Sensor	$166.11	Add to Cart
39	5013-17	Muffler Heat Shield
40	NS	Nut (Kohler)
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F041	3816x134 Hex Bolt	$1.87	Add to Cart
	F044	51624x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F052	516 Ext Star Lock Wshr	$0.18	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F236	1420x134 Hex Bolt	$0.84	Add to Cart
	F398	1420x2 Hex Bolt	$1.06	Add to Cart
	F569	1420 Flange Top Lock Nut	$1.20	Add to Cart
	M111	- 1/4" ID fuel/oil/vapor hose (Gates 4219-0103 or
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
	M247	Fuel Line Nitrile516	$13.01	Add to Cart
