Part Lookup Tool

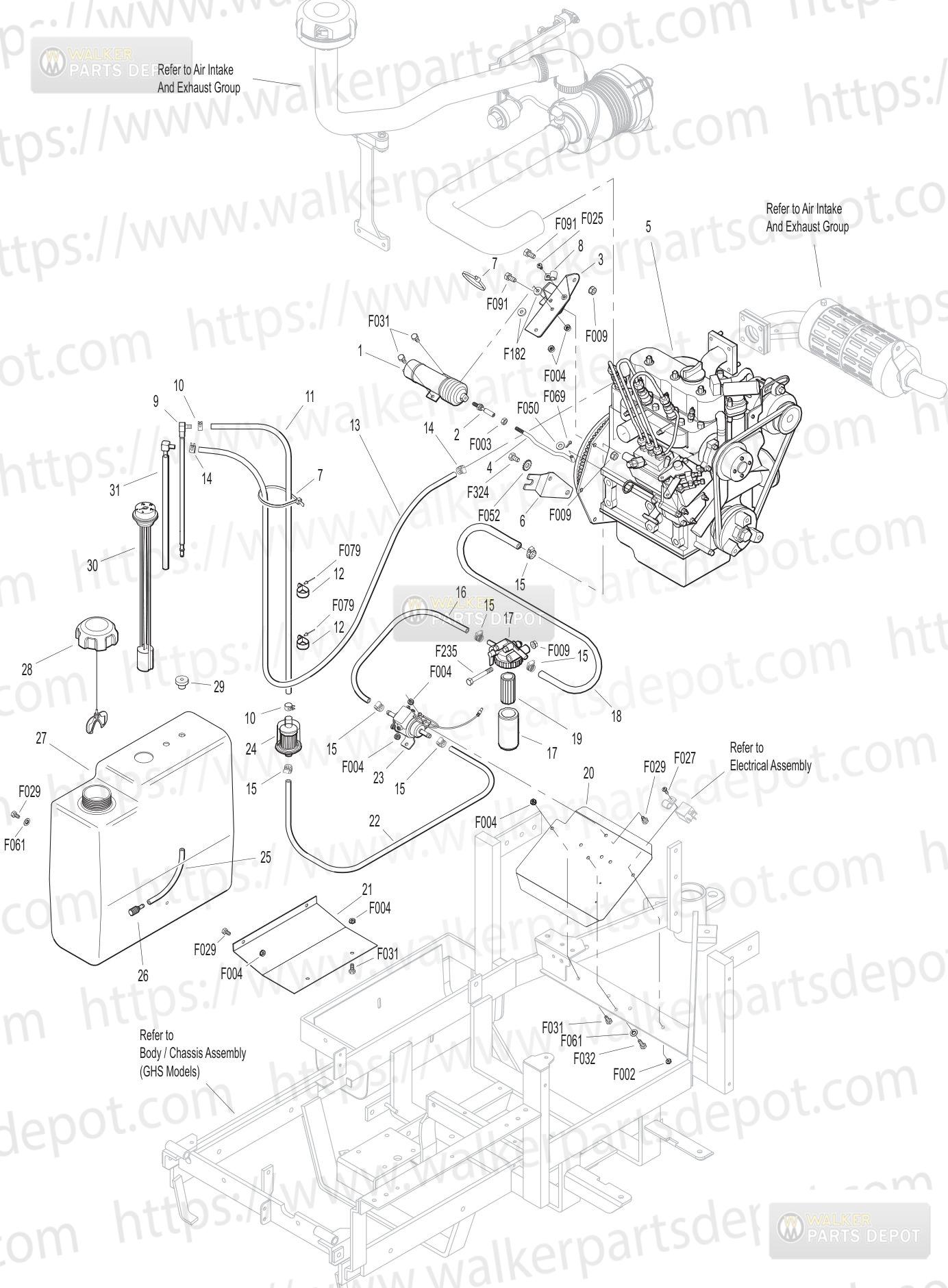

PARTS > MD MANUALS > 2018-01-15, 7000-15, Serial 134382-147166 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	7929-1	Actuating Solenoid	$153.51	Add to Cart
2	7305-3	Inline Ball Joint	$11.66	Add to Cart
3	7343-1	Solenoid Mount06	$28.97	Add to Cart
4	7305-1	Solenoid Linkage Rod06	$20.90	Add to Cart
5	NS	Kubota Diesel Engine (D 722 Kubota)
6	7341	Throttle Cable Mount Brkt	$7.32	Add to Cart
7	5975-3	Cable Tie 50x7	$0.36	Add to Cart
8	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
9	5083-8	Tank Tube 13	$14.04	Add to Cart
10	5879-3	Hose Clamp 12	$0.65	Add to Cart
11	M111	Fuel Line (1/4 x 16-1/2)
12	7833	Cable Clamp 78x14	$2.72	Add to Cart
13	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
14	5879-2	Hose Clamp 716 Silver	$1.75	Add to Cart
15	7840-2	Hose Clamp 14 to 58	$3.50	Add to Cart
16	M247	Fuel Line Nitrile516	$13.01	Add to Cart
17	NS	Fuel Filter (19204-43010 Kubota)
18	M247	Fuel Line Nitrile516	$13.01	Add to Cart
19	7021	Fuel Filter1T02143560	$16.67	Add to Cart
20	7389	Splash GuardD	$23.21	Add to Cart
21	7048	Trash Guard	$11.95	Add to Cart
22	M247	Fuel Line Nitrile516	$13.01	Add to Cart
23	NS	Fuel Pump (12691-52031 Kubota)
24	7020	Fuel FilterInLine	$6.11	Add to Cart
25	5086-7	NR Hose 14x6	$12.40	Add to Cart
26	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
27	8055-4	Fuel Tank Kit NonEvap 47 Gal	$206.64	Add to Cart
28	7082-1	Fuel Tank CapDiesel	$37.00	Add to Cart
29	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
30	8055-2	Fuel Tank Gauge 47 Gallon Includes Grommet	$49.83	Add to Cart
31	7046-1	Fuel Return Tube	$8.30	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F003	1428 Hex Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F052	516 Ext Star Lock Wshr	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F069	332x12 Cotter Pin	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F182	14x58x18 Washer	$1.20	Add to Cart
	F235	51618x212 Hex Bolt	$1.75	Add to Cart
	F324	M8x125x12 Hex Bolt	$1.18	Add to Cart
	M111	- 1/4" ID fuel/oil/vapor hose (Gates 4219-0103 or
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M247	Fuel Line Nitrile516	$13.01	Add to Cart
