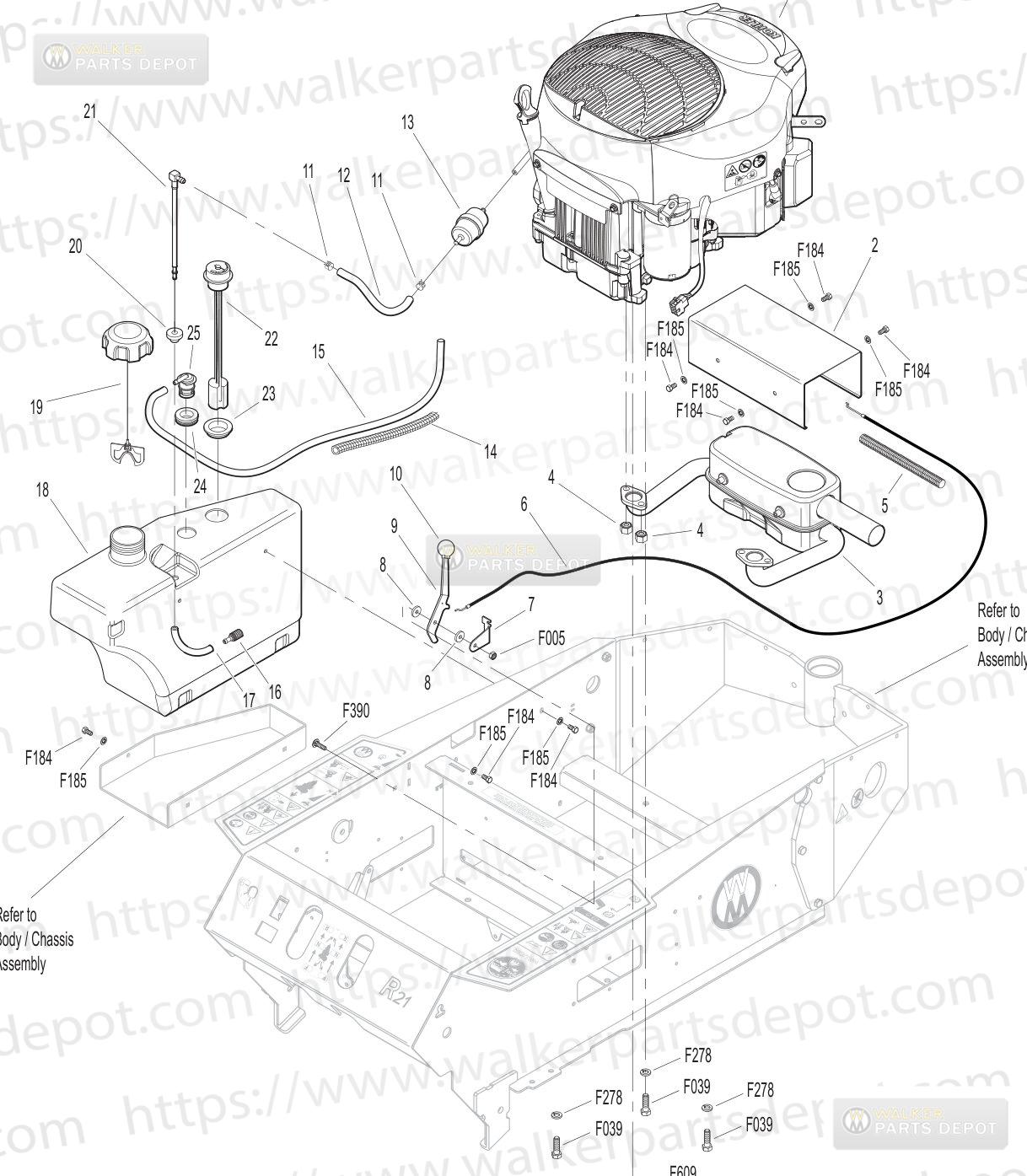

PARTS > MR MANUALS > 2019-08-28, 1000, Serial 158429-160823 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	NS	21 HP Engine (Kohler)
2	1013-2	Muffler Heat Shield	$30.93	Add to Cart
3	1013	SU1013 10 Muffler MR	$78.75	Add to Cart
4	NS	Nut (Kohler)
5	M265	Insultherm (3/8 x 10)
6	1108-1	Throttle Cable 45	$15.85	Add to Cart
7	5108-21	Control BracketMRMB27	$5.66	Add to Cart
8	5108-10	Friction Washer 125	$1.98	Add to Cart
9	5108-20	Control LeverThrottleMRMB27	$7.27	Add to Cart
10	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
11	5879-3	Hose Clamp 12	$0.65	Add to Cart
12	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
13	5020-3	Fuel FilterEFI 912 Micron	$17.92	Add to Cart
14	M265	Insultherm (3/8 x 12)
15	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
16	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
17	5086-7	NR Hose 14x6	$12.40	Add to Cart
18	6045-10	Fuel Tank 30 Gallon	$195.51	Add to Cart
19	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
20	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
21	5083-7	Tank Tube 812	$14.11	Add to Cart
22	6045-1	Fuel Tank Gauge 30	$29.08	Add to Cart
23	6045-2	Fuel Tank Gauge Grommet 136	$4.70	Add to Cart
24	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
25	8043-8	Roll Over Valve	$12.21	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F390	1420x78 Carriage Bolt	$0.65	Add to Cart
	F609	3816x114 Button Head Cap Screw Torx Head	$4.78	Add to Cart
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
