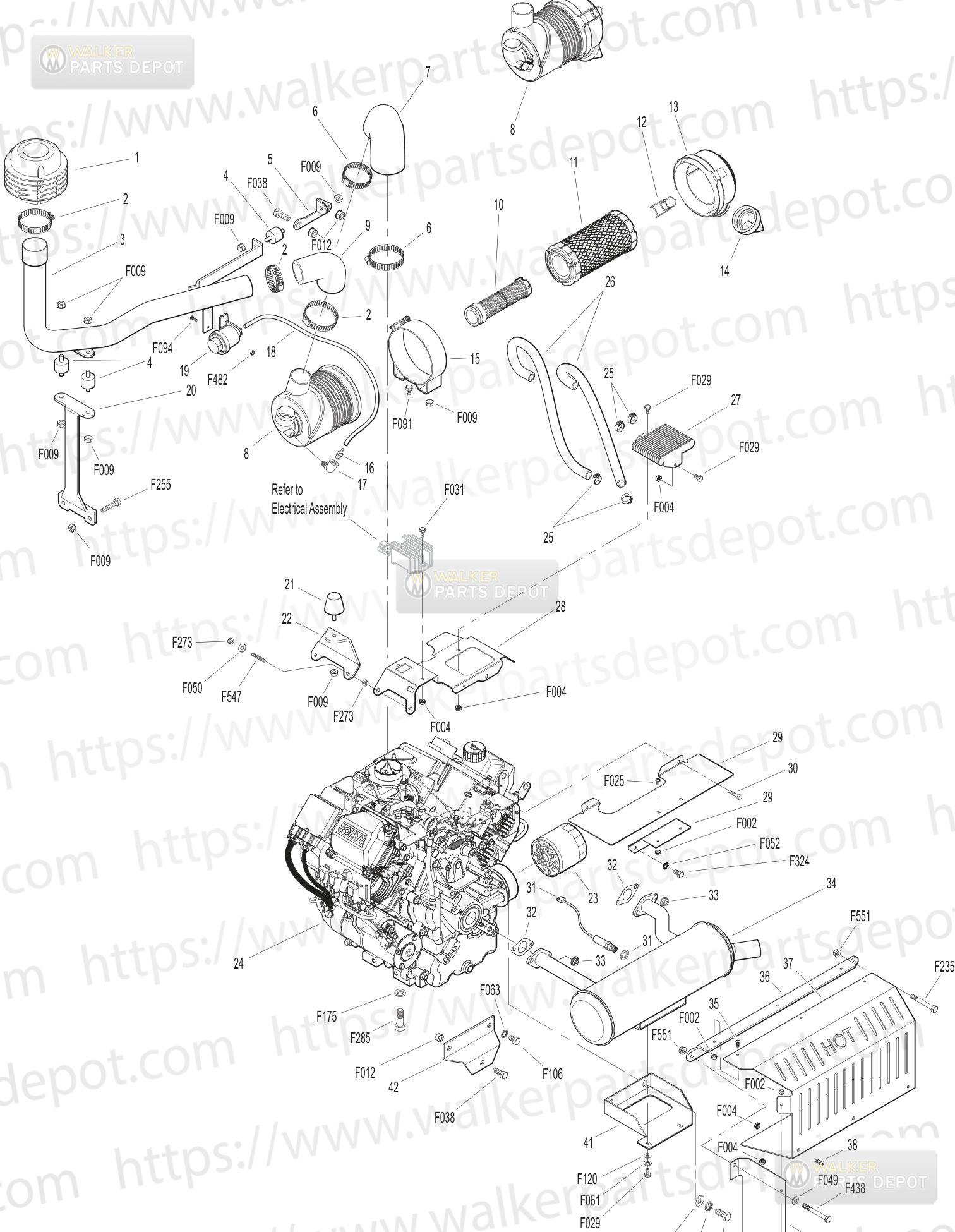

PARTS > MT MANUALS > 2020-01-08, 8000-37, Serial 159728-168490 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	7026-3	Remote Precleaner	$71.69	Add to Cart
2	7840-5	Hose Clamp 156 250	$3.84	Add to Cart
3	7028-5	Precleaner Tube 134GHS	$67.07	Add to Cart
4	7440	Shock Mount 1x34	$5.20	Add to Cart
5	7028-20	Rear Precleaner Mount	$8.16	Add to Cart
6	6029	Hose Clamp 11316 234	$3.26	Add to Cart
7	8026-17	Air Intake HoseMT25i T27i	$28.14	Add to Cart
8	6090-11	Air Cleaner Assembly	$117.92	Add to Cart
9	7032	Elbow Precleaner	$23.28	Add to Cart
10	5090-3	Safety Filter Insert	$25.65	Add to Cart
11	5090-1	Air Cleaner Cartridge	$35.90	Add to Cart
12	5088-5	Air Cleaner Draw Latch	$12.20	Add to Cart
13	5088-11	Air Cleaner Cap	$42.02	Add to Cart
14	5090-2	Vacuator Valve	$12.75	Add to Cart
15	5088-3	Air Cleaner Band	$21.49	Add to Cart
16	5091-0	18 Pipe Thread Male WBarb	$7.26	Add to Cart
17	5091-16	Street Elbow 9018x18	$5.54	Add to Cart
18	M258	Vacuum Hose	$3.26	Add to Cart
19	5091-6	Air Flow Indicator W Brkt Vacuum 10 H2O	$25.61	Add to Cart
20	7031-3	NR Tube Support Arm	$14.98	Add to Cart
21	5845	Rubber Bumper 150x125	$7.12	Add to Cart
22	8010-2	Engine Bumper Mount	$15.96	Add to Cart
23	NS	Oil Filter (Kohler 1205001)
24	NS	27-hp EFI Engine
25	NS	Clamp (Kohler 25 237 02-S)
26	NS	Oil Cooler Hose (Kohler 24326127)
27	NS	Oil Cooler (Kohler 24 594 12-S)
28	8016-8	Oil CoolerReg Mount	$33.22	Add to Cart
29	8530-8	Grass Shield MufflerT	$28.09	Add to Cart
30	NS	Screw (Kohler M645016-S)
31	NS	Sensor, Oxygen (Kohler)
32	NS	Gasket (Kohler)
33	NS	Nut (Kohler M-0841080)
34	8013-11	MufflerEFI	$181.65	Add to Cart
35	NS	10-24 x 1/2" Button Head Hex
36	8013-44	Upright Support	$20.69	Add to Cart
37	8013-42	NR Heat Shield Muffler MT	$71.40	Add to Cart
38	NS	1/4-20 x 5/8" Button Head Hex Screw
39	8013-43	Muffler Heat Shield Endcap	$26.50	Add to Cart
40	NS	10-24 x 3/8" Button Head Hex Screw
41	8013-18	Muffler Brace TEFI	$27.59	Add to Cart
42	8021	Engine Brace	$9.89	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F052	516 Ext Star Lock Wshr	$0.18	Add to Cart
	F053	716 Int Star Lock Wshr	$0.65	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F094	832x12 PTHMS	$0.18	Add to Cart
	F106	3816x58 Hex Bolt	$0.94	Add to Cart
	F120	AN960416 Washer	$0.29	Add to Cart
	F140	71614x1 Hex Bolt	$1.87	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F235	51618x212 Hex Bolt	$1.75	Add to Cart
	F255	51618x112 Hex Bolt	$1.06	Add to Cart
	F256	716 SAE Washer	$0.50	Add to Cart
	F273	M6x10 Nut	$0.22	Add to Cart
	F285	1213x112 Hex Bolt	$2.45	Add to Cart
	F324	M8x125x12 Hex Bolt	$1.18	Add to Cart
	F438	51618x234 Hex Bolt	$0.50	Add to Cart
	F482	832 Nylock Nut	$0.17	Add to Cart
	F551	51618 Flange Top Lock Nut	$1.06	Add to Cart
	F547	M6x10x45 Stud	$2.71	Add to Cart
	M258	Vacuum Hose	$3.26	Add to Cart
