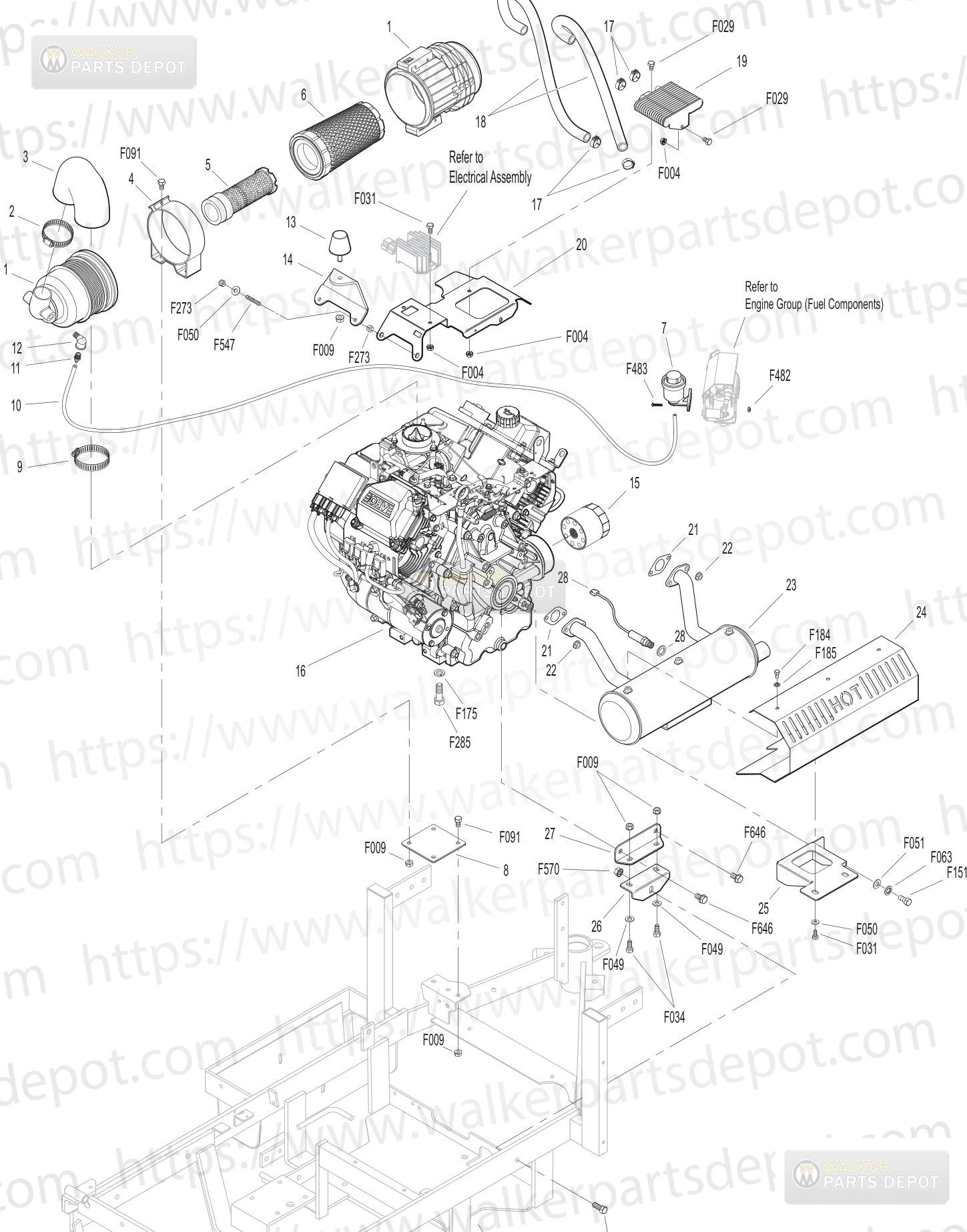

PARTS > MC MANUALS > 2020-06-16, 6000-30, Serial 154995-168630 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	4090	Air Cleaner 90 Degree 2	$157.61	Add to Cart
2	6029	Hose Clamp 11316 234	$3.26	Add to Cart
3	6087-5	Air Intake Hose
4	NS	Air Cleaner Band
5	5090-5	Safety Filter InsertVLR	$22.57	Add to Cart
6	5090-6	Air Cleaner CartridgeVLR Nano	$27.68	Add to Cart
7	5091-6	Air Flow Indicator W Brkt Vacuum 10 H2O	$25.61	Add to Cart
8	7334-3	Air Cleaner BracketMC	$9.84	Add to Cart
9	7840-5	Hose Clamp 156 250	$3.84	Add to Cart
10	M258	Vacuum Hose	$3.26	Add to Cart
11	5091-0	18 Pipe Thread Male WBarb	$7.26	Add to Cart
12	5091-16	Street Elbow 9018x18	$5.54	Add to Cart
13	5845	Rubber Bumper 150x125	$7.12	Add to Cart
14	8010-2	Engine Bumper Mount	$15.96	Add to Cart
15	NS	Oil Filter (Kohler 2805001)
16	NS	19 HP Engine, EFI (Kohler)
17	NS	Clamp 4***
18	NS	Oil Cooler Hose 2***
19	NS	Oil Cooler 1***
20	8016-8	Oil CoolerReg Mount	$33.22	Add to Cart
21	NS	Gasket (Kohler 2404102)
22	NS	Nut (Kohler M-0841080)
23	6013-14	Muffler19HP WSensor Clam Shell	$100.63	Add to Cart
24	6013-18	Muffler Heat Shield19HP	$43.74	Add to Cart
25	6013-19	Muffler Brace
26	8021-2	Engine BraceChassis	$11.74	Add to Cart
27	8021-1	Engine Brace
28	NS	Sensor, Oxygen (Kohler)
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F151	3816x78 Hex Bolt	$1.18	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F273	M6x10 Nut	$0.22	Add to Cart
	F285	1213x112 Hex Bolt	$2.45	Add to Cart
	F482	832 Nylock Nut	$0.17	Add to Cart
	F483	832x34 PPHMS	$0.17	Add to Cart
	F547	M6x10x45 Stud	$2.71	Add to Cart
	F570	3816 Flange Top Lock Nut	$1.22	Add to Cart
	F646	3816x34 Serrated Hex Bolt	$2.17	Add to Cart
	M258	Vacuum Hose	$3.26	Add to Cart
