Part Lookup Tool

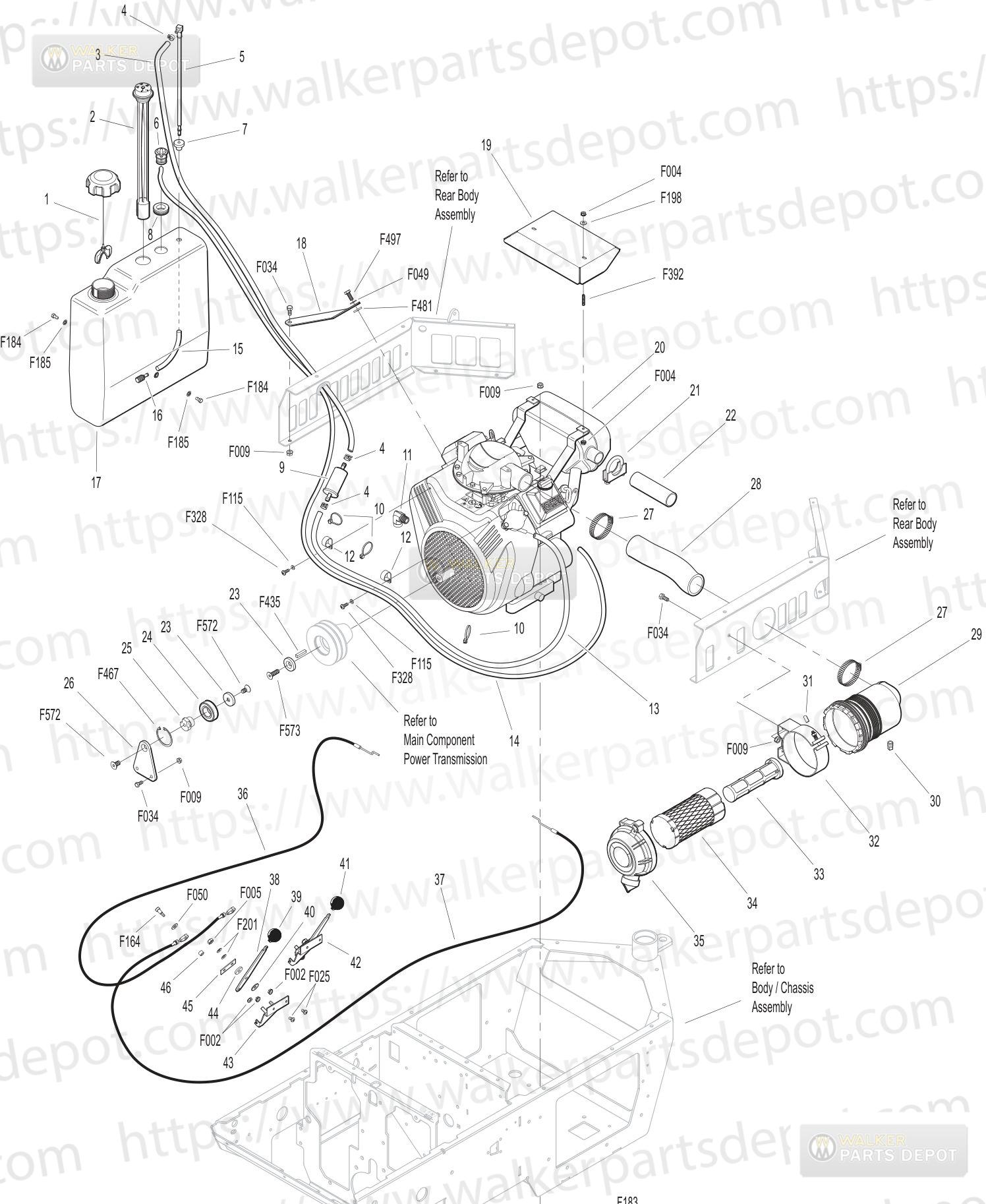

PARTS > MS MANUALS > 2022-04-04, 5000-65, Serial 175767-178947 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
2	8055-2	Fuel Tank Gauge 47 Gallon Includes Grommet	$49.83	Add to Cart
3	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
4	5879-3	Hose Clamp 12	$0.65	Add to Cart
5	5083-8	Tank Tube 13	$14.04	Add to Cart
6	8043-8	Roll Over Valve	$12.21	Add to Cart
7	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
8	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
9	5020	Fuel FilterNon EFI	$5.94	Add to Cart
10	5975-3	Cable Tie 50x7	$0.36	Add to Cart
11	4010-5	38 NPT Street L	$10.06	Add to Cart
12	7833-2	Cable Clamp 1x14	$2.84	Add to Cart
13	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
14	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
15	5086-7	NR Hose 14x6	$12.40	Add to Cart
16	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
17	6055-2	Fuel Tank Kit Evap 40 Gallon	$214.41	Add to Cart
18	5303-11	Engine Support Brace
19	4104-9	Heat ShieldAluminum	$52.92	Add to Cart
20	NS	18 HP Engine (Briggs & Stratton)
21	5013-16	Exhaust Clamp 114	$8.99	Add to Cart
22	5013-13	Muffler Pipe Extension	$15.54	Add to Cart
23	6545-3	Countersunk Washer	$10.72	Add to Cart
24	5270-1	Ball Bearing	$9.20	Add to Cart
25	5237-4	NR Engine Pulley Bushing	$14.40	Add to Cart
26	5237-5	NR Engine Pulley Mount Plate	$12.79	Add to Cart
27	6029	Hose Clamp 11316 234	$3.26	Add to Cart
28	6087-7	Air Intake HoseMS18	$25.30	Add to Cart
29	2090-21	Air Cleaner Assembly	$165.69	Add to Cart
30	5088-15	18 Female NPT Brass Cap	$5.57	Add to Cart
31	7854-1	Plastic TipBlack 218 ID	$0.68	Add to Cart
32	5088-3	Air Cleaner Band	$21.49	Add to Cart
33	2090-3	Safety Filter Insert	$33.70	Add to Cart
34	2090-1	Air Cleaner Cartridge	$52.14	Add to Cart
35	2088-2	Air Cleaner Cap	$33.66	Add to Cart
36	8108-4	Control Cable 58	$14.49	Add to Cart
37	5122-3	NR Control Cable 58	$15.11	Add to Cart
38	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
39	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
40	5108-11	Friction Washer 062	$1.44	Add to Cart
41	5108-6	NR Choke Cntrl KnobBlack	$5.74	Add to Cart
42	7108	Control Assembly	$30.21	Add to Cart
	2108-2	NR Throttle CntrlCable Assy	$53.33	Add to Cart
	5121-3	NR Choke CntrlCable Assy	$69.76	Add to Cart
43	5108-8	Control Bracket	$9.26	Add to Cart
44	5108-10	Friction Washer 125	$1.98	Add to Cart
45	5108-7	Control Lock Tab	$2.52	Add to Cart
46	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F115	#8 SAE Washer
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F198	250x625x040 WasherSS	$0.79	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F316	51618x134 Hex Bolt	$1.08	Add to Cart
	F328	M6x10x16 Hex Bolt	$0.72	Add to Cart
	F392	1420x1 Set ScrewSS Cup Point	$1.56	Add to Cart
	F435	14x14x114 Key	$2.02	Add to Cart
	F467	2 Internal Snap Ring	$2.54	Add to Cart
	F481	Washer 516x1x125	$3.08	Add to Cart
	F497	M8x125x20 Hex Bolt	$1.54	Add to Cart
	F572	3824x58 SFH Cap Screw	$1.42	Add to Cart
	F573	3824x114 SFH Cap Screw	$2.26	Add to Cart
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
