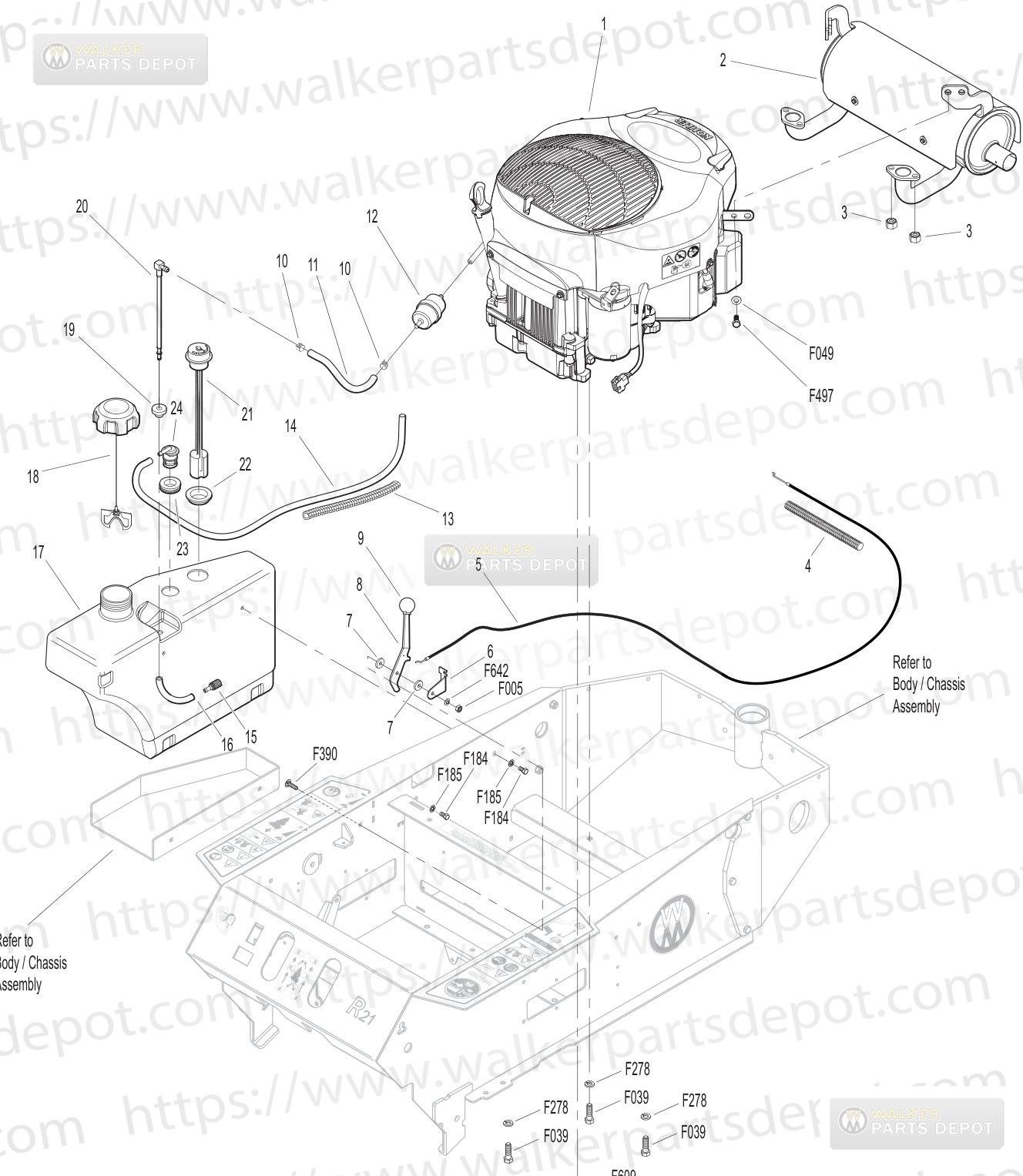

PARTS > MR MANUALS > 2023-11-27, 1000-7, Serial 178455-189148 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	NS	21 HP Engine (Kohler)
2	1013-6	MufflerMR	$134.82	Add to Cart
3	NS	Nut (Kohler)
4	M265	Insultherm (3/8 x 10)
5	1108-1	Throttle Cable 45	$15.85	Add to Cart
6	5108-21	Control BracketMRMB27	$5.66	Add to Cart
7	5108-10	Friction Washer 125	$1.98	Add to Cart
8	5108-20	Control LeverThrottleMRMB27	$7.27	Add to Cart
9	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
10	5879-3	Hose Clamp 12	$0.65	Add to Cart
11	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
12	5020-3	Fuel FilterEFI 912 Micron	$17.92	Add to Cart
13	M265	Insultherm (3/8 x 12)
14	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
15	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
16	5086-7	NR Hose 14x6	$12.40	Add to Cart
17	6045-10	Fuel Tank 30 Gallon	$195.51	Add to Cart
18	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
19	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
20	5083-7	Tank Tube 812	$14.11	Add to Cart
21	6045-1	Fuel Tank Gauge 30	$29.08	Add to Cart
22	6045-2	Fuel Tank Gauge Grommet 136	$4.70	Add to Cart
23	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
24	8043-8	Roll Over Valve	$12.21	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F039	3816x114 Hex Bolt	$1.42	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F278	38 Split Lock Washer	$0.18	Add to Cart
	F390	1420x78 Carriage Bolt	$0.65	Add to Cart
	F497	M8x125x20 Hex Bolt	$1.54	Add to Cart
	F609	3816x114 Button Head Cap Screw Torx Head	$4.78	Add to Cart
	F642	14x042 Belleville Washer	$4.12	Add to Cart
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
