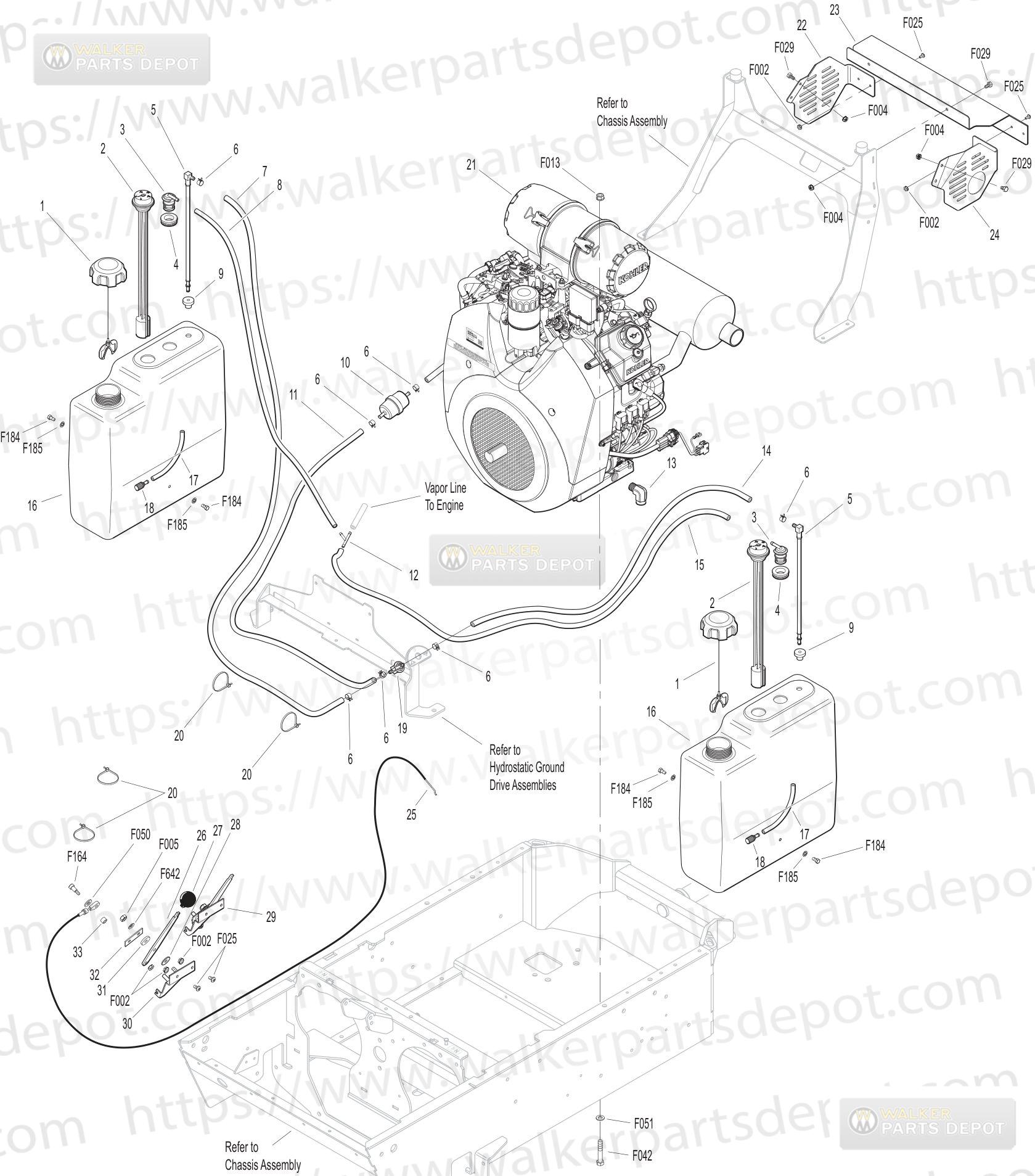

PARTS > MH MANUALS > 2024-07-19, 2000-49, Serial 183326-190348 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
2	8055-2	Fuel Tank Gauge 47 Gallon Includes Grommet	$49.83	Add to Cart
3	8043-8	Roll Over Valve	$12.21	Add to Cart
4	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
5	5083-8	Tank Tube 13	$14.04	Add to Cart
6	5879-3	Hose Clamp 12	$0.65	Add to Cart
7	M111	Fuel Line (1/4 x 32") 1**
8	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
9	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
10	NS	Fuel Filter (Kohler)
11	M111	Fuel Line (1/4 x 22") 1**
12	8043-6	Connector Y	$5.83	Add to Cart
13	4011-5	1/2 NPT Street L
14	M111	Fuel Line (1/4 x 11") 1**
15	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
16	8055-1	Fuel Tank Kit Evap 47 Gallon	$224.28	Add to Cart
17	5086-7	NR Hose 14x6	$12.40	Add to Cart
18	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
19	2010-3	Fuel Valve	$18.79	Add to Cart
20	5975-3	Cable Tie 50x7	$0.36	Add to Cart
21	NS	38 HP Engine, EFI (Kohler)
22	2013-22	Muffler Heat Shield SideRH	$14.26	Add to Cart
23	2013-12	Muffler Heat Shield
24	2013-23	"Muffler Heat Shield SideLH "	$14.07	Add to Cart
25	4109-5	NR Control Cable 71	$19.25	Add to Cart
26	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
27	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
28	5108-11	Friction Washer 062	$1.44	Add to Cart
29	7108	Control Assembly	$30.21	Add to Cart
	4108-5	Throttle Control and Cable Assembly (Includes Items # 25-28, 30-33, F002,
30	5108-8	Control Bracket	$9.26	Add to Cart
31	5108-10	Friction Washer 125	$1.98	Add to Cart
32	5108-7	Control Lock Tab	$2.52	Add to Cart
33	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F042	3816x214 Hex Bolt	$1.97	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F642	14x042 Belleville Washer	$4.12	Add to Cart
	M111	- 1/4" ID fuel/oil/vapor hose (Gates 4219-0103 or
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
