Part Lookup Tool

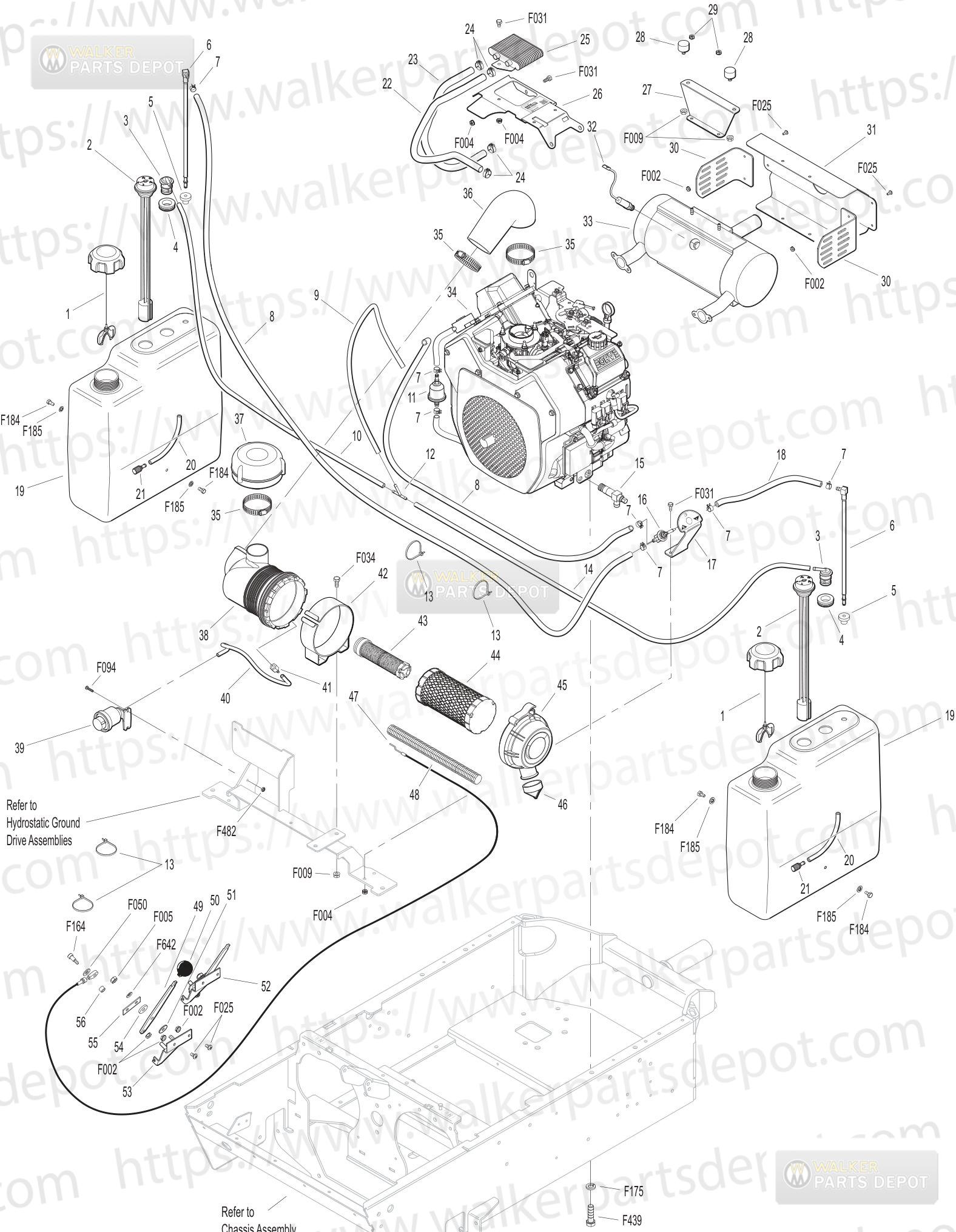

PARTS > MH MANUALS > 2024-12-09, 2000-50, Serial 190455-193249 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
2	8055-2	Fuel Tank Gauge 47 Gallon Includes Grommet	$49.83	Add to Cart
3	8043-8	Roll Over Valve	$12.21	Add to Cart
4	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
5	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
6	5083-8	Tank Tube 13	$14.04	Add to Cart
7	5879-3	Hose Clamp 12	$0.65	Add to Cart
8	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
9	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
10	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
11	7014-9	NR Fuel Filter	$5.66	Add to Cart
12	8043-6	Connector Y	$5.83	Add to Cart
13	5975-3	Cable Tie 50x7	$0.36	Add to Cart
14	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
15	4010-1	Drain Valve 3818 NPTF	$16.50	Add to Cart
16	2010-3	Fuel Valve	$18.79	Add to Cart
17	2010-43	Fuel Selector Valve Mount	$16.65	Add to Cart
18	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
19	8055-1	Fuel Tank Kit Evap 47 Gallon	$224.28	Add to Cart
20	5086-7	NR Hose 14x6	$12.40	Add to Cart
21	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
22	NS	Oil Cooler Hose 1***
23	NS	Oil Cooler Hose 1***
24	NS	Clamp 4***
25	NS	Oil Cooler 1***
26	8016-8	Oil CoolerReg Mount	$33.22	Add to Cart
27	2104-1	Body SupportMBS	$10.78	Add to Cart
28	4845	Rubber Bumper 10x625	$8.50	Add to Cart
29	NS	Kohler Nut
30	2013-4	Shield Side	$11.93	Add to Cart
31	2013-3	Muffler Heat Shield	$39.91	Add to Cart
32	NS	Oxygen Sensor (Kohler 25 418 07-S)
33	NS	Muffler (Kohler 24 786 33-S)
34	NS	27 HP Engine, EFI (Pulse Pump) (Kohler, Spec. # ECH 749-3064)
35	6029	Hose Clamp 11316 234	$3.26	Add to Cart
36	2012-2	Air Intake Hose	$22.22	Add to Cart
37	7026-4	Remote Precleaner	$57.52	Add to Cart
38	2088-10	Air Cleaner Assembly	$197.61	Add to Cart
39	5091-19	Air Flow Indicator WBracket Vacuum 15H2O	$30.89	Add to Cart
40	M258	Vacuum Hose	$3.26	Add to Cart
41	5091-5	18 Pipe Thread Female WBarb	$10.01	Add to Cart
42	5088-3	Air Cleaner Band	$21.49	Add to Cart
43	2090-3	Safety Filter Insert	$33.70	Add to Cart
44	2090-1	Air Cleaner Cartridge	$52.14	Add to Cart
45	2088-2	Air Cleaner Cap	$33.66	Add to Cart
46	2090-2	Vacuator Valve	$11.68	Add to Cart
47	2108-4	Control Cable 68	$16.32	Add to Cart
48	8123-3	Insultherm 38x10	$5.62	Add to Cart
49	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
50	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
51	5108-11	Friction Washer 062	$1.44	Add to Cart
52	7108	Control Assembly	$30.21	Add to Cart
	2108-5	NR Throttle CntrlCable Assy	$71.61	Add to Cart
53	5108-8	Control Bracket	$9.26	Add to Cart
54	5108-10	Friction Washer 125	$1.98	Add to Cart
55	5108-7	Control Lock Tab	$2.52	Add to Cart
56	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F094	832x12 PTHMS	$0.18	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F439	1213x134 Hex Bolt	$2.45	Add to Cart
	F482	832 Nylock Nut	$0.17	Add to Cart
	F642	14x042 Belleville Washer	$4.12	Add to Cart
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
	M258	Vacuum Hose	$3.26	Add to Cart
