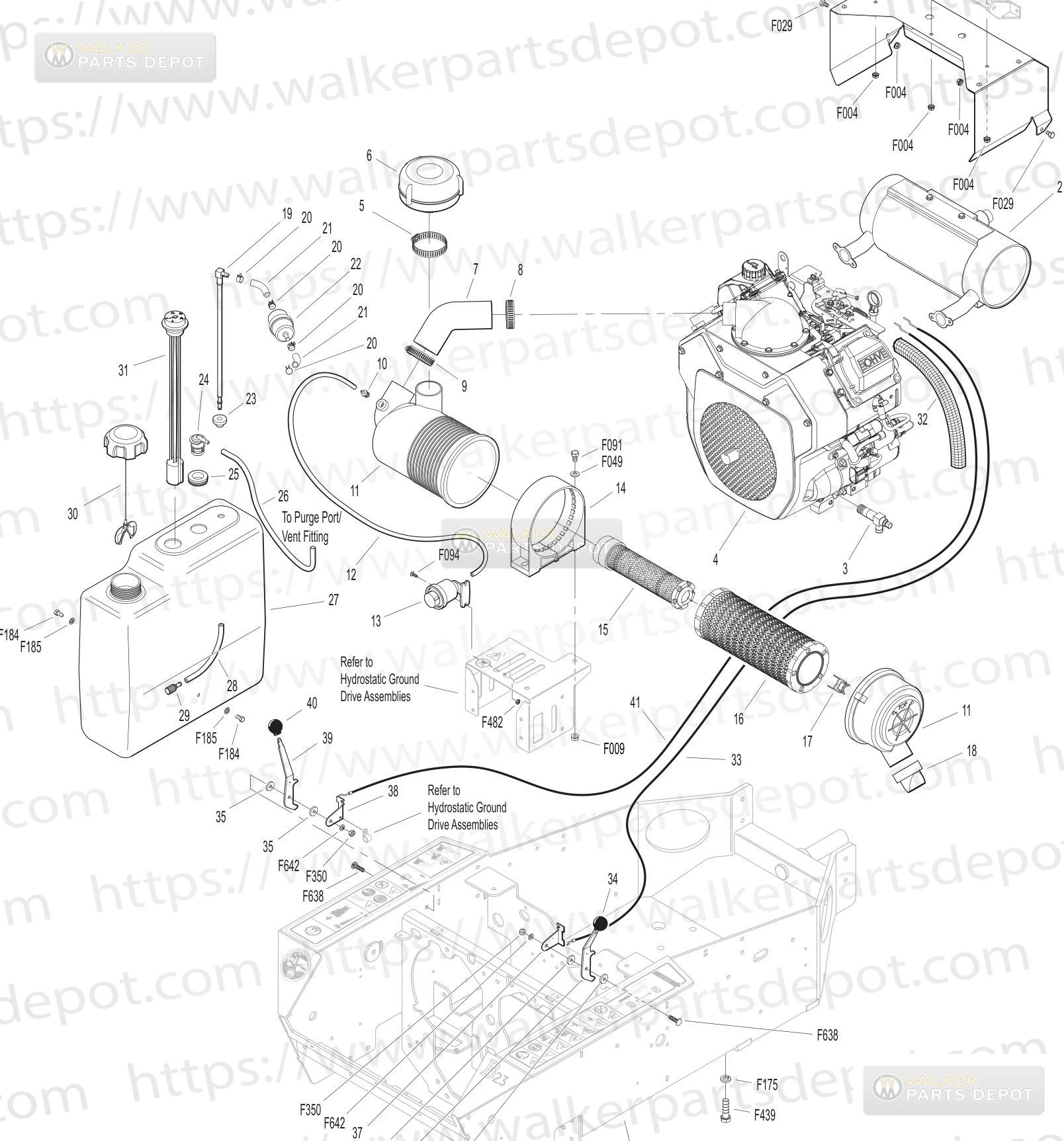

PARTS > MB MANUALS > 2024-12-19, 4000-47, Serial 184730-197179 > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	4013-18	Muffler Heat Shield	$69.93	Add to Cart
2	NS	Muffler
3	4010-1	Drain Valve 3818 NPTF	$16.50	Add to Cart
4	NS	23 HP Kohler Engine
5	7840	Hose Clamp 1516 214	$4.13	Add to Cart
6	7026-4	Remote Precleaner	$57.52	Add to Cart
7	6087-9	Air Intake HoseMB23	$36.26	Add to Cart
8	7840-5	Hose Clamp 156 250	$3.84	Add to Cart
9	6029	Hose Clamp 11316 234	$3.26	Add to Cart
10	5091-0	18 Pipe Thread Male WBarb	$7.26	Add to Cart
11	4090-1	Air Cleaner	$119.28	Add to Cart
12	M258	Vacuum Hose	$3.26	Add to Cart
13	5091-19	Air Flow Indicator WBracket Vacuum 15H2O	$30.89	Add to Cart
14	5088-4	Air Cleaner Band	$17.15	Add to Cart
15	5090-7	Safety Filter Insert	$51.24	Add to Cart
16	5090-8	Air Cleaner Cartridge	$41.32	Add to Cart
17	5088-5	Air Cleaner Draw Latch	$12.20	Add to Cart
18	5090-2	Vacuator Valve	$12.75	Add to Cart
19	5083-8	Tank Tube 13	$14.04	Add to Cart
20	5879-3	Hose Clamp 12	$0.65	Add to Cart
21	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
22	5020-3	Fuel FilterEFI 912 Micron	$17.92	Add to Cart
23	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
24	8043-8	Roll Over Valve	$12.21	Add to Cart
25	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
26	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
27	8055-1	Fuel Tank Kit Evap 47 Gallon	$224.28	Add to Cart
28	5086-7	NR Hose 14x6	$12.40	Add to Cart
29	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
30	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
31	8055-2	Fuel Tank Gauge 47 Gallon Includes Grommet	$49.83	Add to Cart
32	8123-3	Insultherm 38x10	$5.62	Add to Cart
33	5108-28	Choke Cable 3212	$21.09	Add to Cart
34	5108-6	NR Choke Cntrl KnobBlack	$5.74	Add to Cart
35	5108-10	Friction Washer 125	$1.98	Add to Cart
36	5108-22	Control Lever, Choke
37	5108-38	Control BracketMB23	$8.75	Add to Cart
38	5108-21	Control BracketMRMB27	$5.66	Add to Cart
39	5108-20	Control LeverThrottleMRMB27	$7.27	Add to Cart
40	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
41	5108-24	Throttle Cable 56	$19.86	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F049	516 SAE Washer	$0.18	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F094	832x12 PTHMS	$0.18	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
	F439	1213x134 Hex Bolt	$2.45	Add to Cart
	F482	832 Nylock Nut	$0.17	Add to Cart
	F638	1420x1 Carriage Bolt	$0.77	Add to Cart
	F642	14x042 Belleville Washer	$4.12	Add to Cart
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
	M258	Vacuum Hose	$3.26	Add to Cart
