Part Lookup Tool

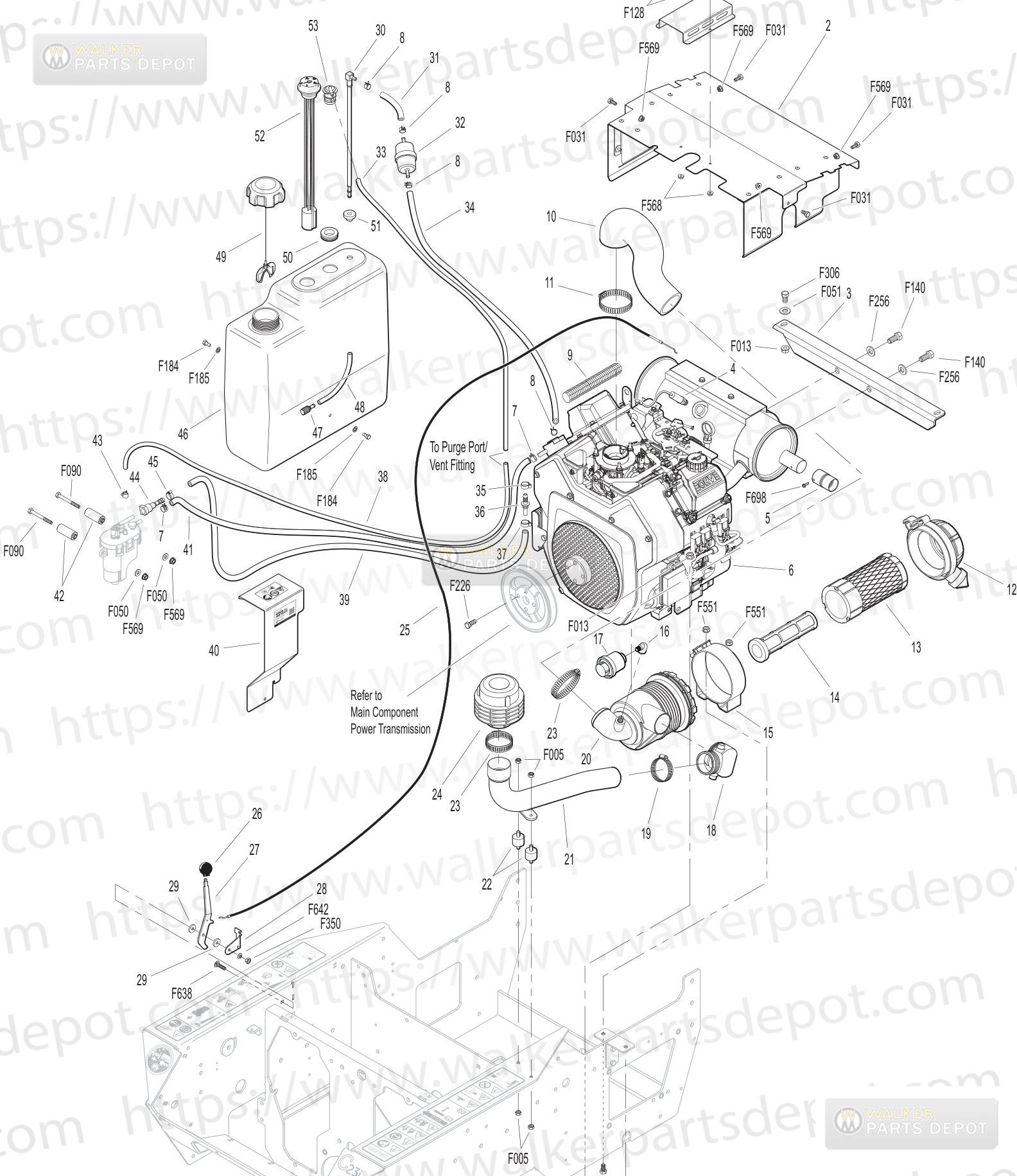

PARTS > MC MANUALS > 2025-04-08, 6000-49, Serial 191079-AND ON > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	6013-41	Heat Shield O2 CoverMC23i Kit	$23.69	Add to Cart
2	6013-38	Heat Shield MC23i	$127.89	Add to Cart
3	6342-6	Motor Brace
4	NS	Sensor, Oxygen (Kohler)
5	8014-15	Extended Spark Arrestor
6	NS	23 HP Engine, EFI (Kohler)
7	5879-2	Hose Clamp 716 Silver	$1.75	Add to Cart
8	5879-3	Hose Clamp 12	$0.65	Add to Cart
9	8123-3	Insultherm 38x10	$5.62	Add to Cart
10	6087-10	Air Intake Hose
11	6029	Hose Clamp 11316 234	$3.26	Add to Cart
12	2088-2	Air Cleaner Cap	$33.66	Add to Cart
13	2090-1	Air Cleaner Cartridge	$52.14	Add to Cart
14	2090-3	Safety Filter Insert	$33.70	Add to Cart
15	5088-3	Air Cleaner Band	$21.49	Add to Cart
16	5091-16	Street Elbow 9018x18	$5.54	Add to Cart
17	5091-18	Air Flow Indicator Vacuum 15 H2O	$24.68	Add to Cart
18	2090-4	Low Profile Precleaner Elbow
19	7840	Hose Clamp 1516 214	$4.13	Add to Cart
20	2090-21	Air Cleaner Assembly	$165.69	Add to Cart
21	7028-7	Precleaner Tube
22	7432	Shock Mount 10ODx75	$7.16	Add to Cart
23	7840-5	Hose Clamp 156 250	$3.84	Add to Cart
24	7026-3	Remote Precleaner	$71.69	Add to Cart
25	5108-39	Control Cable 31	$21.44	Add to Cart
26	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
27	5108-20	Control LeverThrottleMRMB27	$7.27	Add to Cart
28	5108-21	Control BracketMRMB27	$5.66	Add to Cart
29	5108-10	Friction Washer 125	$1.98	Add to Cart
30	5083-8	Tank Tube 13	$14.04	Add to Cart
31	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
32	5020-3	Fuel FilterEFI 912 Micron	$17.92	Add to Cart
33	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
34	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
35	5879-9	Stepless Ear ClampBlk 157	$3.58	Add to Cart
36	8046-14	Quick ConnectorMale 516	$3.64	Add to Cart
37	NS	Clamp (Kohler)
38	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
39	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
40	8018-9	Fuel Pump Module Cover
41	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
42	8018-8	Fuel Module Standoff
43	5879-4	Hose Clamp 716	$1.06	Add to Cart
44	8046-17	Quick Coupler Straight 516x516	$5.11	Add to Cart
45	5879-5	Stepless Ear Clamp 58	$3.38	Add to Cart
46	8055-1	Fuel Tank Kit Evap 47 Gallon	$224.28	Add to Cart
47	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
48	5086-7	NR Hose 14x6	$12.40	Add to Cart
49	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
50	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
51	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
52	8055-2	Fuel Tank Gauge 47 Gallon Includes Grommet	$49.83	Add to Cart
53	8043-8	Roll Over Valve	$12.21	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F013	3816 Whiz Locknut	$0.65	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F040	3816x112 Hex Bolt	$1.54	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F090	1420x212 Hex Bolt	$1.30	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F140	71614x1 Hex Bolt	$1.87	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F226	51618x78 Hex Bolt	$0.78	Add to Cart
	F256	716 SAE Washer	$0.50	Add to Cart
	F306	3816x34 Hex Bolt	$1.06	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
	F551	51618 Flange Top Lock Nut	$1.06	Add to Cart
	F568	1024 Flange Top Lock Nut	$1.56	Add to Cart
	F569	1420 Flange Top Lock Nut	$1.20	Add to Cart
	F638	1420x1 Carriage Bolt	$0.77	Add to Cart
	F642	14x042 Belleville Washer	$4.12	Add to Cart
	F698	#8 x 1/2 Hex Head Drilling Screw
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
