Part Lookup Tool

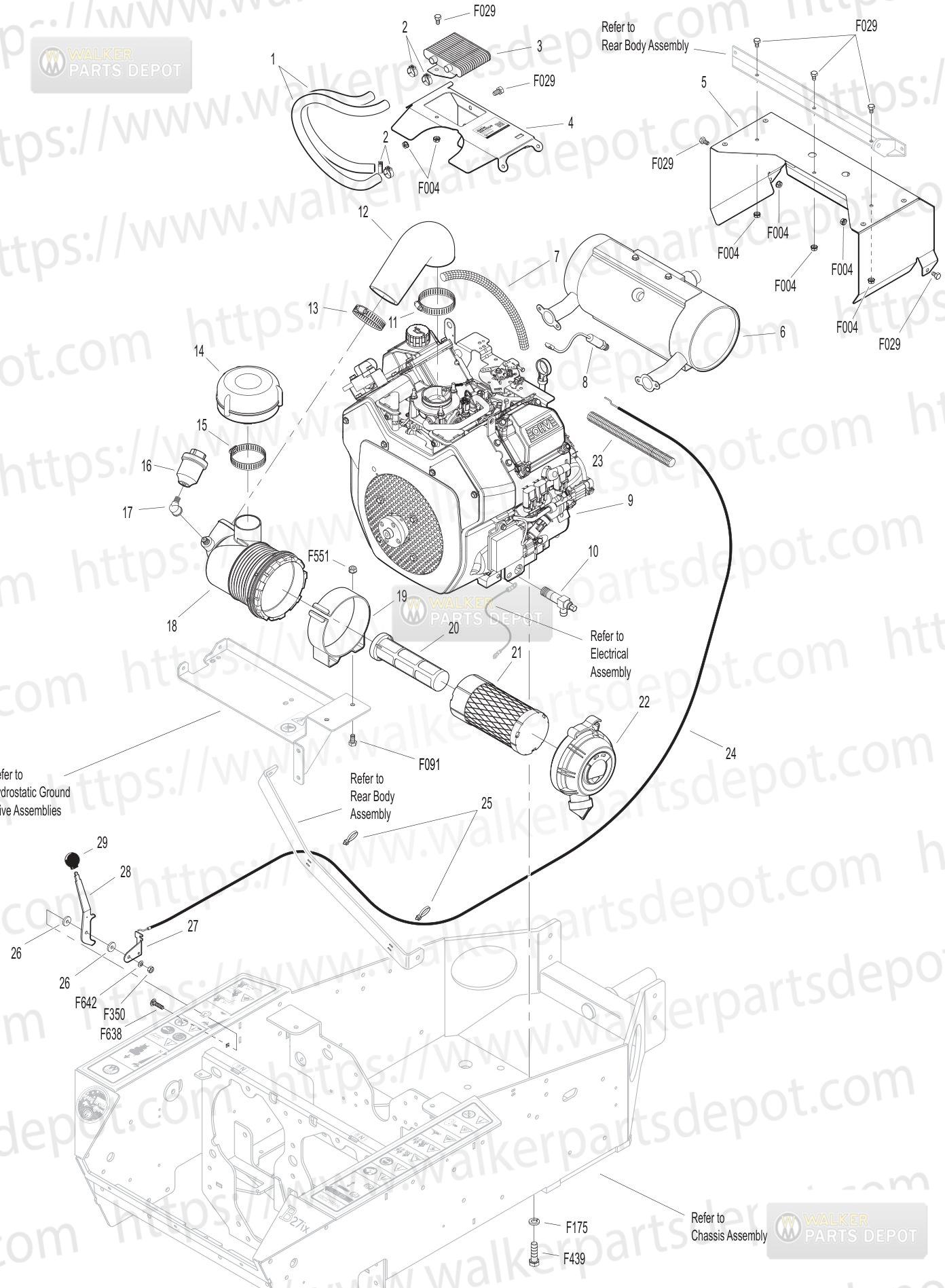

PARTS > MB MANUALS > 2026-04-01, 4000-50, Serial 196174-AND ON > Engine Group:

Diagram #	Part #	Description	Price	Add to Cart
1	NS	Oil Cooler Hose 2**
2	NS	Clamp 4**
3	NS	Oil Cooler 1**
4	8016-15	Oil Cooler Mount
5	4013-18	Muffler Heat Shield	$69.93	Add to Cart
6	NS	Muffler
7	M265	Insultherm (3/8 x 9") (Pulse Pump Vacuum Line)
8	NS	Sensor, Oxygen (Rehlko/Kohler)
9	NS	27 HP Engine, EFI (Rehlko/Kohler)
10	4010-1	Drain Valve 3818 NPTF	$16.50	Add to Cart
11	6029	Hose Clamp 11316 234	$3.26	Add to Cart
12	2012-2	Air Intake Hose	$22.22	Add to Cart
13	7840-5	Hose Clamp 156 250	$3.84	Add to Cart
14	7026-4	Remote Precleaner	$57.52	Add to Cart
15	7840	Hose Clamp 1516 214	$4.13	Add to Cart
16	5091-18	Air Flow Indicator Vacuum 15 H2O	$24.68	Add to Cart
17	5091-16	Street Elbow 9018x18	$5.54	Add to Cart
18	2090-21	Air Cleaner Assembly	$165.69	Add to Cart
19	5088-3	Air Cleaner Band	$21.49	Add to Cart
20	2090-3	Safety Filter Insert	$33.70	Add to Cart
21	2090-1	Air Cleaner Cartridge	$52.14	Add to Cart
22	2088-2	Air Cleaner Cap	$33.66	Add to Cart
23	8123-3	Insultherm 38x10	$5.62	Add to Cart
24	5108-24	Throttle Cable 56	$19.86	Add to Cart
25	5975-3	Cable Tie 50x7	$0.36	Add to Cart
26	5108-10	Friction Washer 125	$1.98	Add to Cart
27	5108-21	Control BracketMRMB27	$5.66	Add to Cart
28	5108-20	Control LeverThrottleMRMB27	$7.27	Add to Cart
29	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F350	1420 LP Nylock	$0.65	Add to Cart
	F439	1213x134 Hex Bolt	$2.45	Add to Cart
	F551	51618 Flange Top Lock Nut	$1.06	Add to Cart
	F638	1420x1 Carriage Bolt	$0.77	Add to Cart
	F642	14x042 Belleville Washer	$4.12	Add to Cart
