Part Lookup Tool

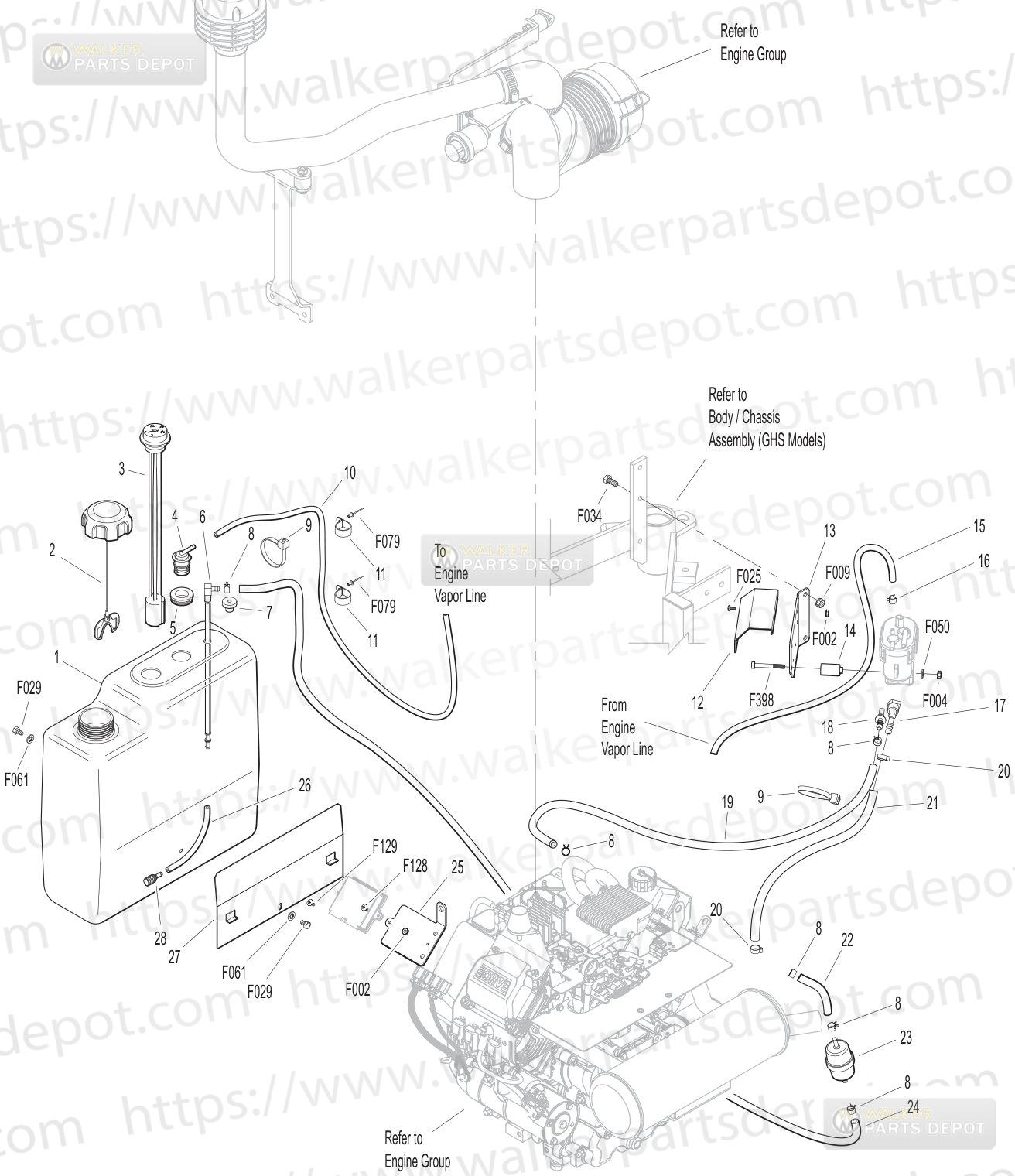

PARTS > MT MANUALS > 2020-01-08, 8000-37, Serial 159728-168490 > Engine Group (Fuel Components):

Diagram #	Part #	Description	Price	Add to Cart
1	8055-1	Fuel Tank Kit Evap 47 Gallon	$224.28	Add to Cart
2	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
3	8055-2	Fuel Tank Gauge 47 Gallon Includes Grommet	$49.83	Add to Cart
4	8043-8	Roll Over Valve	$12.21	Add to Cart
5	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
6	5083-8	Tank Tube 13	$14.04	Add to Cart
7	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
8	5879-3	Hose Clamp 12	$0.65	Add to Cart
9	5975-3	Cable Tie 50x7	$0.36	Add to Cart
10	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
11	7833	Cable Clamp 78x14	$2.72	Add to Cart
12	8018-4	Fuel Module Cover	$9.84	Add to Cart
13	8018-7	Fuel Module Bracket	$12.46	Add to Cart
14	8018-2	Fuel Bracket Spacer	$11.31	Add to Cart
15	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
16	5879-4	Hose Clamp 716	$1.06	Add to Cart
17	8046-16	Quick Connector 516 x 51645	$5.40	Add to Cart
18	8046-14	Quick ConnectorMale 516	$3.64	Add to Cart
19	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
20	5879-5	Stepless Ear Clamp 58	$3.38	Add to Cart
21	M247	Fuel Line Nitrile516	$13.01	Add to Cart
22	NS	Fuel Line, Engine (Kohler)
23	5020-3	Fuel FilterEFI 912 Micron	$17.92	Add to Cart
24	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
25	8016-6	ECU Mount	$13.53	Add to Cart
26	5086-7	NR Hose 14x6	$12.40	Add to Cart
27	8023	Fuel Tank Support	$23.72	Add to Cart
28	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F398	1420x2 Hex Bolt	$1.06	Add to Cart
	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
	M247	Fuel Line Nitrile516	$13.01	Add to Cart
