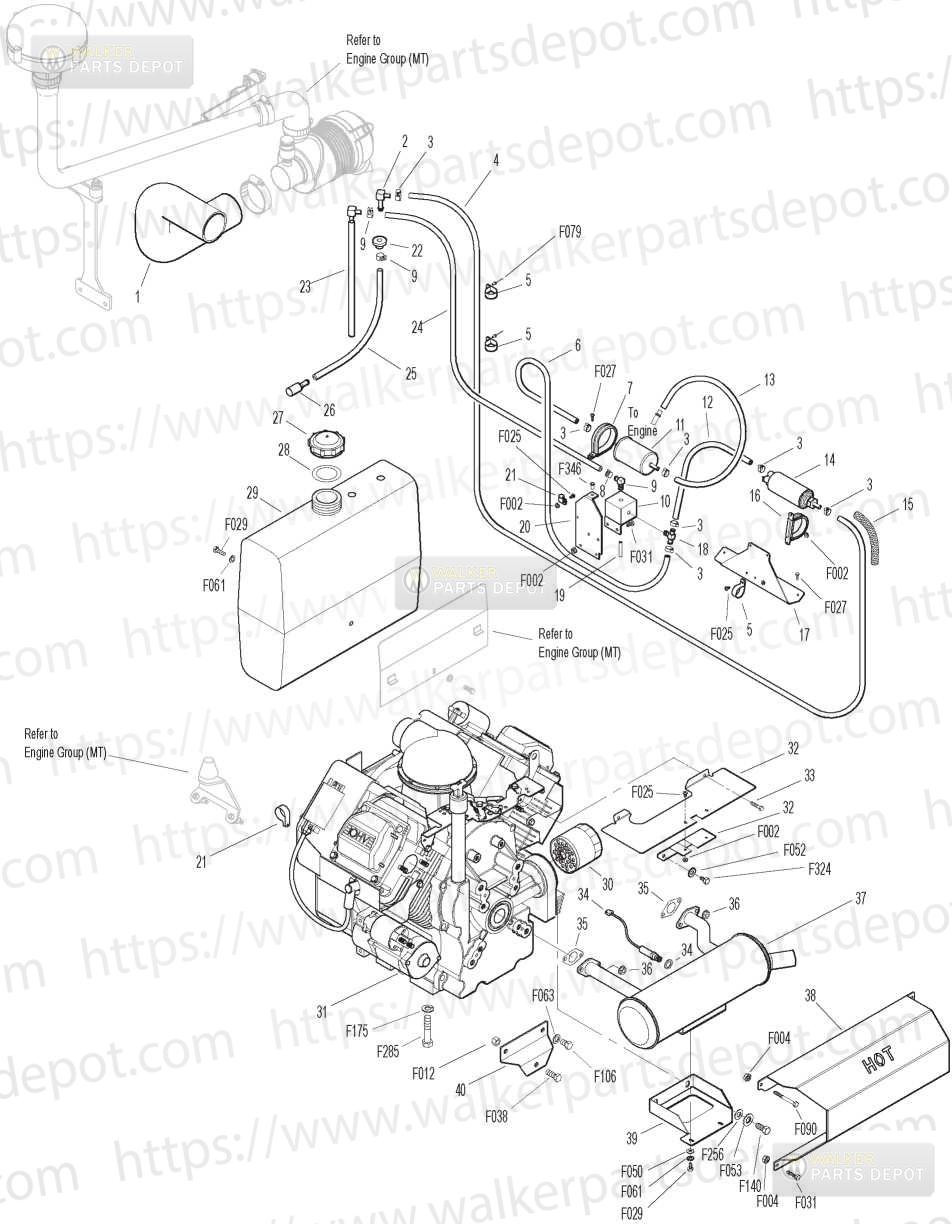

PARTS > MT MANUALS > 2003-01-31, 8000-7, Serial 54651-66326 > Engine Group - MT EFI:

Diagram #	Part #	Description	Price	Add to Cart
1	8026-10	Air Hose Clnr TEFIMTL	$45.19	Add to Cart
2	5083-2	Tank Tube Elbow	$11.19	Add to Cart
3	5879-5	Stepless Ear Clamp 58	$3.38	Add to Cart
4	8026-3	Fuel Line 516x32 Tank To Pump	$34.17	Add to Cart
5	7833	Cable Clamp 78x14	$2.72	Add to Cart
6	8026-5	HP Fuel Line 516x21 Regulator To Filter	$13.31	Add to Cart
7	8026-14	NR Clamp Loop Style	$5.66	Add to Cart
8	5879-3	Hose Clamp 12	$0.65	Add to Cart
9	NS	Tee Fitting (Kohler)
10	NS	Fuel Regulator (Kohler)
11	NS	Fuel Filter (Kohler)
12	8026-4	HP Fuel Line 516x8 Pump To Regulator	$9.91	Add to Cart
13	8026-6	NR HP Fuel Line 516x13 Filter To Engine	$11.66	Add to Cart
14	NS	Fuel Pump (Kohler)
15	8123	Insulating Sleeve 38x6	$3.26	Add to Cart
16	NS	Clamp (Kohler)
17	7014-3	NR Fuel Pump Mount Plate	$20.79	Add to Cart
18	NS	Tee Fitting (Kohler)
19	8026-8	Vent Tube Regulator	$3.19	Add to Cart
20	7014-2	Regulator/Filter Mount
21	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
22	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
23	7046-1	Fuel Return Tube	$8.30	Add to Cart
24	8026-7	NR Hose 14x16	$7.75	Add to Cart
25	5086	NR Hose 14x18	$14.40	Add to Cart
26	5020-1	Fuel Filter, In Tank
27	5082	Fuel Tank Cap (Includes Item # 28)
28	5082-2	NR Fuel Cap Seal	$2.16	Add to Cart
29	8046-7	Fuel Tank, 5 Gallon, Gas (Includes Items # 27 & 28)
30	NS	Oil Filter (Kohler 1205001)
31	NS	26-hp EFI Engine
32	8530-9	NR Grass Shield MufflerEFI	$28.56	Add to Cart
33	NS	Screw (Kohler M645016-S)
34	NS	Sensor, Oxygen (Kohler) (Includes Item # 37)
35	NS	Gasket (Kohler)
36	NS	Nut (Kohler M-0841080)
37	8013-11	MufflerEFI	$181.65	Add to Cart
38	8013-13	Heat Shield Mfflr T/EFI	$60.10	Add to Cart
39	8013-18	Muffler Brace TEFI	$27.59	Add to Cart
40	8021	Engine Brace	$9.89	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F027	1024x58 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F052	516 Ext Star Lock Wshr	$0.18	Add to Cart
	F053	716 Int Star Lock Wshr	$0.65	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F090	1420x212 Hex Bolt	$1.30	Add to Cart
	F106	3816x58 Hex Bolt	$0.94	Add to Cart
	F140	71614x1 Hex Bolt	$1.87	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F256	716 SAE Washer	$0.50	Add to Cart
	F285	1213x112 Hex Bolt	$2.45	Add to Cart
	F324	M8x125x12 Hex Bolt	$1.18	Add to Cart
	F346	Knurled Threaded Insert 1024	$1.87	Add to Cart
