Part Lookup Tool

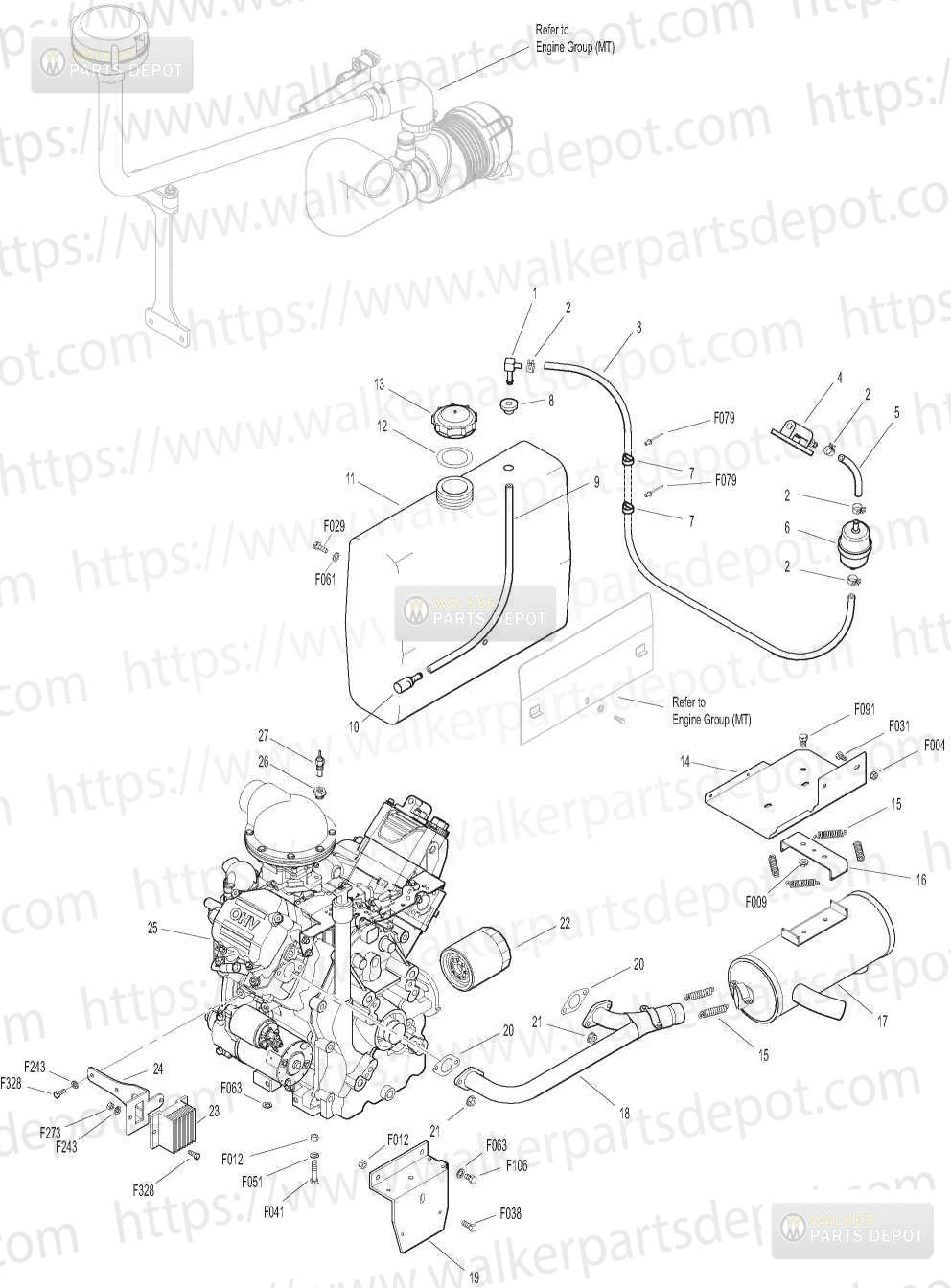

PARTS > MT MANUALS > 2004-01-04, 8000-10, Serial 66327-75987 > Engine Group - MTL:

Diagram #	Part #	Description	Price	Add to Cart
1	5083-2	Tank Tube Elbow	$11.19	Add to Cart
2	5879-3	Hose Clamp 12	$0.65	Add to Cart
3	8015-3	NR Hose 14x2412	$15.77	Add to Cart
4	NS	Fuel Pump (Kohler)
5	NS	Fuel Line (Kohler)
6	5020	Fuel FilterNon EFI	$5.94	Add to Cart
7	5832	Cable Clamp 12 203 Hole	$1.87	Add to Cart
8	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
9	5086	NR Hose 14x18	$14.40	Add to Cart
10	5020-1	Fuel Filter, In Tank
11	8046-9	Fuel Tank, 5 Gallon, Gas (Includes Items# 12& 13)
12	5082-2	NR Fuel Cap Seal	$2.16	Add to Cart
13	5082	Fuel Tank Cap (Includes Item # 12)
14	8013-81	Muffler Heat ShieldMTL	$20.53	Add to Cart
15	8013-16	NR Mounting Spg MufflerMTL	$13.01	Add to Cart
16	8013-15	Hanger Brckt MufflerMTL	$14.70	Add to Cart
17	8013-12	Muffler MTL	$272.94	Add to Cart
18	8013-17	Exhaust Pipe, Muffler
19	7958-2	Resistor Mount Plate	$20.11	Add to Cart
20	NS	Gasket (Kohler)
21	NS	Nut (Kohler)
22	NS	Oil Filter (Kohler 1205001)
23	NS	Regulator (Kohler)
24	8012-3	Regulator Mount04	$12.12	Add to Cart
25	NS	25-hp Engine
26	7306-12	NR Temp Sender Adapter	$6.31	Add to Cart
27	7306-15	Water Temperature Sender	$42.86	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F012	3816 Keps Nut	$0.79	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F038	3816x1 Hex Bolt	$1.06	Add to Cart
	F041	3816x134 Hex Bolt	$1.87	Add to Cart
	F051	38 SAE Washer	$0.65	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F063	38 Int Star Lock Washer	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F091	51618x58 Hex Bolt	$0.65	Add to Cart
	F106	3816x58 Hex Bolt	$0.94	Add to Cart
	F243	M6 Split Lock Washer	$0.18	Add to Cart
	F273	M6x10 Nut	$0.22	Add to Cart
	F328	M6x10x16 Hex Bolt	$0.72	Add to Cart
