Part Lookup Tool

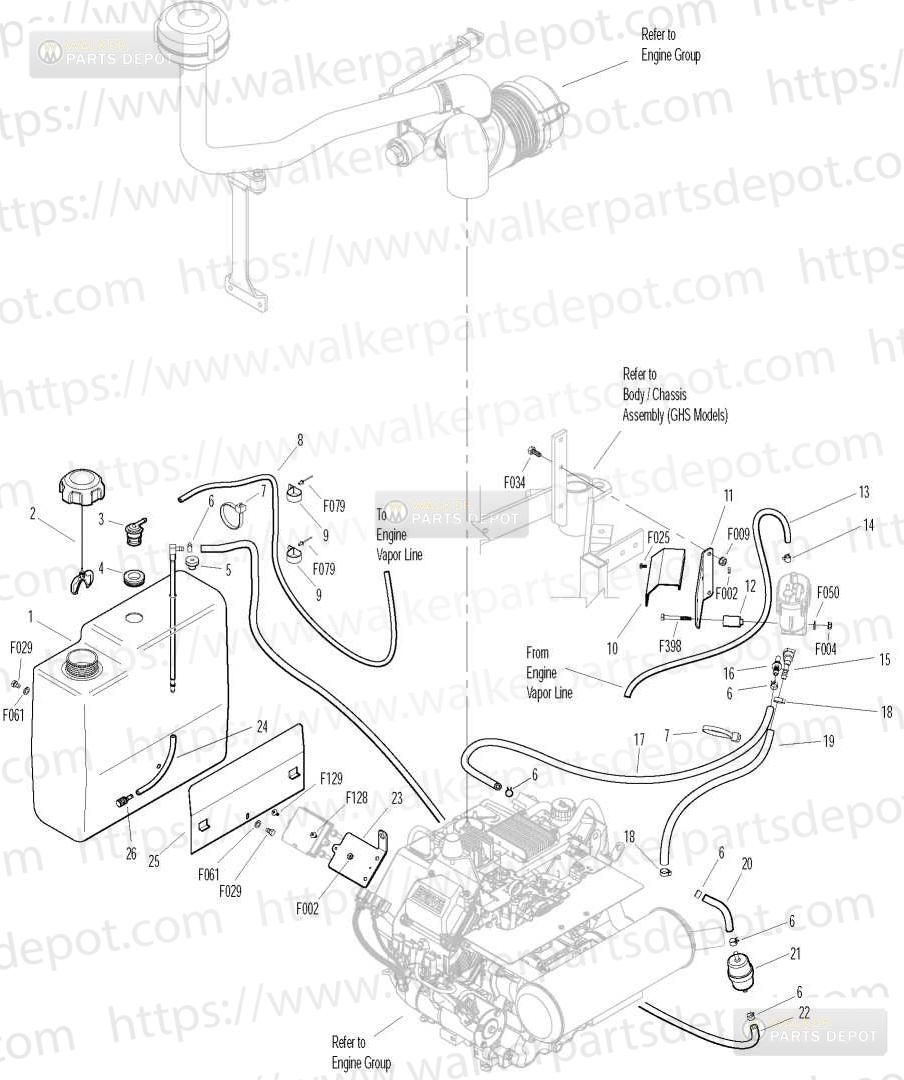

PARTS > MT MANUALS > 2013-11-18, 8000-18, Serial 125598-134120 > Engine Group Fuel Components:

Diagram #	Part #	Description	Price	Add to Cart
1	8046-3	Fuel Tank, 4.7 Gallon, Gas (Includes Items # 5, 6 & 18)
2	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
3	8043-8	Roll Over Valve	$12.21	Add to Cart
4	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
5	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
6	5879-3	Hose Clamp 12	$0.65	Add to Cart
7	5975-3	Cable Tie 50x7	$0.36	Add to Cart
8	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
9	7833	Cable Clamp 78x14	$2.72	Add to Cart
10	8018-4	Fuel Module Cover	$9.84	Add to Cart
11	8018-1	Fuel Module Bracket	$12.12	Add to Cart
12	8018-2	Fuel Bracket Spacer	$11.31	Add to Cart
13	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
14	5879-4	Hose Clamp 716	$1.06	Add to Cart
15	8046-16	Quick Connector 516 x 51645	$5.40	Add to Cart
16	8046-14	Quick ConnectorMale 516	$3.64	Add to Cart
17	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
18	5879-5	Stepless Ear Clamp 58	$3.38	Add to Cart
19	M247	Fuel Line Nitrile516	$13.01	Add to Cart
20	NS	Fuel Line, Engine (Kohler)
21	5020	Fuel FilterNon EFI	$5.94	Add to Cart
22	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
23	8016-6	ECU Mount	$13.53	Add to Cart
24	5086-7	NR Hose 14x6	$12.40	Add to Cart
25	8023	Fuel Tank Support	$23.72	Add to Cart
26	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F398	1420x2 Hex Bolt	$1.06	Add to Cart
1	8046-3	Fuel Tank, 4.7 Gallon, Gas (Includes Items # 5, 6 & 18)
2	5082-4	214 Ratchet Fuel Cap EPA	$31.55	Add to Cart
3	8043-8	Roll Over Valve	$12.21	Add to Cart
4	5977-7	Roll Over Grommet 900x112	$3.43	Add to Cart
5	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
6	5879-3	Hose Clamp 12	$0.65	Add to Cart
7	5975-3	Cable Tie 50x7	$0.36	Add to Cart
8	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
9	7833	Cable Clamp 78x14	$2.72	Add to Cart
10	8018-4	Fuel Module Cover	$9.84	Add to Cart
11	8018-1	Fuel Module Bracket	$12.12	Add to Cart
12	8018-2	Fuel Bracket Spacer	$11.31	Add to Cart
13	M113	Fuel Line 316 Sold By The Foot	$2.88	Add to Cart
14	5879-4	Hose Clamp 716	$1.06	Add to Cart
15	8046-16	Quick Connector 516 x 51645	$5.40	Add to Cart
16	8046-14	Quick ConnectorMale 516	$3.64	Add to Cart
17	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
18	5879-5	Stepless Ear Clamp 58	$3.38	Add to Cart
19	M247	Fuel Line Nitrile516	$13.01	Add to Cart
20	NS	Fuel Line, Engine (Kohler)
21	5020	Fuel FilterNon EFI	$5.94	Add to Cart
22	M246	Fuel Line Nitrile 14 Sold By The Foot	$7.40	Add to Cart
23	8016-6	ECU Mount	$13.53	Add to Cart
24	5086-7	NR Hose 14x6	$12.40	Add to Cart
25	8023	Fuel Tank Support	$23.72	Add to Cart
26	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F029	1420x12 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F079	66AAD Alum Pop Rivet 316 Diax 38 Grip	$0.65	Add to Cart
	F128	1024x38 PTHMS	$0.29	Add to Cart
	F129	1024x12 PTHMS	$0.34	Add to Cart
	F398	1420x2 Hex Bolt	$1.06	Add to Cart
