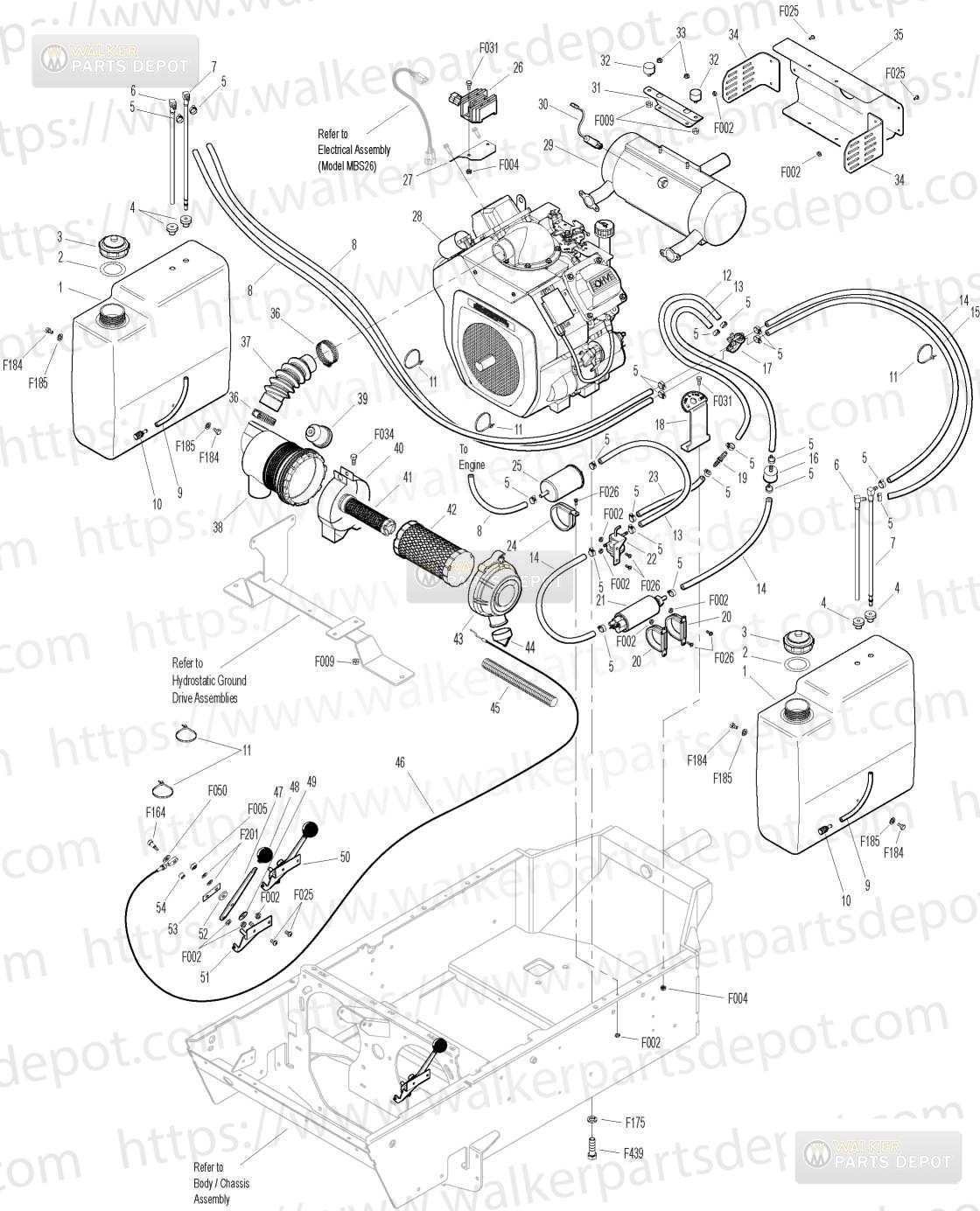

PARTS > MH MANUALS > 2010-09-15, 2000-2, Serial 105258- 124881 > Engine Group MBS26:

Diagram #	Part #	Description	Price	Add to Cart
1	8046-11	Fuel Tank, 4.7 Gallon, Gas (Includes Item # 3)
2	5082-2	NR Fuel Cap Seal	$2.16	Add to Cart
3	5082	Fuel Tank Cap (Includes Item # 2)
4	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
5	5879-5	Stepless Ear Clamp 58	$3.38	Add to Cart
6	7046-1	Fuel Return Tube	$8.30	Add to Cart
7	5083-8	Tank Tube 13	$14.04	Add to Cart
8	7018-3	Hose 516x46	$18.00	Add to Cart
9	5086-7	NR Hose 14x6	$12.40	Add to Cart
10	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
11	5975-3	Cable Tie 50x7	$0.36	Add to Cart
12	7015-16	NR Hose 516x1412	$17.30	Add to Cart
13	7018	Hose 516x9	$7.08	Add to Cart
14	7018-1	Hose 516x10	$7.46	Add to Cart
15	7018-2	Hose 516x1212	$8.45	Add to Cart
16	NS	Filter (Kohler)
17	2010-6	Fuel Valve	$70.27	Add to Cart
18	2010-2	Fuel Transfer Mount	$13.35	Add to Cart
19	2010-7	Hose Reducer 5 16 1 4	$15.55	Add to Cart
20	NS	Clamp (Kohler)
21	NS	Fuel Pump (Kohler)
22	NS	Fuel Regulator (Kohler)
23	5086-9	NR Hose 14x5	$5.04	Add to Cart
24	8026-14	NR Clamp Loop Style	$5.66	Add to Cart
25	NS	Filter (Kohler)
26	NS	Rectifier
27	8016-4	Regulator Mount	$9.90	Add to Cart
28	NS	27 HP Engine (Kohler)
29	NS	Muffler
30	NS	Oxygen Sensor (Kohler)
31	2104	Body Support	$10.82	Add to Cart
32	4845	Rubber Bumper 10x625	$8.50	Add to Cart
33	NS	Kohler Nut
34	2013-4	Shield Side	$11.93	Add to Cart
35	2013-3	Muffler Heat Shield	$39.91	Add to Cart
36	7840	Hose Clamp 1516 214	$4.13	Add to Cart
37	2012-1	NR Air Intake Hose	$14.37	Add to Cart
38	2088-10	Air Cleaner Assembly	$197.61	Add to Cart
39	5091-4	Indicator Nipple	$6.00	Add to Cart
40	2088-1	Air Cleaner Band
41	2090-3	Safety Filter Insert	$33.70	Add to Cart
42	2090-1	Air Cleaner Cartridge	$52.14	Add to Cart
43	2088-2	Air Cleaner Cap	$33.66	Add to Cart
44	2090-2	Vacuator Valve	$11.68	Add to Cart
45	8123	Insulating Sleeve 38x6	$3.26	Add to Cart
46	2108-4	Control Cable 68	$16.32	Add to Cart
47	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
48	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
49	5108-11	Friction Washer 062	$1.44	Add to Cart
50	7108	Control Assembly	$30.21	Add to Cart
	2108-3	NR Throttle CntrlCable Assy	$72.09	Add to Cart
51	5108-8	Control Bracket	$9.26	Add to Cart
52	5108-10	Friction Washer 125	$1.98	Add to Cart
53	5108-7	Control Lock Tab	$2.52	Add to Cart
54	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F026	1024x12 PPHMS	$0.18	Add to Cart
	F031	1420x58 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F439	1213x134 Hex Bolt	$2.45	Add to Cart
