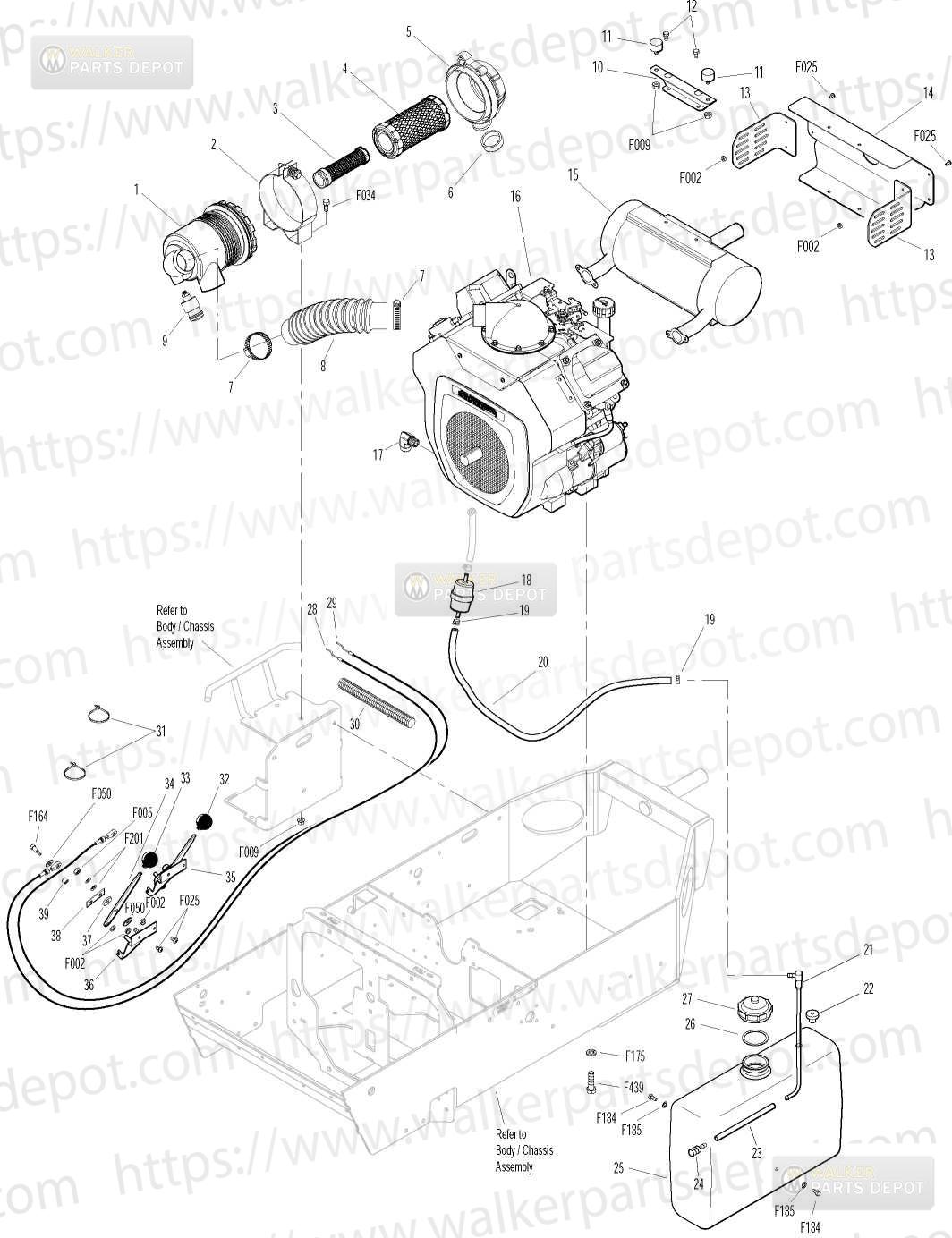

PARTS > MB MANUALS > 2010-04-01, 4000-4, Serial 104436-124799 > Engine Group Model MBK:

Diagram #	Part #	Description	Price	Add to Cart
1	4088-10	Air Cleaner Assembly	$216.72	Add to Cart
2	2088-1	Air Cleaner Band
3	2090-3	Safety Filter Insert	$33.70	Add to Cart
4	2090-1	Air Cleaner Cartridge	$52.14	Add to Cart
5	2088-2	Air Cleaner Cap	$33.66	Add to Cart
6	2090-2	Vacuator Valve	$11.68	Add to Cart
7	7840	Hose Clamp 1516 214	$4.13	Add to Cart
8	2012	NR Flex Hose 134x2	$21.08	Add to Cart
9	5091-11	Air Flow Indictor & Nipple
10	2104	Body Support	$10.82	Add to Cart
11	4845	Rubber Bumper 10x625	$8.50	Add to Cart
12	NS	Kohler Bolt
13	2013-4	Shield Side	$11.93	Add to Cart
14	2013-3	Muffler Heat Shield	$39.91	Add to Cart
15	NS	Muffler
16	NS	18 HP Engine (Kohler)
17	4010-5	38 NPT Street L	$10.06	Add to Cart
18	5020	Fuel FilterNon EFI	$5.94	Add to Cart
19	5879-3	Hose Clamp 12	$0.65	Add to Cart
20	5086-16	NR Hose 14x28	$10.70	Add to Cart
21	5083-6	Tank Tube Elbow
22	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
23	5086-7	NR Hose 14x6	$12.40	Add to Cart
24	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
25	4046	Fuel Tank, 3.0 Gal. Gas (Fuel Cap Centered) (Includes Items # 26 & 27)
26	5082-2	NR Fuel Cap Seal	$2.16	Add to Cart
27	5082	Fuel Tank Cap (Includes Item # 26)
28	4108-3	NR Control Cable 64	$16.08	Add to Cart
29	2108-4	Control Cable 68	$16.32	Add to Cart
30	8123	Insulating Sleeve 38x6	$3.26	Add to Cart
31	5975-3	Cable Tie 50x7	$0.36	Add to Cart
32	5108-6	NR Choke Cntrl KnobBlack	$5.74	Add to Cart
33	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
34	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
35	7108	Control Assembly	$30.21	Add to Cart
	4108-2	NR Throttle CntrlCable Assy	$53.99	Add to Cart
	4109-1	Choke Control and Cable Assembly (Includes Item # 32)
36	5108-8	Control Bracket	$9.26	Add to Cart
37	5108-10	Friction Washer 125	$1.98	Add to Cart
38	5108-7	Control Lock Tab	$2.52	Add to Cart
39	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F175	12 Split Lock Washer	$0.50	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F439	1213x134 Hex Bolt	$2.45	Add to Cart
