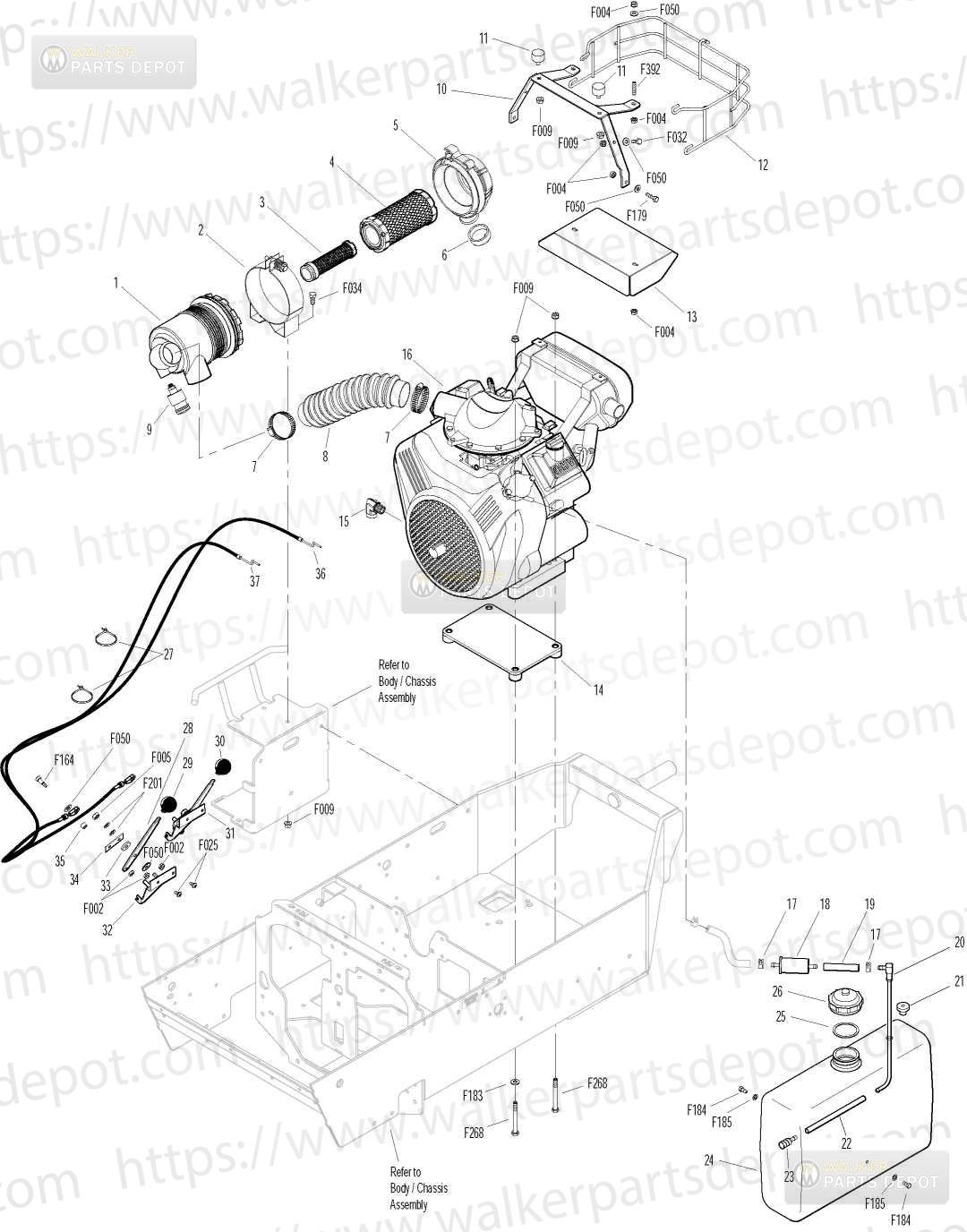

PARTS > MB MANUALS > 2010-04-01, 4000-4, Serial 104436-124799 > Engine Group Model MBV:

Diagram #	Part #	Description	Price	Add to Cart
1	4088-10	Air Cleaner Assembly	$216.72	Add to Cart
2	2088-1	Air Cleaner Band
3	2090-3	Safety Filter Insert	$33.70	Add to Cart
4	2090-1	Air Cleaner Cartridge	$52.14	Add to Cart
5	2088-2	Air Cleaner Cap	$33.66	Add to Cart
6	2090-2	Vacuator Valve	$11.68	Add to Cart
7	7840	Hose Clamp 1516 214	$4.13	Add to Cart
8	2012	NR Flex Hose 134x2	$21.08	Add to Cart
9	5091-11	Air Flow Indictor & Nipple
10	4104-1	NR Body Support	$22.37	Add to Cart
11	4845	Rubber Bumper 10x625	$8.50	Add to Cart
12	4013-1	NR Muffler Guard	$82.99	Add to Cart
13	4104-9	Heat ShieldAluminum	$52.92	Add to Cart
14	4300-14	Engine Spacer Plate	$97.82	Add to Cart
15	4010-5	38 NPT Street L	$10.06	Add to Cart
16	NS	18 HP Engine
17	5879-3	Hose Clamp 12	$0.65	Add to Cart
18	5020	Fuel FilterNon EFI	$5.94	Add to Cart
19	5086-8	NR Hose 14x212	$3.98	Add to Cart
20	5083-6	Tank Tube Elbow
21	5083-1	Bushing Rubber Fits 5083	$2.47	Add to Cart
22	5086-7	NR Hose 14x6	$12.40	Add to Cart
23	5020-2	Fuel Filter In Tank	$11.54	Add to Cart
24	4046	Fuel Tank, 3.0 Gal. Gas (Fuel Cap Centered) (Includes Items # 25 & 26)
25	5082-2	NR Fuel Cap Seal	$2.16	Add to Cart
26	5082	Fuel Tank Cap (Includes Item # 25)
27	5975-3	Cable Tie 50x7	$0.36	Add to Cart
28	5108-1	Control LeverThrottleChoke	$4.44	Add to Cart
29	5108-5	NR Throttle Cntrl KnobRed	$6.05	Add to Cart
30	5108-6	NR Choke Cntrl KnobBlack	$5.74	Add to Cart
31	7108	Control Assembly	$30.21	Add to Cart
	4108-4	NR Throttle CntrlCable Assy	$71.65	Add to Cart
	4109-4	NR Choke Cntrl Cable Assy	$41.78	Add to Cart
32	5108-8	Control Bracket	$9.26	Add to Cart
33	5108-10	Friction Washer 125	$1.98	Add to Cart
34	5108-7	Control Lock Tab	$2.52	Add to Cart
35	5172	Bearing Delrin 250x375x250 Length	$4.96	Add to Cart
36	4109-3	NR Control Cable 66	$17.58	Add to Cart
37	4109-5	NR Control Cable 71	$19.25	Add to Cart
	F002	1024 Keps Nut	$0.18	Add to Cart
	F004	1420 Keps Nut	$0.34	Add to Cart
	F005	1420 ESNA Nut	$0.34	Add to Cart
	F009	51618 Whiz Locknut	$0.50	Add to Cart
	F025	1024x38 PPHMS	$0.18	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F034	51618x34 Hex Bolt	$0.79	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F164	1024x14x38 SHL Bolt	$2.95	Add to Cart
	F179	1420x1 Hex Bolt	$0.65	Add to Cart
	F183	312x700x074 Washer	$0.58	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
	F201	SU F642 1 4 Belleville Spg Washer	$1.75	Add to Cart
	F268	51618x3 Hex Bolt	$1.97	Add to Cart
	F392	1420x1 Set ScrewSS Cup Point	$1.56	Add to Cart
