Part Lookup Tool

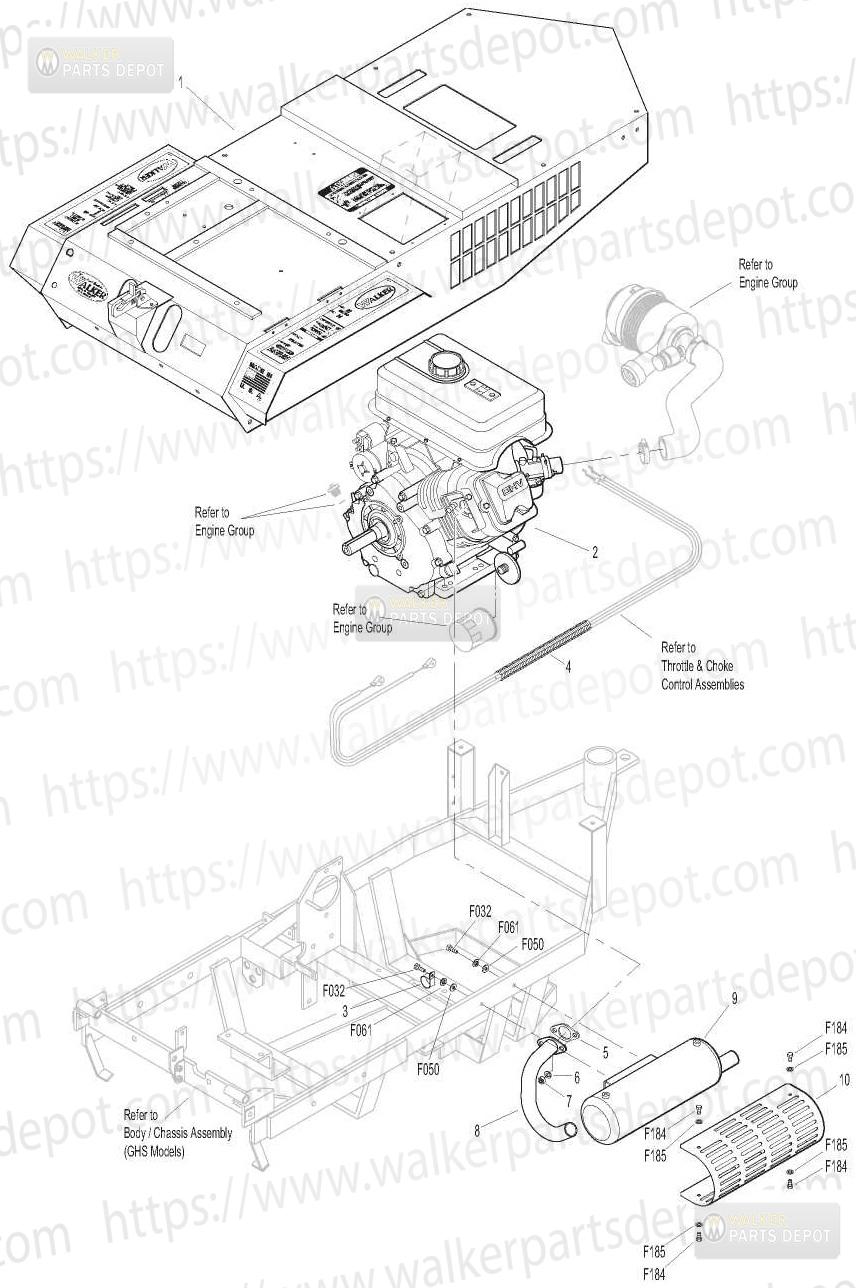

PARTS > MS MANUALS > 2004-03-02, 5000-12, Serial 60136-78321 > Engine Group Starting Serial 68821:

Diagram #	Part #	Description	Price	Add to Cart
1	5100-7	Welded Body S04	$523.11	Add to Cart
2	NS	13 hp Engine (Kawasaki FE4000, AS04)
3	7833	Cable Clamp 78x14	$2.72	Add to Cart
4	8123	Insulating Sleeve 38x6	$3.26	Add to Cart
5	NS	Gasket, Muffler (Kawasaki 11061-2078)
6	NS	Washer (Kawasaki 461F0800)
7	NS	Nut (Kawasaki 317R0800)
8	5013-4	(NR) Exhaust Pipe S/04	$42.17	Add to Cart
9	5013-2	Muffler S 04	$206.59	Add to Cart
10	5013-3	NR Muffler Heat Shield S04	$39.73	Add to Cart
	F032	1420x34 Hex Bolt	$0.50	Add to Cart
	F050	14 SAE Washer	$0.18	Add to Cart
	F061	14 Star Lock Wshr	$0.18	Add to Cart
	F184	1420x12 Hex Bolt SS	$1.30	Add to Cart
	F185	14 Int Star Lck WshrSS	$0.18	Add to Cart
